Linear Single-Shank 16-Channel Probe, 20 mm

16Sites
1Shanks
20mmShank Length
100µmSite Pitch
Part no.E16-20mm-100-177
Contents

16-site drug-delivery probe, 20 mm

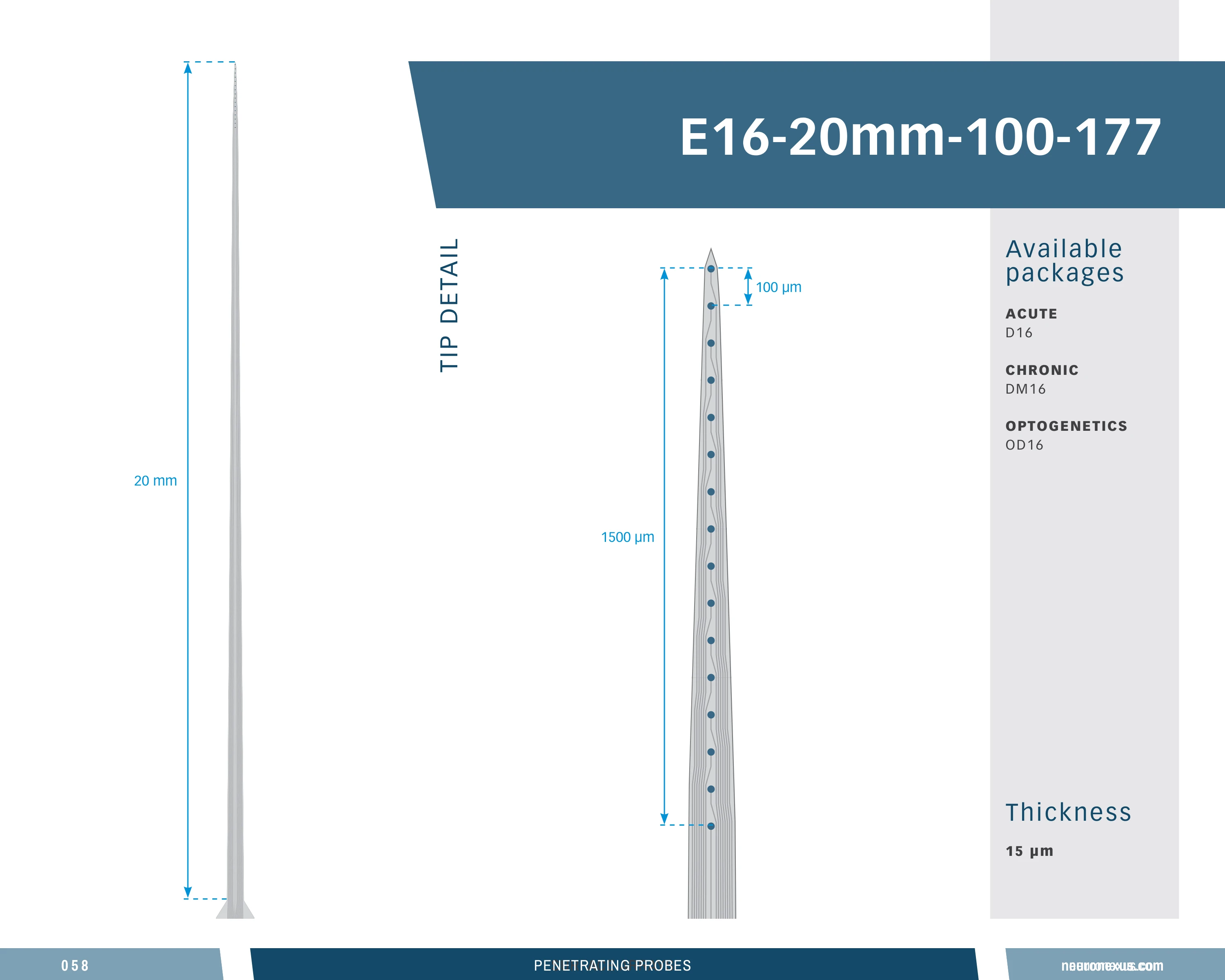

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 20 mm shanks (99th percentile of the 366 measured), a 1.52 mm-deep site array (70th percentile), 703 sites/mm² (75th percentile) and a 0.52 mm³ neural interface (35th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

e16_20mm_100_177

Linear Single-Shank 16-Channel Probe, 20 mmSKU prb_dde--e16_20mm_100_177

12 specs

Channels16
Shanks1
Shank length20 mm
Site area177 µm²
Site pitch100 µm
Vertical span1515 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.519 mm³ (higher than 35% of 369 designs)
Site coverage density703.5 sites/mm² (higher than 75% of 369 designs)
Brain coverage density30.8 sites/mm³ (higher than 28% of 369 designs)
Linear Single-Shank 16-Channel Probe, 20 mmSKU prb_dde--e16_20mm_100_177
