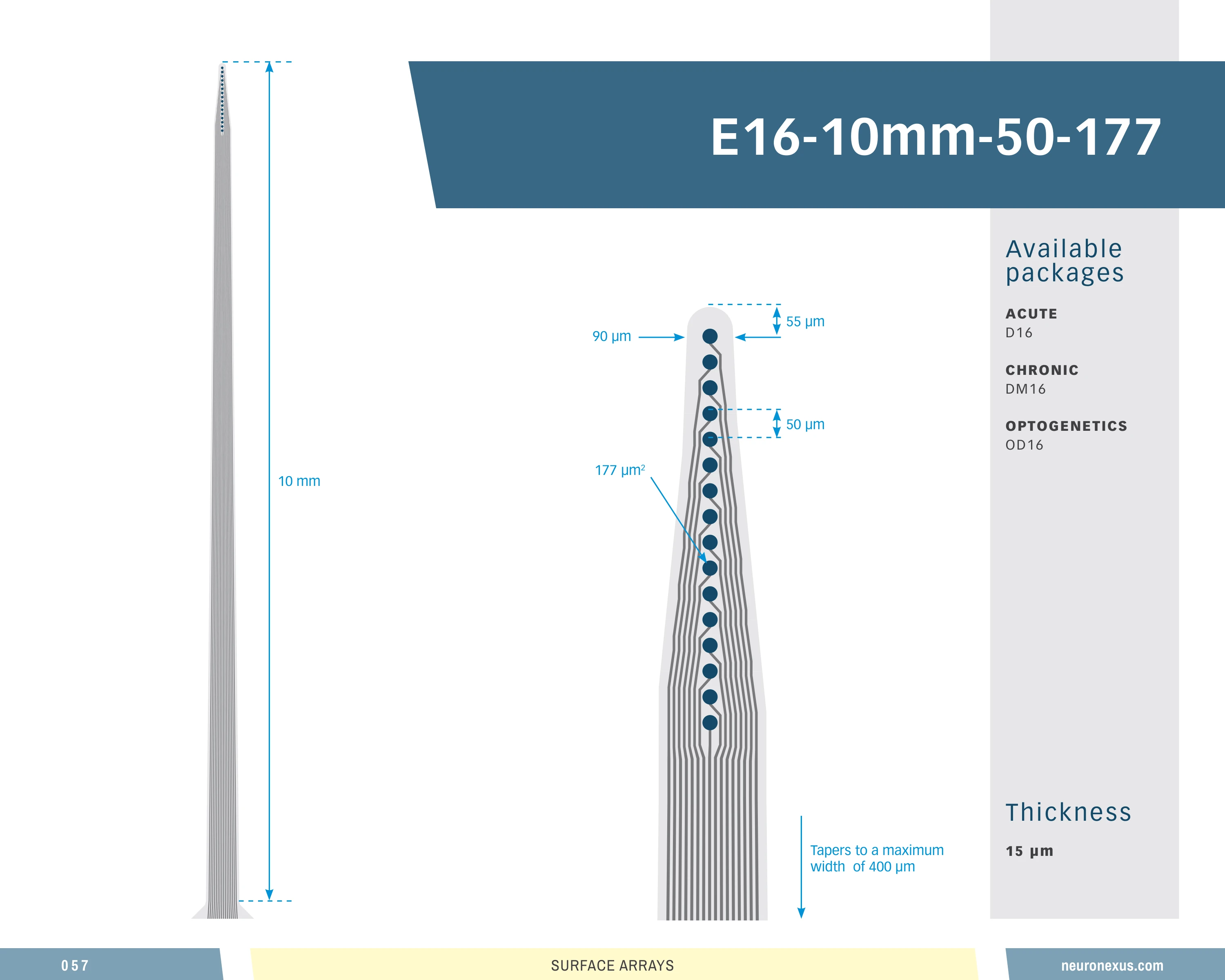

Linear Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
50µmSite Pitch
Part no.E16-10mm-50-177
Contents

16-site drug-delivery probe, 10 mm, 50 µm pitch

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.77 mm-deep site array (45th percentile), 1,393 sites/mm² (90th percentile) and a 0.33 mm³ neural interface (16th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 2 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

e16_10mm_50_177

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_50_177

12 specs

Channels16
Shanks1
Shank length10 mm
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.326 mm³ (higher than 16% of 369 designs)
Site coverage density1,393.2 sites/mm² (higher than 90% of 369 designs)
Brain coverage density49.1 sites/mm³ (higher than 53% of 369 designs)
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_50_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

2 options

Configure

Compatible Package
All
D16 — 16-ch
DM16 — 16-ch Omnetics

Your selection

16-channel single-shank silicon probe, 10 mm — 15 μm, D16
D16
Compatible Package: D16 — 16-ch
SKUprb_dde--e16_10mm_50_177.15um.d16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

2 of 2
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_50_177

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
