Tetrode Single-Shank 4-Channel Probe, 10 mm
4-site Q-Trode probe, 10 mm, 121 µm²
A single long shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.05 mm-deep site array (5th percentile), 1,861 sites/mm² (95th percentile) and a 0.15 mm³ neural interface (1st percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.
Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x1_tet_10mm_121
13 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 10 mm |
| Site layout | Tetrode |
| Site area | 121 µm² |
| Site pitch | 17.68 µm |
| Vertical span | 46 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.149 mm³ (higher than 1% of 369 designs) |
| Site coverage density | 1,861.1 sites/mm² (higher than 95% of 369 designs) |
| Brain coverage density | 26.8 sites/mm³ (higher than 20% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
15 options
Configure
Your selection

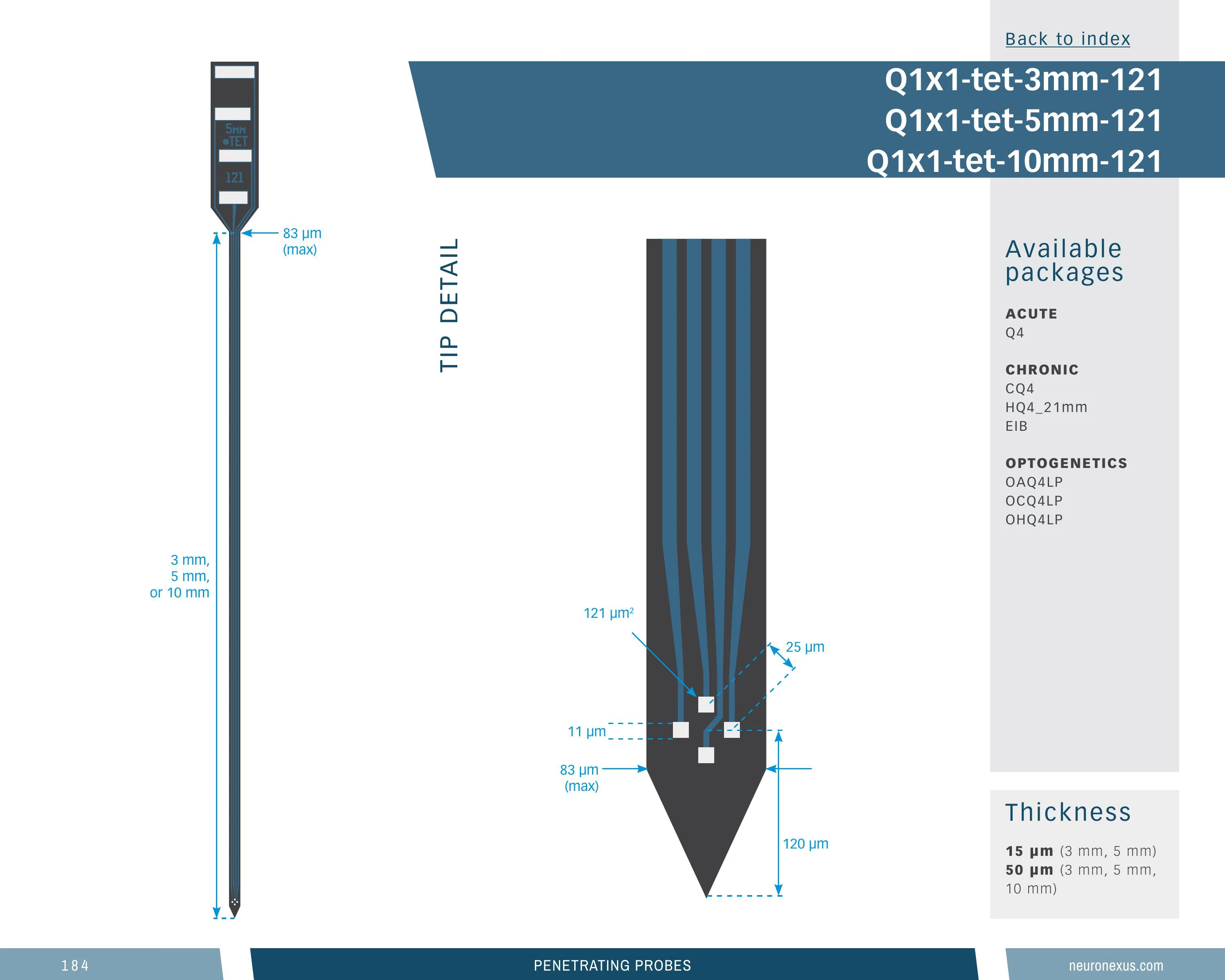

4-channel single-shank silicon probe, 10 mm — 50 μm, CQ4
CQ4Options
15 of 15CQ4 — 4-ch Mill-Max
CQ4MCS — 4-ch
CQ4_T
EIB — 4-ch
EIBH_21MM — 4-ch
HQ4 (10 mm cable) — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
HQ4 (5 mm cable) — 4-ch Mill-Max
HQ4MCS — 4-ch Mill-Max
HQ4 (21 mm cable) — 4-ch Mill-Max
OAQ4LP — 4-ch
OCQ4LP — 4-ch Mill-Max
Q4 — 4-ch
CM16LP — 16-ch Omnetics
X3_16 — 16-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 79% of its familyTop 31% of catalog designs
Maximum site depth 9.91 mm — higher than 69% of catalog designs and 53% of its familyTop 8% of catalog designs
Minimum site depth 9.86 mm — higher than 92% of catalog designs and 79% of its familyTop 68% of catalog designs · largest in its family
Span, x 0.046 mm — higher than 32% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 95% of catalog designs
Span, y 0.046 mm — higher than 5% of catalog designs and 21% of its familyTop 48% of catalog designs · largest in its family
Site pitch, x 0.018 µm — higher than 52% of catalog designs and 100% of its family (the largest in its family, 4 designs)Top 85% of catalog designs
Site pitch, y 0.018 µm — higher than 15% of catalog designs and 21% of its familyTop 99% of catalog designs
Site outline area 0.002 mm² — higher than 1% of catalog designs and 21% of its familyTop 99% of catalog designs
Neural interface volume 0.149 mm³ — higher than 1% of catalog designs and 21% of its familyTop 5% of catalog designs
Site coverage density 1861.1 sites/mm² — higher than 95% of catalog designs and 95% of its familyTop 80% of catalog designs
Brain coverage density 26.8 sites/mm³ — higher than 20% of catalog designs and 95% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
