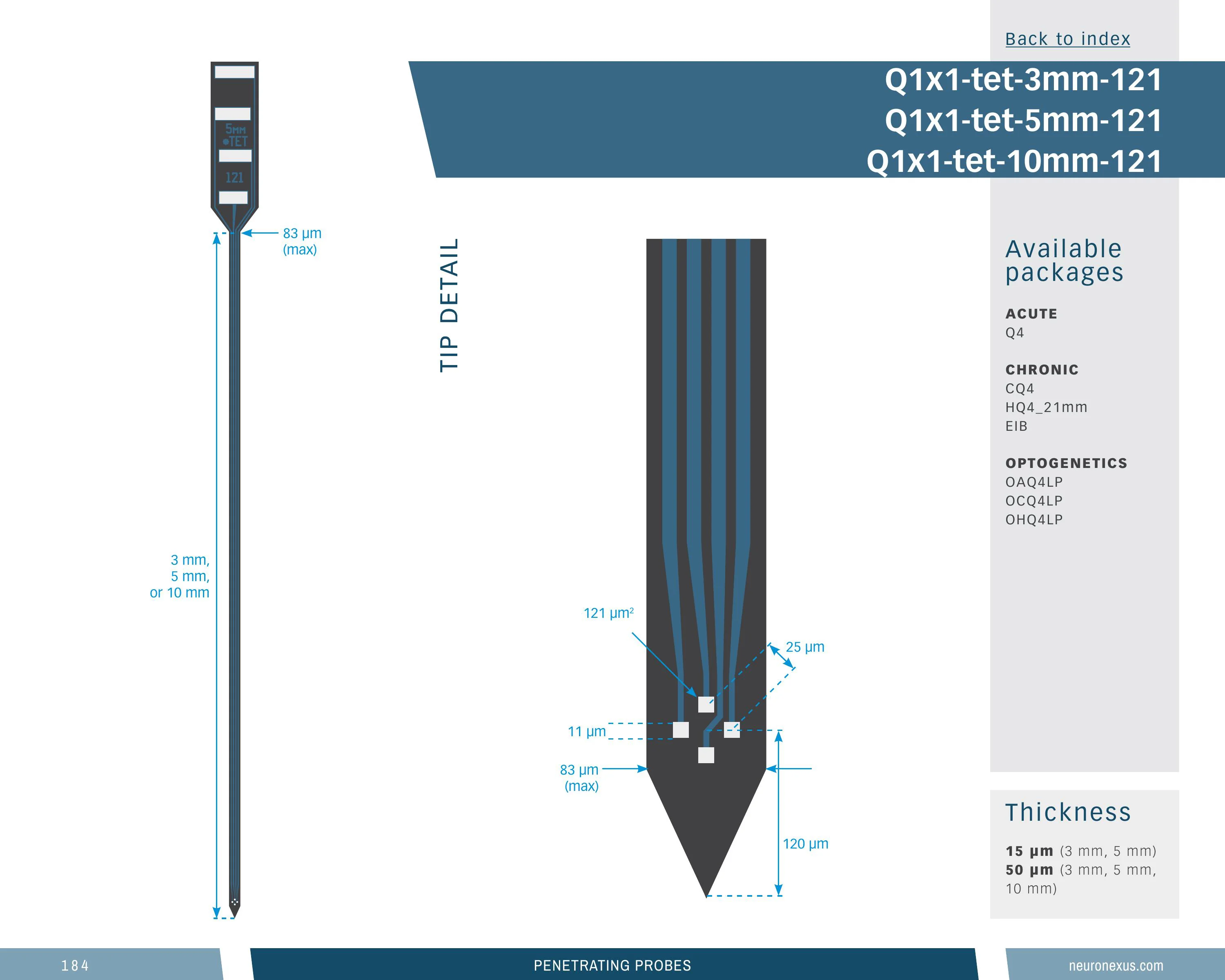

Tetrode Single-Shank 4-Channel Probe, 5 mm
4-site Q-Trode probe, 5 mm, 121 µm²
A single mid-length shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.05 mm-deep site array (5th percentile), 1,861 sites/mm² (95th percentile) and a 0.15 mm³ neural interface (1st percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.
Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
q1x1_tet_5mm_121
13 specs
| Channels | 4 |
|---|---|
| Shanks | 1 |
| Shank length | 5 mm |
| Site layout | Tetrode |
| Site area | 121 µm² |
| Site pitch | 17.68 µm |
| Vertical span | 46 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.149 mm³ (higher than 1% of 369 designs) |
| Site coverage density | 1,861.1 sites/mm² (higher than 95% of 369 designs) |
| Brain coverage density | 26.8 sites/mm³ (higher than 20% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
30 options
Configure
Your selection
4-channel single-shank silicon probe, 5 mm — 15 μm, CQ4
CQ4Options
30 of 3015 μm · CQ4 — 4-ch Mill-Max
15 μm · CQ4MCS — 4-ch
15 μm · CQ4_T
15 μm · EIB — 4-ch
15 μm · EIBH_21MM — 4-ch
15 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
15 μm · HQ4MCS — 4-ch Mill-Max
15 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
15 μm · OAQ4LP — 4-ch
15 μm · OCQ4LP — 4-ch Mill-Max
15 μm · Q4 — 4-ch
50 μm · CQ4 — 4-ch Mill-Max
50 μm · CQ4MCS — 4-ch
50 μm · CQ4_T
50 μm · EIB — 4-ch
50 μm · EIBH_21MM — 4-ch
50 μm · HQ4 (10 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · HQ4 (5 mm cable) — 4-ch Mill-Max
50 μm · HQ4MCS — 4-ch Mill-Max
50 μm · HQ4 (21 mm cable) — 4-ch Mill-Max
50 μm · OAQ4LP — 4-ch
50 μm · OCQ4LP — 4-ch Mill-Max
50 μm · Q4 — 4-ch
15 μm · CM16LP — 16-ch Omnetics
50 μm · CM16LP — 16-ch Omnetics
15 μm · X3_16 — 16-ch Molex
50 μm · X3_16 — 16-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 95% of catalog designs · largest in its family
Sites 4 — higher than 5% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 58% of catalog designs · largest in its family
Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 42% of its familyTop 77% of catalog designs
Maximum site depth 4.91 mm — higher than 23% of catalog designs and 26% of its familyTop 39% of catalog designs
Minimum site depth 4.86 mm — higher than 61% of catalog designs and 42% of its familyTop 68% of catalog designs · largest in its family
Span, x 0.046 mm — higher than 32% of catalog designs and 100% of its family (the largest in its family, 19 designs)Top 95% of catalog designs
Span, y 0.046 mm — higher than 5% of catalog designs and 21% of its familyTop 48% of catalog designs · largest in its family
Site pitch, x 0.018 µm — higher than 52% of catalog designs and 100% of its family (the largest in its family, 4 designs)Top 85% of catalog designs
Site pitch, y 0.018 µm — higher than 15% of catalog designs and 21% of its familyTop 99% of catalog designs
Site outline area 0.002 mm² — higher than 1% of catalog designs and 21% of its familyTop 99% of catalog designs
Neural interface volume 0.149 mm³ — higher than 1% of catalog designs and 21% of its familyTop 5% of catalog designs
Site coverage density 1861.1 sites/mm² — higher than 95% of catalog designs and 95% of its familyTop 80% of catalog designs
Brain coverage density 26.8 sites/mm³ — higher than 20% of catalog designs and 95% of its family6 notes · Isolation, bought with coverage · Site area is the isolation variable · Naming …
