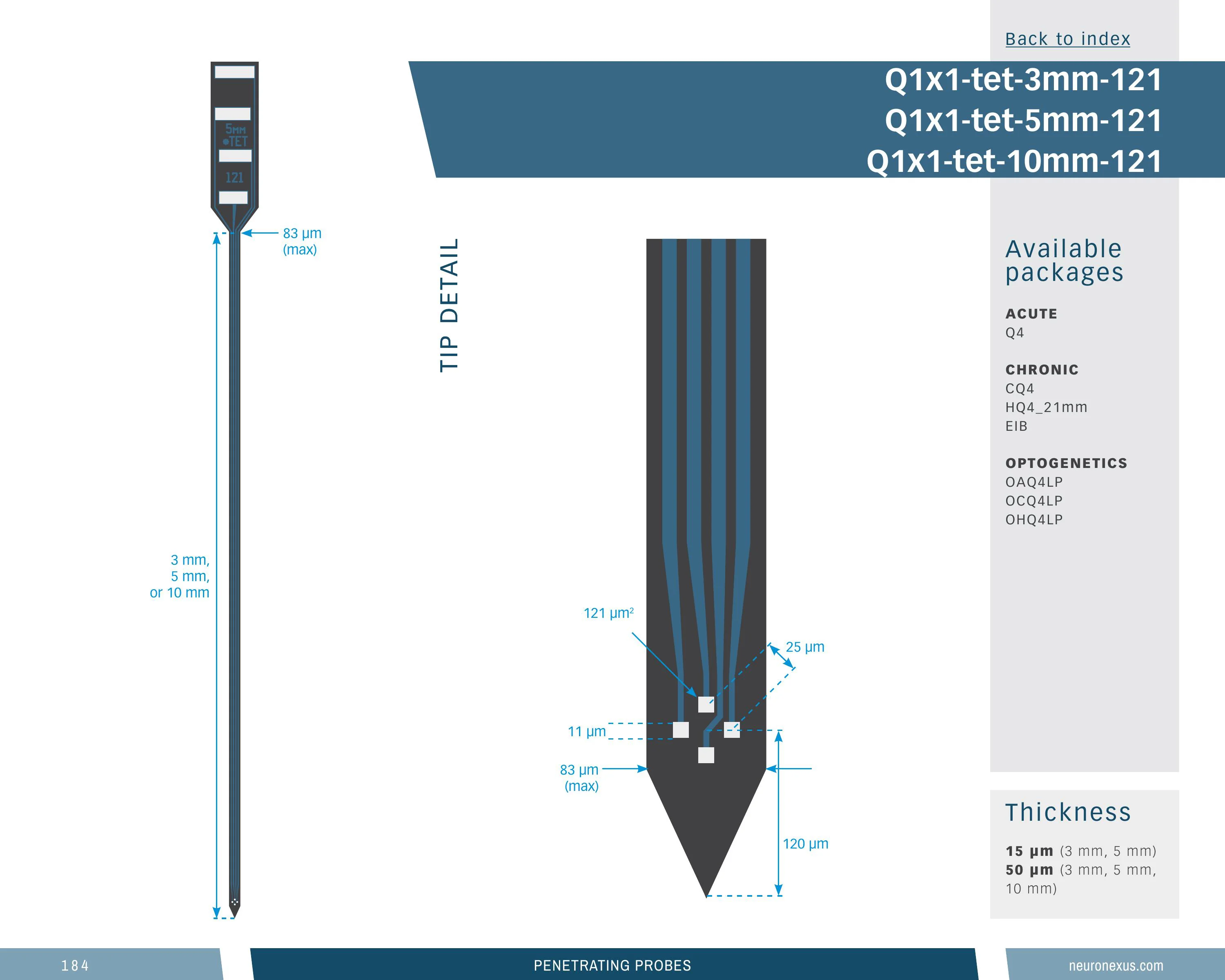

Tetrode Single-Shank 4-Channel Probe, 3 mm

4Sites
1Shanks
3mmShank Length
17.68µmSite Pitch
Part no.Q1x1-tet-3mm-121
Contents

4-site Q-Trode probe, 3 mm, 121 µm²

A single short shank with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it sits at the bottom: 4 sites (5th percentile), 3 mm shanks (a common choice — 39 of 366), a 0.05 mm-deep site array (5th percentile), 1,861 sites/mm² (95th percentile) and a 0.15 mm³ neural interface (1st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shank suits superficial targets.

Orders as a probe-plus-package assembly, in 15 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

q1x1_tet_3mm_121

Tetrode Single-Shank 4-Channel Probe, 3 mmSKU prb_qtr--q1x1_tet_3mm_121

13 specs

Channels4
Shanks1
Shank length3 mm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span46 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.149 mm³ (higher than 1% of 369 designs)
Site coverage density1,861.1 sites/mm² (higher than 95% of 369 designs)
Brain coverage density26.8 sites/mm³ (higher than 20% of 369 designs)
