Neural Probes · Q-Trode Series

Linear Single-Shank 4-Channel Probe, 10 mm

4Sites
1Shanks
10mmShank Length
100µmSite Pitch
Part no.Q1x4-10mm-100-703
Contents

4-site Q-Trode probe, 10 mm, 703 µm², 100 µm pitch

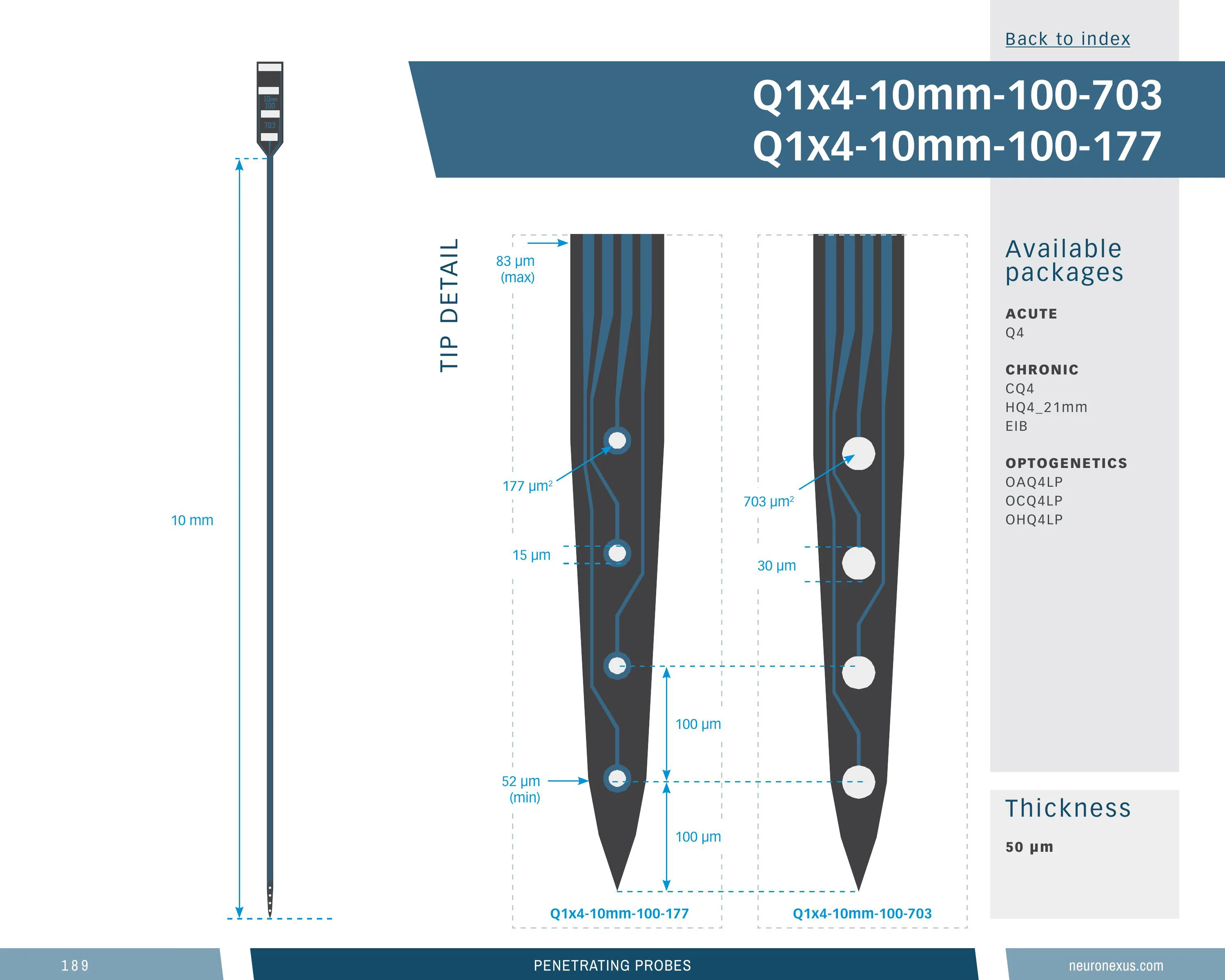

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 4 sites (5th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.33 mm-deep site array (19th percentile), 409 sites/mm² (62nd percentile) and a 0.22 mm³ neural interface (5th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 11 package configurations. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

q1x4_10mm_100_703

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_100_703

12 specs

Channels4
Shanks1
Shank length10 mm
Site area703 µm²
Site pitch100 µm
Vertical span330 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.220 mm³ (higher than 5% of 369 designs)
Site coverage density408.7 sites/mm² (higher than 62% of 369 designs)
Brain coverage density18.2 sites/mm³ (higher than 9% of 369 designs)
Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_100_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

11 options

Configure

Compatible Package
All
CM16LP — 16-ch Omnetics
CQ4 — 4-ch Mill-Max
CQ4MCS — 4-ch
EIB — 4-ch
EIBH_21MM — 4-ch
HQ4 (21 mm cable) — 4-ch Mill-Max
HQ4MCS — 4-ch Mill-Max
OAQ4LP — 4-ch
OCQ4LP — 4-ch Mill-Max
Q4 — 4-ch
X3_16 — 16-ch Molex

Your selection

4-channel single-shank silicon probe, 10 mm — 50 μm, CQ4
CQ4
Compatible Package: CQ4 — 4-ch Mill-Max
SKUprb_qtr--q1x4_10mm_100_703.50um.cq4
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

11 of 11
Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_100_703

Loading the compatible products…

Linear Single-Shank 4-Channel Probe, 10 mmSKU prb_qtr--q1x4_10mm_100_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
