X6_H128
For work where head weight and profile are the binding constraints

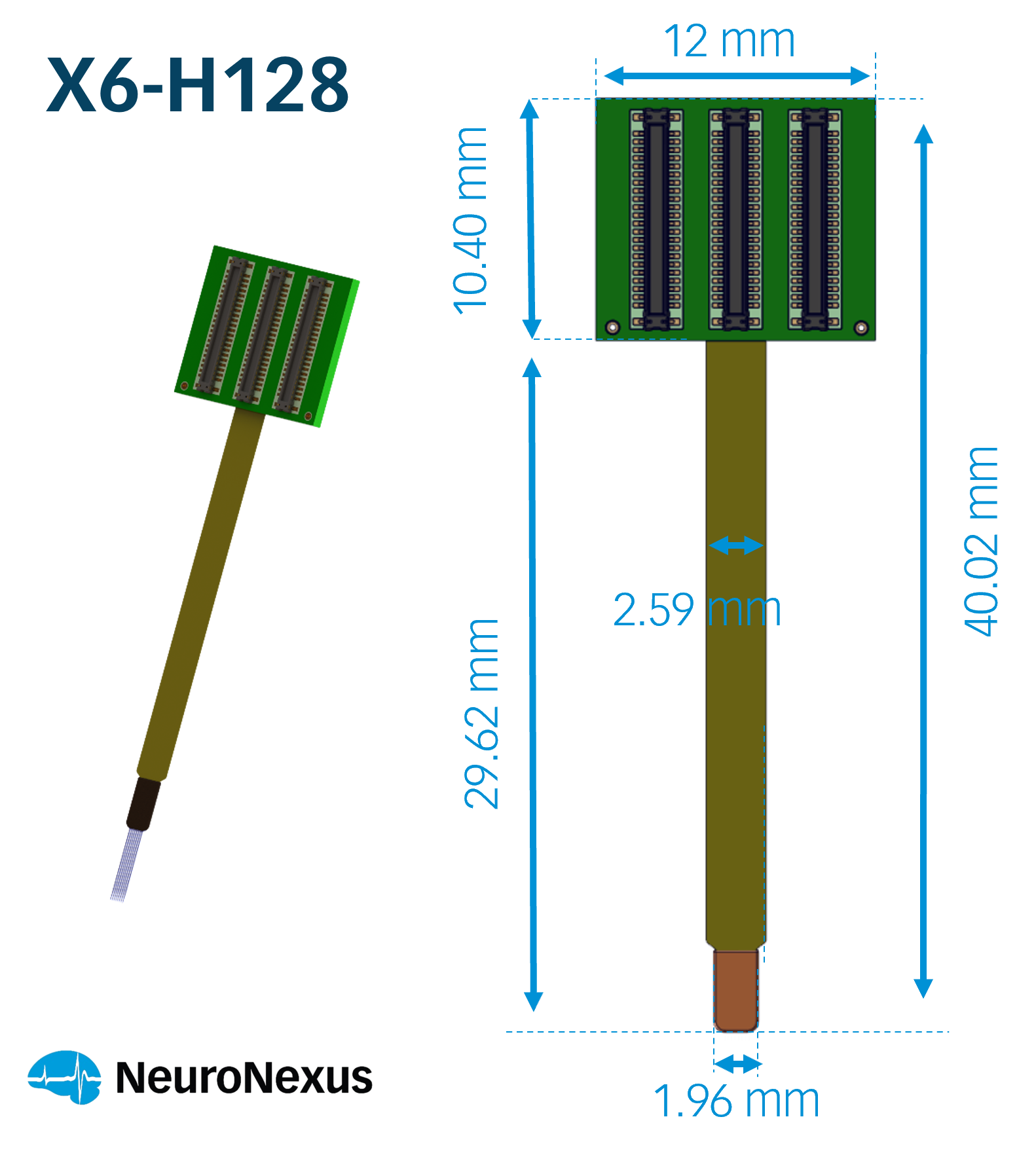

X6_H128 carries 128 channels to 3 Panasonic 96-pin connectors, over a 30 mm thin-film cable to a PCB carrying the connectors, in UV epoxy.
An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 96-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.
The smallest, lightest assembly in the range: an X-Series headstage mates directly. Cable length 30 mm; other lengths available. Mates with a Panasonic 96-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_xse--x6_h128 · Packages in the webstore
Specifications
| Channels | 128 |
|---|---|
| Connector | Panasonic 96-pin ×3 |
| Construction | Cabled: thin-film cable to the connector PCB |
| Cable length | 30 mm (other lengths available) |
| Protective covering | UV epoxy |
