Neural Probes · A-Series (Buzsaki)

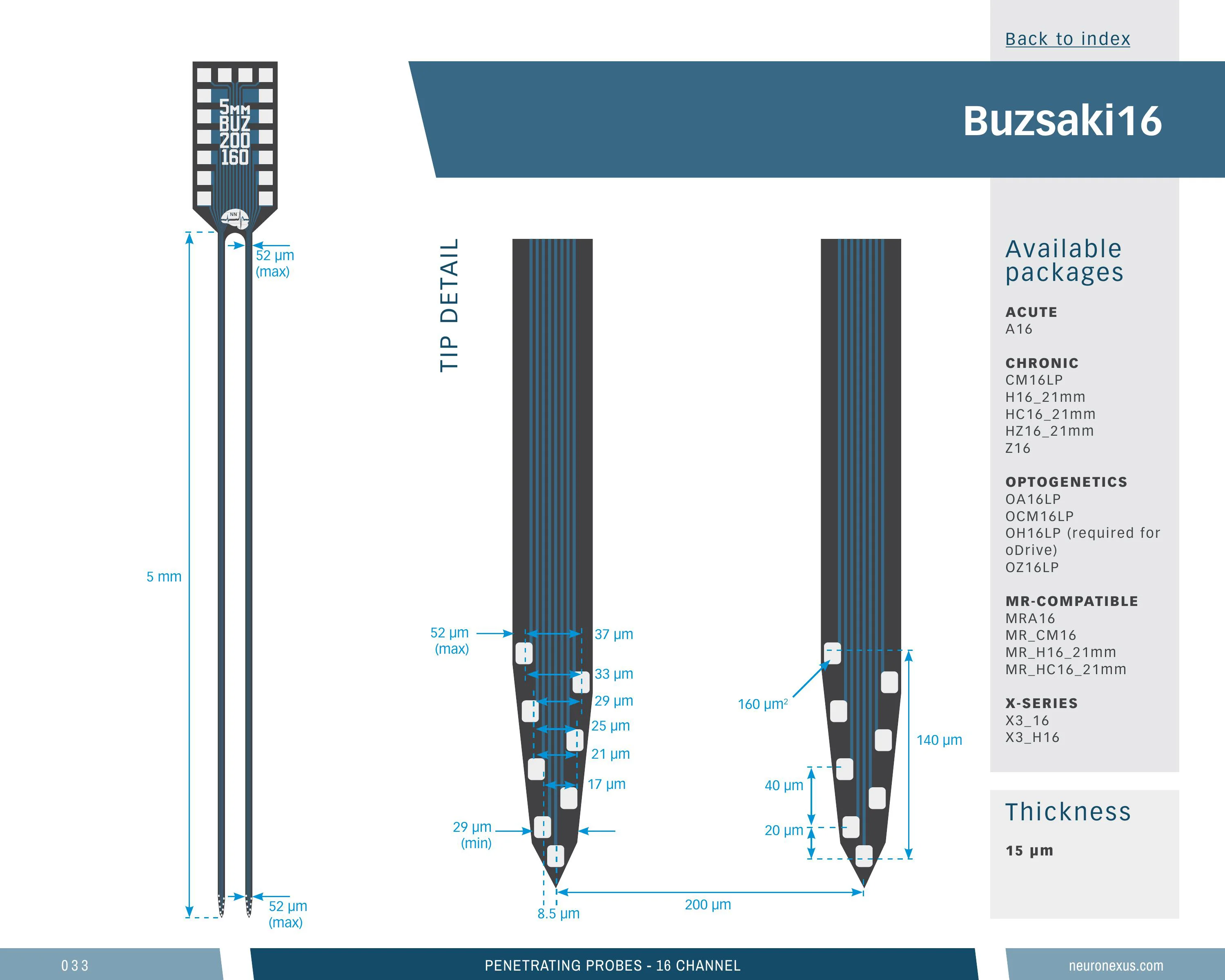

Buzsaki 2-Shank 16-Channel Probe, 5 mm

16Sites
2Shanks
5mmShank Length
20µmSite Pitch
Part no.Buz16-5mm
Contents

16-site Buzsaki probe

Two mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it sits at the bottom: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.15 mm-deep site array (8th percentile), 416 sites/mm² (63rd percentile) and a 0.24 mm³ neural interface (8th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

buzsaki16

Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

14 specs

Channels16
Shanks2
Shank length5 mm
Shank separation200 µm
Site layoutBuzsaki
Site area165 µm²
Site pitch20 µm
Vertical span155 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.245 mm³ (higher than 8% of 369 designs)
Site coverage density416.2 sites/mm² (higher than 63% of 369 designs)
Brain coverage density65.3 sites/mm³ (higher than 71% of 369 designs)
Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

39 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 2-shank silicon probe, 5 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_abz--buz16_5mm.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

39 of 39
Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

Loading the compatible products…

Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 7% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 13% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 53% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 92% of its family
Maximum site depth
4.99 mm
0.972 mm51.29 mm

Top 50% of catalog designs

Maximum site depth 4.99 mm — higher than 50% of catalog designs and 33% of its family
Minimum site depth
4.83 mm
0.067 mm44.74 mm

Top 40% of catalog designs

Minimum site depth 4.83 mm — higher than 60% of catalog designs and 47% of its family
Span, x
0.248 mm
0.01 mm6.03 mm

Top 55% of catalog designs

Span, x 0.248 mm — higher than 45% of catalog designs and 7% of its family
Span, y
0.155 mm
0.01 mm10.55 mm

Top 92% of catalog designs

Span, y 0.155 mm — higher than 8% of catalog designs and 33% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 73% of its family
Site outline area
0.038 mm²
0.002 mm²28.74 mm²

Top 74% of catalog designs

Site outline area 0.038 mm² — higher than 26% of catalog designs and 7% of its family
Neural interface volume
0.245 mm³
0.149 mm³17.19 mm³

Top 92% of catalog designs

Neural interface volume 0.245 mm³ — higher than 8% of catalog designs and 7% of its family
Site coverage density
416.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 37% of catalog designs · largest in its family

Site coverage density 416.2 sites/mm² — higher than 63% of catalog designs and 100% of its family (the largest in its family, 15 designs)
Brain coverage density
65.31 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 29% of catalog designs

Brain coverage density 65.31 sites/mm³ — higher than 71% of catalog designs and 60% of its family
Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki 2-Shank 16-Channel Probe, 5 mmSKU prb_abz--buz16_5mm

Cited in 2,342 publications (product line)
