Neural Probes · A-Series (Buzsaki)

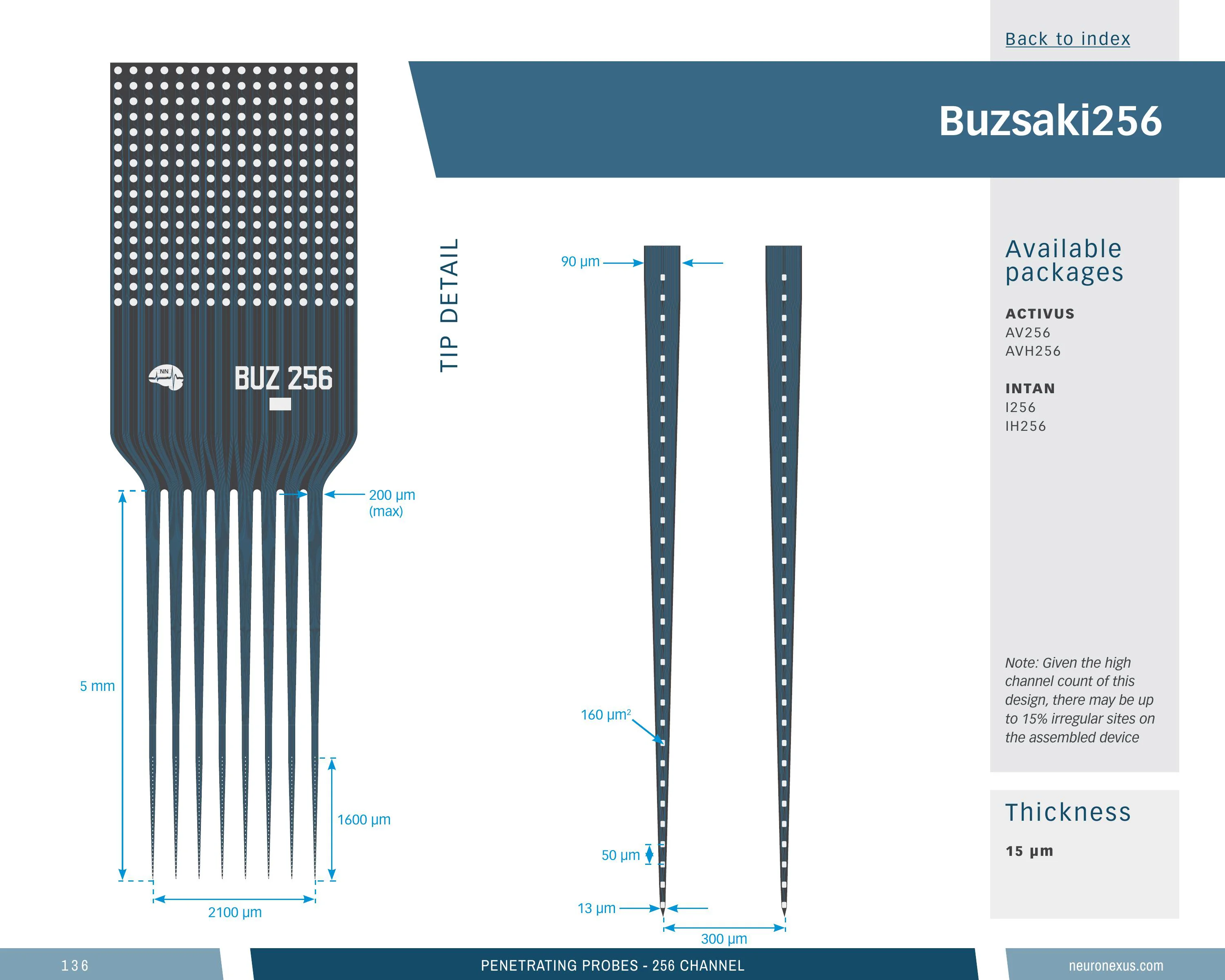

Buzsaki 8-Shank 256-Channel Probe, 5 mm

256Sites
8Shanks
5mmShank Length
50µmSite Pitch
Part no.Buz256-5mm
Contents

256-site Buzsaki probe

Eight mid-length shanks side by side, spread for lateral coverage across columns, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is in the upper quartile: 256 sites (99th percentile), 5 mm shanks (a common choice — 108 of 366), a 1.56 mm-deep site array (76th percentile), 77 sites/mm² (31st percentile) and a 2.7 mm³ neural interface (95th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

buzsaki256

Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

14 specs

Channels256
Shanks8
Shank length5 mm
Shank separation300 µm
Site layoutBuzsaki
Site area165 µm²
Site pitch50 µm
Vertical span1565 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume2.696 mm³ (higher than 95% of 369 designs)
Site coverage density77.5 sites/mm² (higher than 31% of 369 designs)
Brain coverage density95.0 sites/mm³ (higher than 85% of 369 designs)
Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 5 mm — 15 μm, AVH256
AVH256
Compatible Package: AVH256 — 256-ch
SKUprb_abz--buz256_5mm.15um.avh256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

Loading the compatible products…

Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 15 designs)
Shanks
8
116

Top 3% of catalog designs · largest in its family

Shanks 8 — higher than 97% of catalog designs and 100% of its family (the largest in its family, 15 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 53% of its family
Shank separation
0.3 mm
0.05 mm1.8 mm

Top 27% of catalog designs · largest in its family

Shank separation 0.3 mm — higher than 73% of catalog designs and 100% of its family (the largest in its family, 12 designs)
Maximum site depth
4.98 mm
0.972 mm51.29 mm

Top 51% of catalog designs

Maximum site depth 4.98 mm — higher than 49% of catalog designs and 27% of its family
Minimum site depth
3.41 mm
0.067 mm44.74 mm

Top 69% of catalog designs

Minimum site depth 3.41 mm — higher than 31% of catalog designs and 27% of its family
Span, x
2.11 mm
0.01 mm6.03 mm

Top 3% of catalog designs

Span, x 2.11 mm — higher than 97% of catalog designs and 93% of its family
Span, y
1.56 mm
0.01 mm10.55 mm

Top 24% of catalog designs

Span, y 1.56 mm — higher than 76% of catalog designs and 60% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 93% of its family
Site outline area
3.3 mm²
0.002 mm²28.74 mm²

Top 5% of catalog designs

Site outline area 3.3 mm² — higher than 95% of catalog designs and 93% of its family
Neural interface volume
2.7 mm³
0.149 mm³17.19 mm³

Top 5% of catalog designs

Neural interface volume 2.7 mm³ — higher than 95% of catalog designs and 93% of its family
Site coverage density
77.49 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 69% of catalog designs

Site coverage density 77.49 sites/mm² — higher than 31% of catalog designs and 53% of its family
Brain coverage density
94.96 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 15% of catalog designs

Brain coverage density 94.96 sites/mm³ — higher than 85% of catalog designs and 93% of its family
Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki 8-Shank 256-Channel Probe, 5 mmSKU prb_abz--buz256_5mm

Cited in 2,342 publications (product line)
