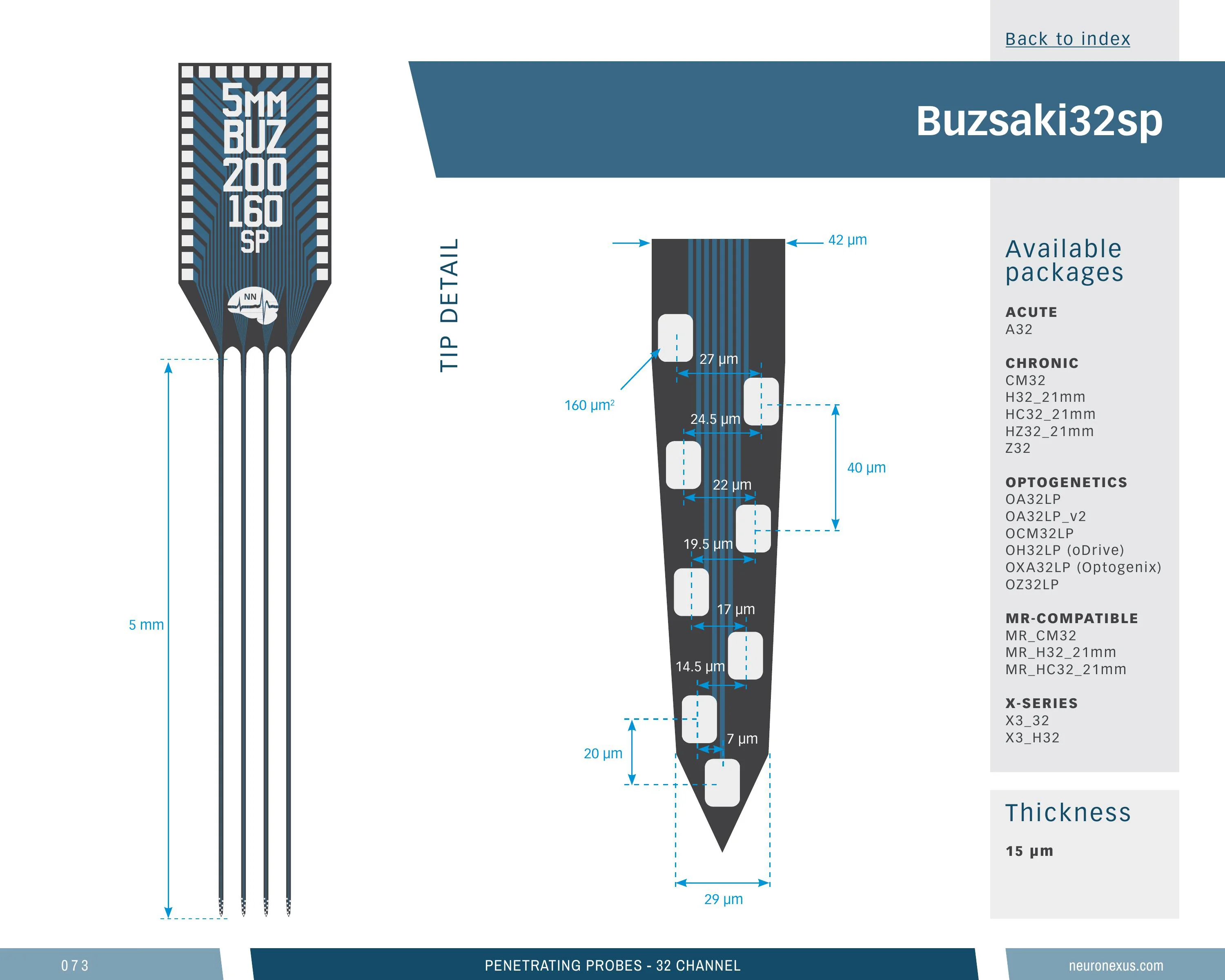

Buzsaki 4-Shank 32-Channel Probe, 5 mm
32-site Buzsaki probe, 5 mm
Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is in the lower quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.15 mm-deep site array (8th percentile), 324 sites/mm² (57th percentile) and a 0.37 mm³ neural interface (22nd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
buzsaki32sp
14 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 200 µm |
| Site layout | Buzsaki |
| Site area | 165 µm² |
| Site pitch | 20 µm |
| Vertical span | 155 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.373 mm³ (higher than 22% of 369 designs) |
| Site coverage density | 323.6 sites/mm² (higher than 57% of 369 designs) |
| Brain coverage density | 85.9 sites/mm³ (higher than 80% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
24 options
Configure
Your selection
32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32Options
24 of 24A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM32 — 32-ch
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OXA32LP — 32-ch Samtec
MROCM32LP — 32-ch Omnetics
OXCM32LP — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
MRCM16PB32 — 16-ch
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 40% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 47% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 53% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 92% of its familyTop 49% of catalog designs
Maximum site depth 4.99 mm — higher than 51% of catalog designs and 53% of its familyTop 40% of catalog designs
Minimum site depth 4.83 mm — higher than 60% of catalog designs and 53% of its familyTop 35% of catalog designs
Span, x 0.638 mm — higher than 65% of catalog designs and 27% of its familyTop 92% of catalog designs
Span, y 0.155 mm — higher than 8% of catalog designs and 33% of its familyTop 78% of catalog designs
Site pitch, y 0.02 µm — higher than 22% of catalog designs and 73% of its familyTop 55% of catalog designs
Site outline area 0.099 mm² — higher than 45% of catalog designs and 13% of its familyTop 78% of catalog designs
Neural interface volume 0.373 mm³ — higher than 22% of catalog designs and 13% of its familyTop 43% of catalog designs
Site coverage density 323.6 sites/mm² — higher than 57% of catalog designs and 93% of its familyTop 20% of catalog designs
Brain coverage density 85.86 sites/mm³ — higher than 80% of catalog designs and 87% of its family4 notes · Why the sites sit at the tip · Geometry · Construction …
15 links · Choosing an Electrode for Your Experiment · Care, Use and Handling · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
