Neural Probes · A-Series (Buzsaki)

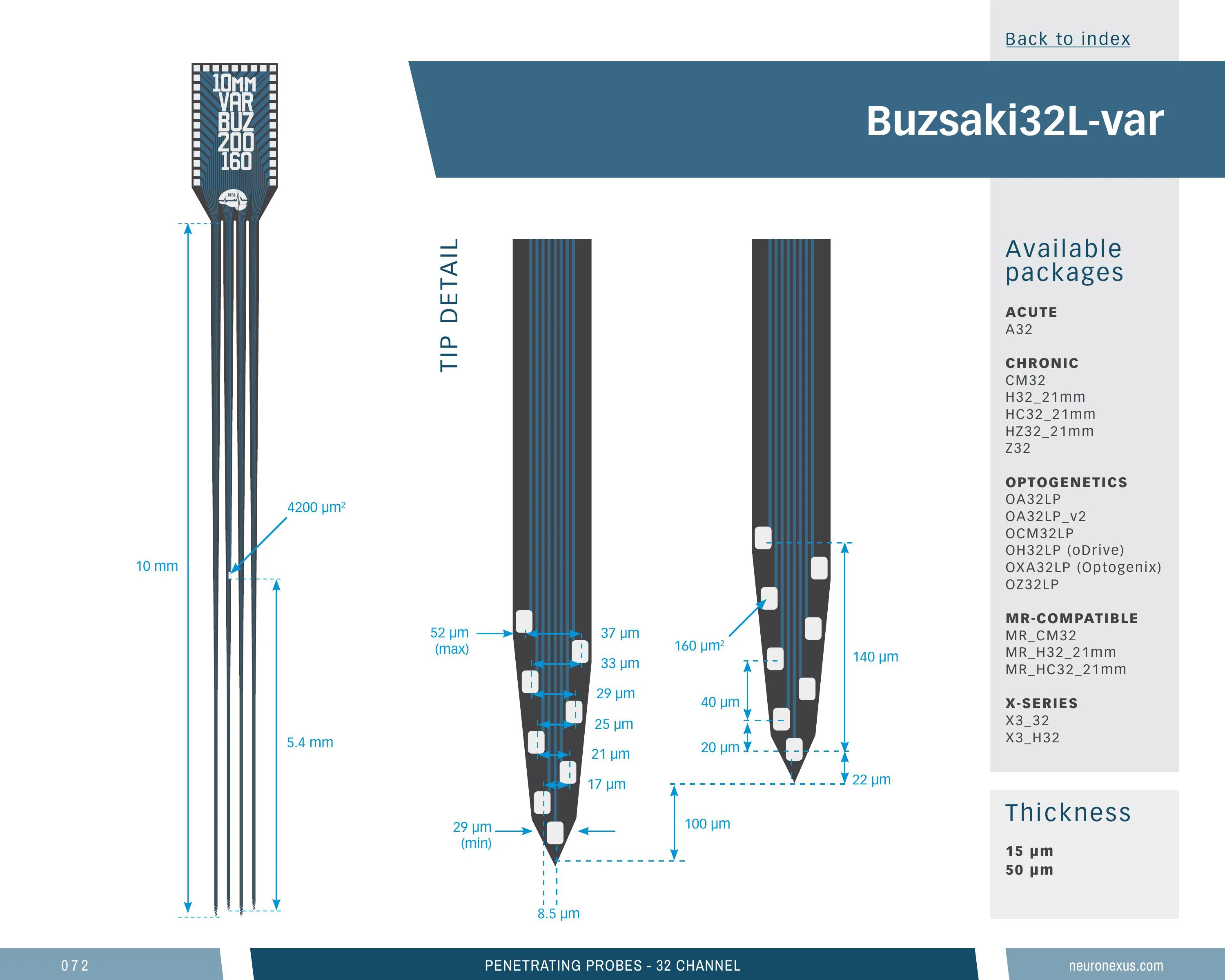

Buzsaki 4-Shank 32-Channel Probe, 11 mm

32Sites
4Shanks
11mmShank Length
20µmSite Pitch
Part no.Buz32l-var-11mm
Contents

32-site Buzsaki probe, 11 mm

Four long shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 11 mm shanks (91st percentile of the 366 measured), a 0.26 mm-deep site array (14th percentile), 194 sites/mm² (46th percentile) and a 0.43 mm³ neural interface (27th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

buzsaki32l_var

Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

14 specs

Channels32
Shanks4
Shank length11 mm
Shank separation200 µm
Site layoutBuzsaki
Site area165 µm²
Site pitch20 µm
Vertical span255 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.433 mm³ (higher than 27% of 369 designs)
Site coverage density193.7 sites/mm² (higher than 46% of 369 designs)
Brain coverage density73.8 sites/mm³ (higher than 77% of 369 designs)
Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 11 mm — 15 μm, CM32
CM32
Substrate Thickness: 15 μm
Compatible Package: CM32 — 32-ch Omnetics
SKUprb_abz--buz32l_var_11mm.15um.cm32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

Loading the compatible products…

Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 40% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 47% of its family
Shank length
11 mm
1 mm60 mm

Top 9% of catalog designs

Shank length 11 mm — higher than 91% of catalog designs and 93% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 92% of its family
Maximum site depth
10.99 mm
0.972 mm51.29 mm

Top 9% of catalog designs

Maximum site depth 10.99 mm — higher than 91% of catalog designs and 93% of its family
Minimum site depth
10.73 mm
0.067 mm44.74 mm

Top 7% of catalog designs

Minimum site depth 10.73 mm — higher than 93% of catalog designs and 93% of its family
Span, x
0.648 mm
0.01 mm6.03 mm

Top 31% of catalog designs

Span, x 0.648 mm — higher than 69% of catalog designs and 47% of its family
Span, y
0.255 mm
0.01 mm10.55 mm

Top 86% of catalog designs

Span, y 0.255 mm — higher than 14% of catalog designs and 40% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 73% of its family
Site outline area
0.165 mm²
0.002 mm²28.74 mm²

Top 49% of catalog designs

Site outline area 0.165 mm² — higher than 51% of catalog designs and 33% of its family
Neural interface volume
0.433 mm³
0.149 mm³17.19 mm³

Top 73% of catalog designs

Neural interface volume 0.433 mm³ — higher than 27% of catalog designs and 33% of its family
Site coverage density
193.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 54% of catalog designs

Site coverage density 193.7 sites/mm² — higher than 46% of catalog designs and 67% of its family
Brain coverage density
73.84 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 23% of catalog designs

Brain coverage density 73.84 sites/mm³ — higher than 77% of catalog designs and 67% of its family
Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki 4-Shank 32-Channel Probe, 11 mmSKU prb_abz--buz32l_var_11mm

Cited in 2,342 publications (product line)
