Neural Probes · A-Series (Buzsaki)

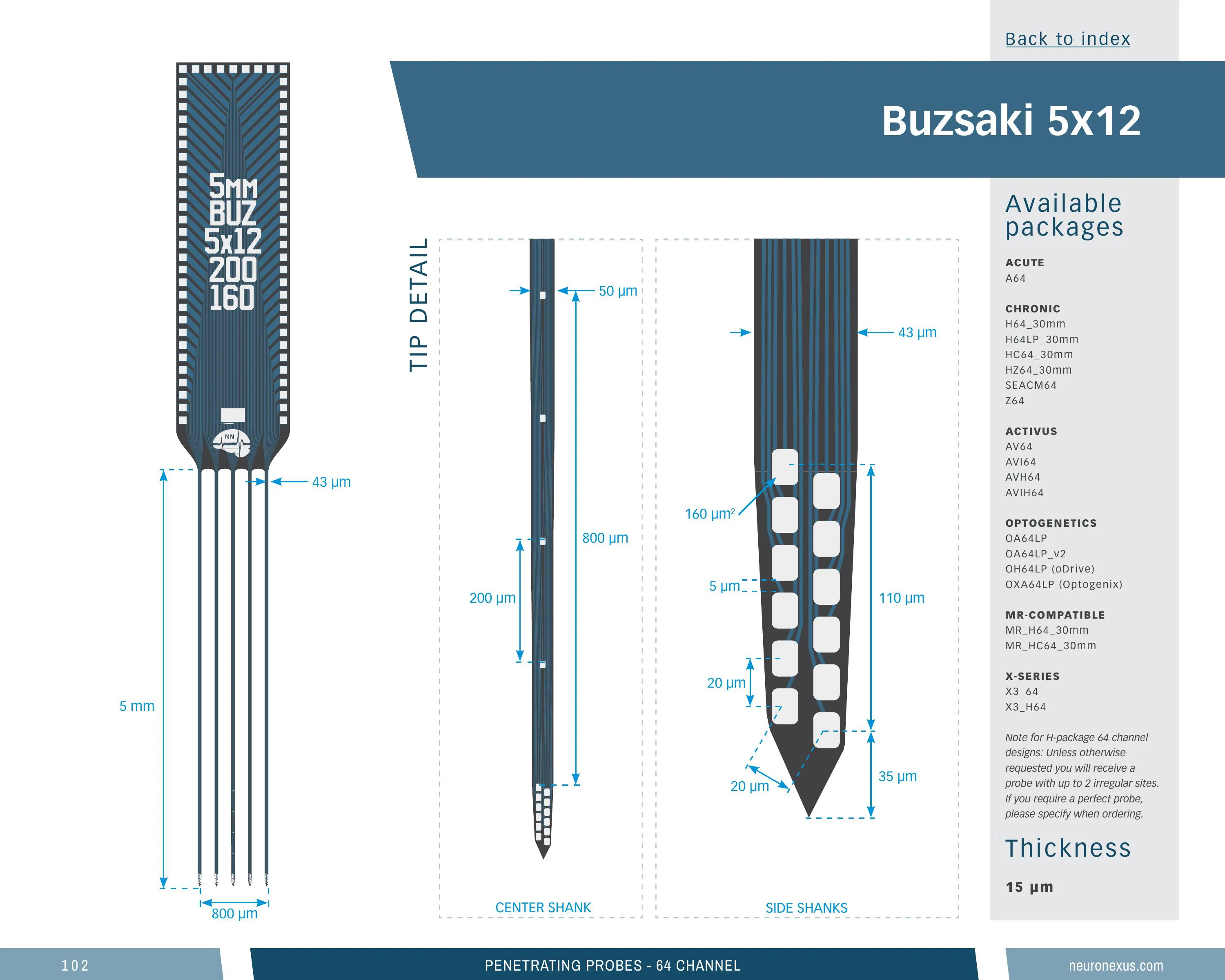

Buzsaki 5-Shank 64-Channel Probe, 5 mm

64Sites
5Shanks
5mmShank Length
10µmSite Pitch
Part no.Buz64-5x12-5mm
Contents

64-site Buzsaki probe, 5 shanks, 165 µm²

Five mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.02 mm-deep site array (54th percentile), 75 sites/mm² (30th percentile) and a 1.01 mm³ neural interface (72nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 3 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

buzaski_5x12 · buzsaki64_5x12

Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

14 specs

Channels64
Shanks5
Shank length5 mm
Shank separation200 µm
Site layoutBuzsaki
Site area165 µm²
Site pitch10 µm
Vertical span1025 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume1.013 mm³ (higher than 72% of 369 designs)
Site coverage density75.4 sites/mm² (higher than 30% of 369 designs)
Brain coverage density63.2 sites/mm³ (higher than 69% of 369 designs)
Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

38 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 5-shank silicon probe, 5 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_abz--buz64_5x12_5mm.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

38 of 38
Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

Loading the compatible products…

Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
5
116

Top 14% of catalog designs

Shanks 5 — higher than 86% of catalog designs and 60% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 53% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 92% of its family
Maximum site depth
4.97 mm
0.972 mm51.29 mm

Top 51% of catalog designs

Maximum site depth 4.97 mm — higher than 49% of catalog designs and 20% of its family
Minimum site depth
3.95 mm
0.067 mm44.74 mm

Top 60% of catalog designs

Minimum site depth 3.95 mm — higher than 40% of catalog designs and 33% of its family
Span, x
0.828 mm
0.01 mm6.03 mm

Top 27% of catalog designs

Span, x 0.828 mm — higher than 73% of catalog designs and 60% of its family
Span, y
1.02 mm
0.01 mm10.55 mm

Top 46% of catalog designs

Span, y 1.02 mm — higher than 54% of catalog designs and 53% of its family
Site pitch, x
0.017 µm
0.012 µm0.57 µm

Top 80% of catalog designs · largest in its family

Site pitch, x 0.017 µm — higher than 20% of catalog designs and 100% of its family (the largest in its family, 2 designs)
Site pitch, y
0.01 µm
0.01 µm1.5 µm

Top 97% of catalog designs

Site pitch, y 0.01 µm — higher than 3% of catalog designs and 7% of its family
Site outline area
0.849 mm²
0.002 mm²28.74 mm²

Top 22% of catalog designs

Site outline area 0.849 mm² — higher than 78% of catalog designs and 53% of its family
Neural interface volume
1.01 mm³
0.149 mm³17.19 mm³

Top 28% of catalog designs

Neural interface volume 1.01 mm³ — higher than 72% of catalog designs and 53% of its family
Site coverage density
75.38 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 70% of catalog designs

Site coverage density 75.38 sites/mm² — higher than 30% of catalog designs and 47% of its family
Brain coverage density
63.19 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 31% of catalog designs

Brain coverage density 63.19 sites/mm³ — higher than 69% of catalog designs and 53% of its family
Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki 5-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_5x12_5mm

Cited in 2,342 publications (product line)
