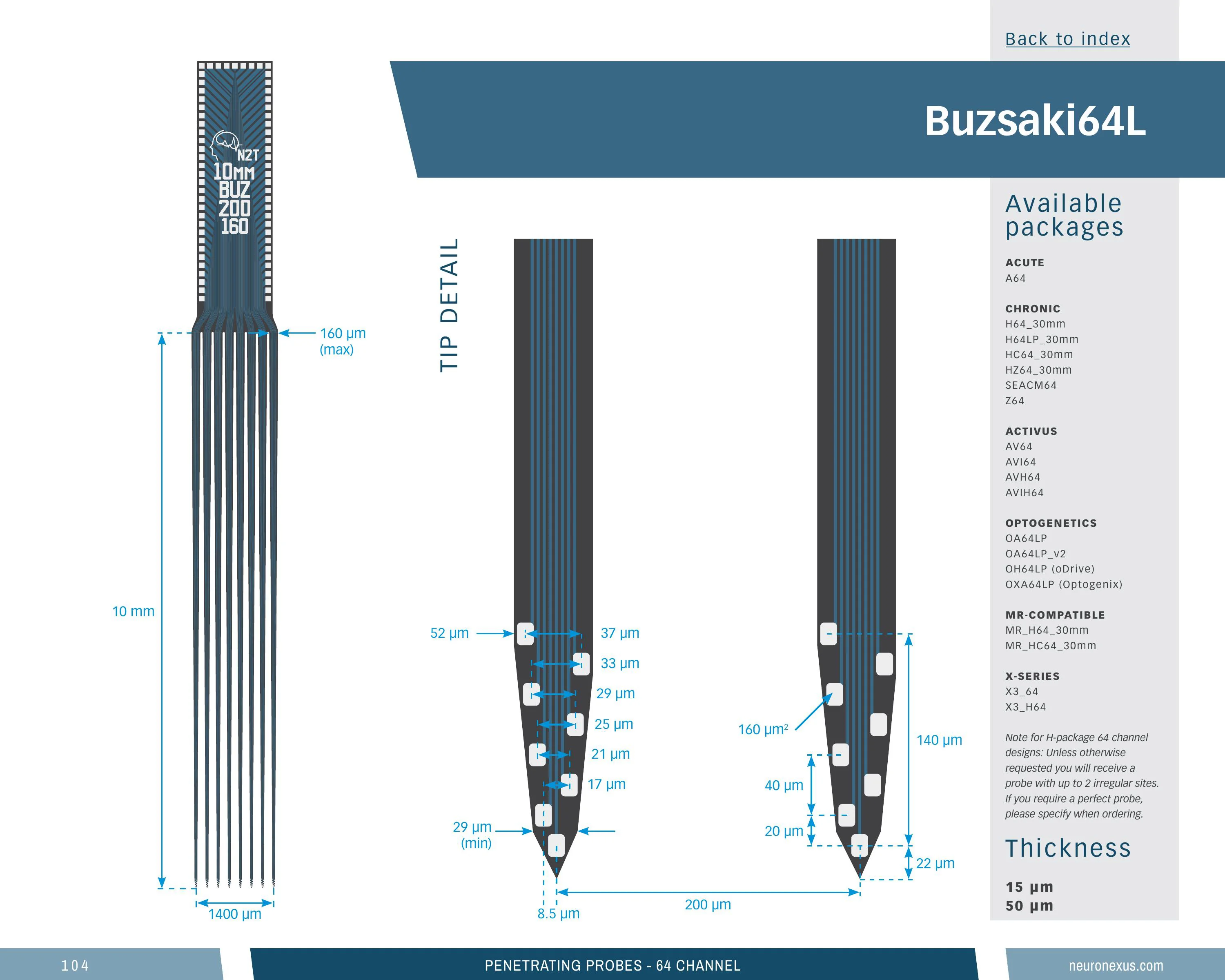

Buzsaki 8-Shank 64-Channel Probe, 10 mm
64-site Buzsaki probe, 8 shanks
Eight long shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.15 mm-deep site array (8th percentile), 285 sites/mm² (55th percentile) and a 0.64 mm³ neural interface (49th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
buzsaki64l
14 specs
| Channels | 64 |
|---|---|
| Shanks | 8 |
| Shank length | 10 mm |
| Shank separation | 200 µm |
| Site layout | Buzsaki |
| Site area | 165 µm² |
| Site pitch | 20 µm |
| Vertical span | 155 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.638 mm³ (higher than 49% of 369 designs) |
| Site coverage density | 285.2 sites/mm² (higher than 55% of 369 designs) |
| Brain coverage density | 100.3 sites/mm³ (higher than 89% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
64-channel 8-shank silicon probe, 10 mm — 15 μm, A64
A64Options
48 of 4815 μm · A64 — 64-ch Samtec
15 μm · AVH64 — 64-ch
15 μm · H64 (30 mm cable) — 64-ch Omnetics
15 μm · H64_60MM — 64-ch
15 μm · H64LP (30 mm cable) — 64-ch Omnetics
15 μm · HC64 (30 mm cable) — 64-ch Omnetics
15 μm · HZ64 (30 mm cable) — 64-ch Hirose
15 μm · HZ64 (60 mm cable) — 64-ch Hirose
15 μm · OA64LP — 64-ch Samtec
15 μm · OA64LP_V2 — 64-ch Samtec
15 μm · OH64LP — 64-ch Omnetics
15 μm · X3_64 — 64-ch Molex
15 μm · X3_H64 (30 mm cable) — 64-ch Molex
15 μm · Z64 — 64-ch Hirose
50 μm · A64 — 64-ch Samtec
50 μm · AVH64 — 64-ch
50 μm · H64 (30 mm cable) — 64-ch Omnetics
50 μm · H64_60MM — 64-ch
50 μm · H64LP (30 mm cable) — 64-ch Omnetics
50 μm · HC64 (30 mm cable) — 64-ch Omnetics
50 μm · HZ64 (30 mm cable) — 64-ch Hirose
50 μm · HZ64 (60 mm cable) — 64-ch Hirose
50 μm · OA64LP — 64-ch Samtec
50 μm · OA64LP_V2 — 64-ch Samtec
50 μm · OH64LP — 64-ch Omnetics
50 μm · X3_64 — 64-ch Molex
50 μm · X3_H64 (30 mm cable) — 64-ch Molex
50 μm · Z64 — 64-ch Hirose
15 μm · MRH64LP_30MM — 64-ch
50 μm · MRH64LP_30MM — 64-ch
15 μm · MRHC64 — 64-ch Omnetics
50 μm · MRHC64 — 64-ch Omnetics
15 μm · OXA64LP — 64-ch Samtec
50 μm · OXA64LP — 64-ch Samtec
15 μm · AV64 — 64-ch
50 μm · AV64 — 64-ch
15 μm · AVI64 — 64-ch Omnetics
50 μm · AVI64 — 64-ch Omnetics
15 μm · AVIH64 — 64-ch Omnetics
50 μm · AVIH64 — 64-ch Omnetics
15 μm · F128 — 128-ch Omnetics
50 μm · F128 — 128-ch Omnetics
15 μm · FH128 — 128-ch Omnetics
50 μm · FH128 — 128-ch Omnetics
15 μm · SEACM64 — 64-ch Samtec
50 μm · SEACM64 — 64-ch Samtec
15 μm · EIB64 — 64-ch Molex
50 μm · EIB64 — 64-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 93% of its familyTop 3% of catalog designs · largest in its family
Shanks 8 — higher than 97% of catalog designs and 100% of its family (the largest in its family, 15 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 87% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 92% of its familyTop 11% of catalog designs
Maximum site depth 9.99 mm — higher than 89% of catalog designs and 80% of its familyTop 8% of catalog designs
Minimum site depth 9.83 mm — higher than 92% of catalog designs and 87% of its familyTop 10% of catalog designs
Span, x 1.45 mm — higher than 90% of catalog designs and 87% of its familyTop 92% of catalog designs
Span, y 0.155 mm — higher than 8% of catalog designs and 33% of its familyTop 78% of catalog designs
Site pitch, y 0.02 µm — higher than 22% of catalog designs and 73% of its familyTop 46% of catalog designs
Site outline area 0.224 mm² — higher than 54% of catalog designs and 40% of its familyTop 51% of catalog designs
Neural interface volume 0.638 mm³ — higher than 49% of catalog designs and 47% of its familyTop 45% of catalog designs
Site coverage density 285.2 sites/mm² — higher than 55% of catalog designs and 73% of its familyTop 11% of catalog designs · largest in its family
Brain coverage density 100.3 sites/mm³ — higher than 89% of catalog designs and 100% of its family (the largest in its family, 15 designs)4 notes · Why the sites sit at the tip · Geometry · Construction …
15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
