Neural Probes · A-Series (Buzsaki)

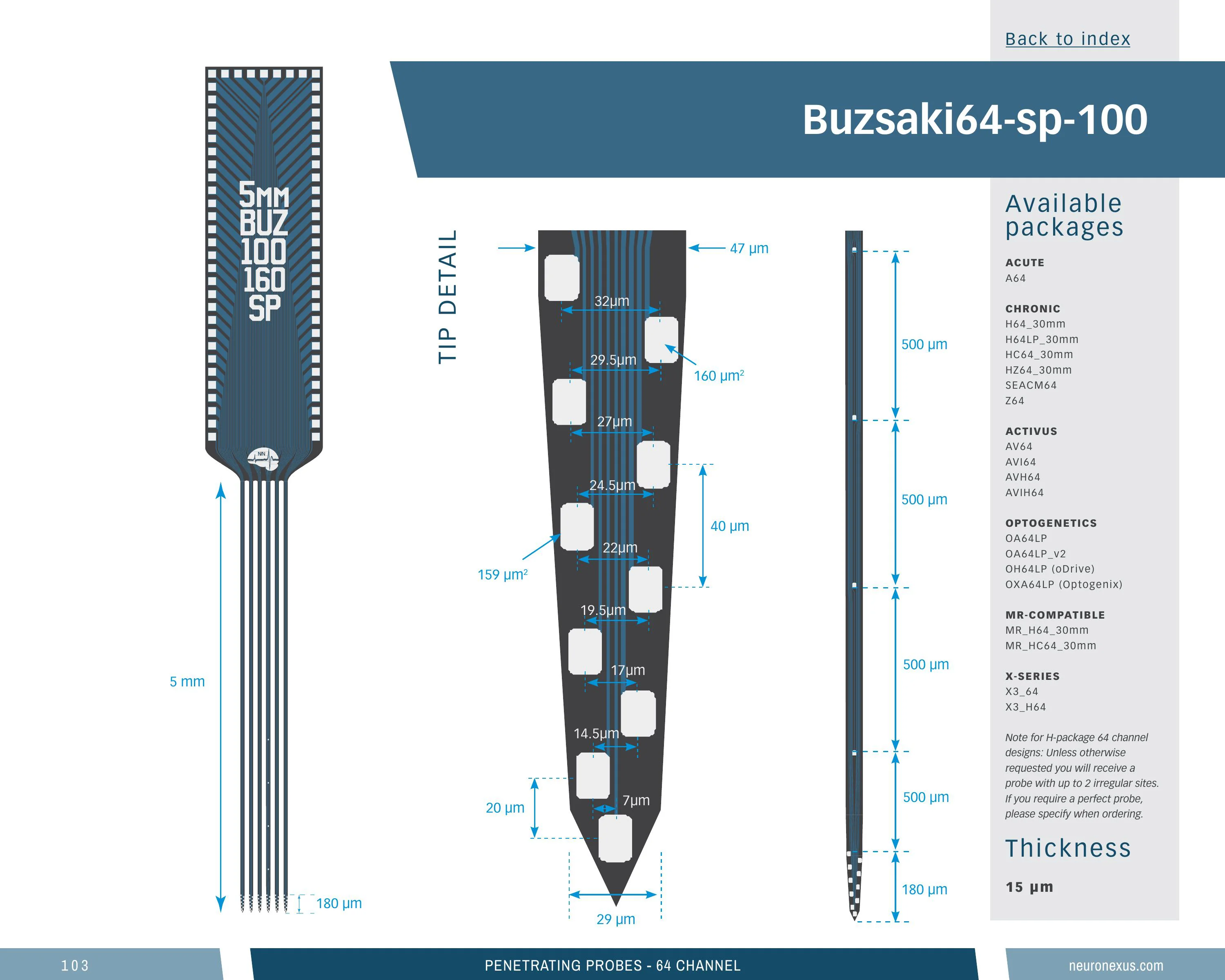

Buzsaki Single-Shank 64-Channel Probe, 5 mm

64Sites
1Shanks
5mmShank Length
20µmSite Pitch
Part no.Buz64-SP-100-5mm
Contents

64-site Buzsaki probe, 1 shank

A single mid-length shank with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 2 mm-deep site array (81st percentile), 59 sites/mm² (23rd percentile) and a 1.3 mm³ neural interface (82nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 5 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

buzsaki64_sp_100 · Buz64_sp_100-H64LP_30mm

Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

13 specs

Channels64
Shanks1
Shank length5 mm
Site layoutBuzsaki
Site area165 µm²
Site pitch20 µm
Vertical span1995 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.301 mm³ (higher than 82% of 369 designs)
Site coverage density59.1 sites/mm² (higher than 23% of 369 designs)
Brain coverage density49.2 sites/mm³ (higher than 55% of 369 designs)
Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64_60MM — 64-ch
H64LP — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel single-shank silicon probe, 5 mm
SKUprb_abz--buz64_sp_100_5mm.15um.h64lp_30mm
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

Loading the compatible products…

Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 7% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 53% of its family
Maximum site depth
4.99 mm
0.972 mm51.29 mm

Top 49% of catalog designs

Maximum site depth 4.99 mm — higher than 51% of catalog designs and 53% of its family
Minimum site depth
2.99 mm
0.067 mm44.74 mm

Top 71% of catalog designs

Minimum site depth 2.99 mm — higher than 29% of catalog designs and 20% of its family
Span, x
0.543 mm
0.01 mm6.03 mm

Top 45% of catalog designs

Span, x 0.543 mm — higher than 55% of catalog designs and 20% of its family
Span, y
2 mm
0.01 mm10.55 mm

Top 19% of catalog designs

Span, y 2 mm — higher than 81% of catalog designs and 87% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 73% of its family
Site outline area
1.08 mm²
0.002 mm²28.74 mm²

Top 18% of catalog designs

Site outline area 1.08 mm² — higher than 82% of catalog designs and 60% of its family
Neural interface volume
1.3 mm³
0.149 mm³17.19 mm³

Top 18% of catalog designs

Neural interface volume 1.3 mm³ — higher than 82% of catalog designs and 60% of its family
Site coverage density
59.08 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 77% of catalog designs

Site coverage density 59.08 sites/mm² — higher than 23% of catalog designs and 40% of its family
Brain coverage density
49.19 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 45% of catalog designs

Brain coverage density 49.19 sites/mm³ — higher than 55% of catalog designs and 40% of its family
Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

15 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki Single-Shank 64-Channel Probe, 5 mmSKU prb_abz--buz64_sp_100_5mm

Cited in 2,342 publications (product line)
