Neural Probes · A-Series (Polytrode & Tetrode)

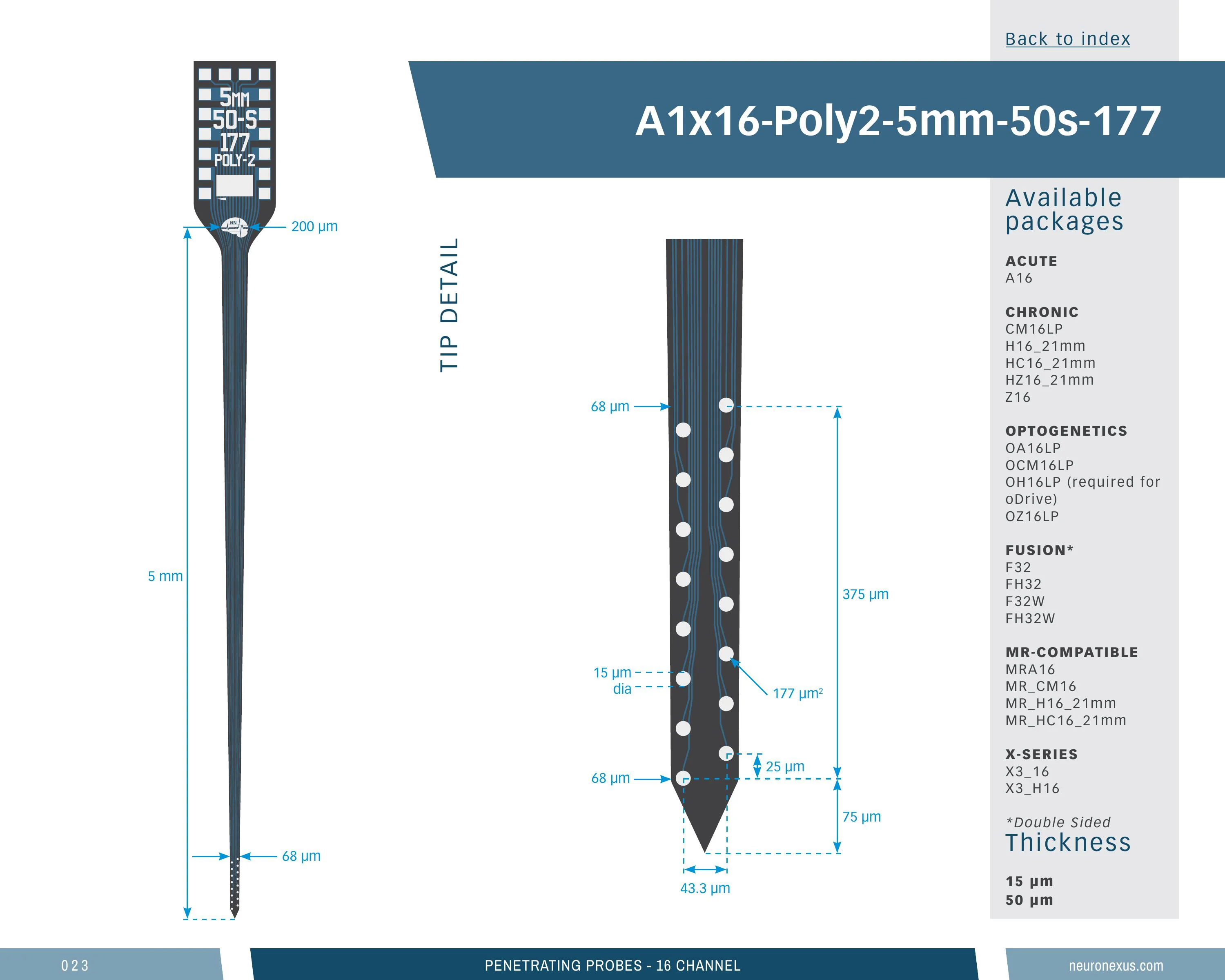

Single-Shank 16-Channel Probe, 5 mm

16Sites
1Shanks
5mmShank Length
25µmSite Pitch
Part no.A1x16-Poly2-5mm-50s-177
Contents

16-site A-Series polytrode/tetrode probe, 1 shank

A single mid-length shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.39 mm-deep site array (25th percentile), 706 sites/mm² (76th percentile) and a 0.25 mm³ neural interface (9th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x16_poly2_5mm_50s_177

Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

13 specs

Channels16
Shanks1
Shank length5 mm
Site layoutPoly2
Site area177 µm²
Site pitch25 µm
Vertical span390 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.248 mm³ (higher than 9% of 369 designs)
Site coverage density705.8 sites/mm² (higher than 76% of 369 designs)
Brain coverage density64.4 sites/mm³ (higher than 70% of 369 designs)
Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

50 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 (21 mm cable) — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel single-shank silicon probe, 5 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_ahc--a1x16_poly2_5mm_50s_177.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

50 of 50
Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

Loading the compatible products…

Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 17% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Maximum site depth
4.93 mm
0.972 mm51.29 mm

Top 73% of catalog designs

Maximum site depth 4.93 mm — higher than 27% of catalog designs and 28% of its family
Minimum site depth
4.54 mm
0.067 mm44.74 mm

Top 48% of catalog designs

Minimum site depth 4.54 mm — higher than 52% of catalog designs and 44% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 65% of catalog designs

Span, x 0.058 mm — higher than 35% of catalog designs and 15% of its family
Span, y
0.39 mm
0.01 mm10.55 mm

Top 75% of catalog designs

Span, y 0.39 mm — higher than 25% of catalog designs and 39% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its family
Site outline area
0.023 mm²
0.002 mm²28.74 mm²

Top 84% of catalog designs

Site outline area 0.023 mm² — higher than 16% of catalog designs and 7% of its family
Neural interface volume
0.248 mm³
0.149 mm³17.19 mm³

Top 91% of catalog designs

Neural interface volume 0.248 mm³ — higher than 9% of catalog designs and 13% of its family
Site coverage density
705.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 24% of catalog designs

Site coverage density 705.8 sites/mm² — higher than 76% of catalog designs and 80% of its family
Brain coverage density
64.43 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 30% of catalog designs

Brain coverage density 64.43 sites/mm³ — higher than 70% of catalog designs and 29% of its family
Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 16-Channel Probe, 5 mmSKU prb_ahc--a1x16_poly2_5mm_50s_177

Cited in 2,342 publications (product line)
