Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 16-Channel Probe, 6 mm

16Sites
1Shanks
6mmShank Length
38µmSite Pitch
Part no.A1x16-Poly2-6mm-71s-177-Ref
Contact us to order
Contents

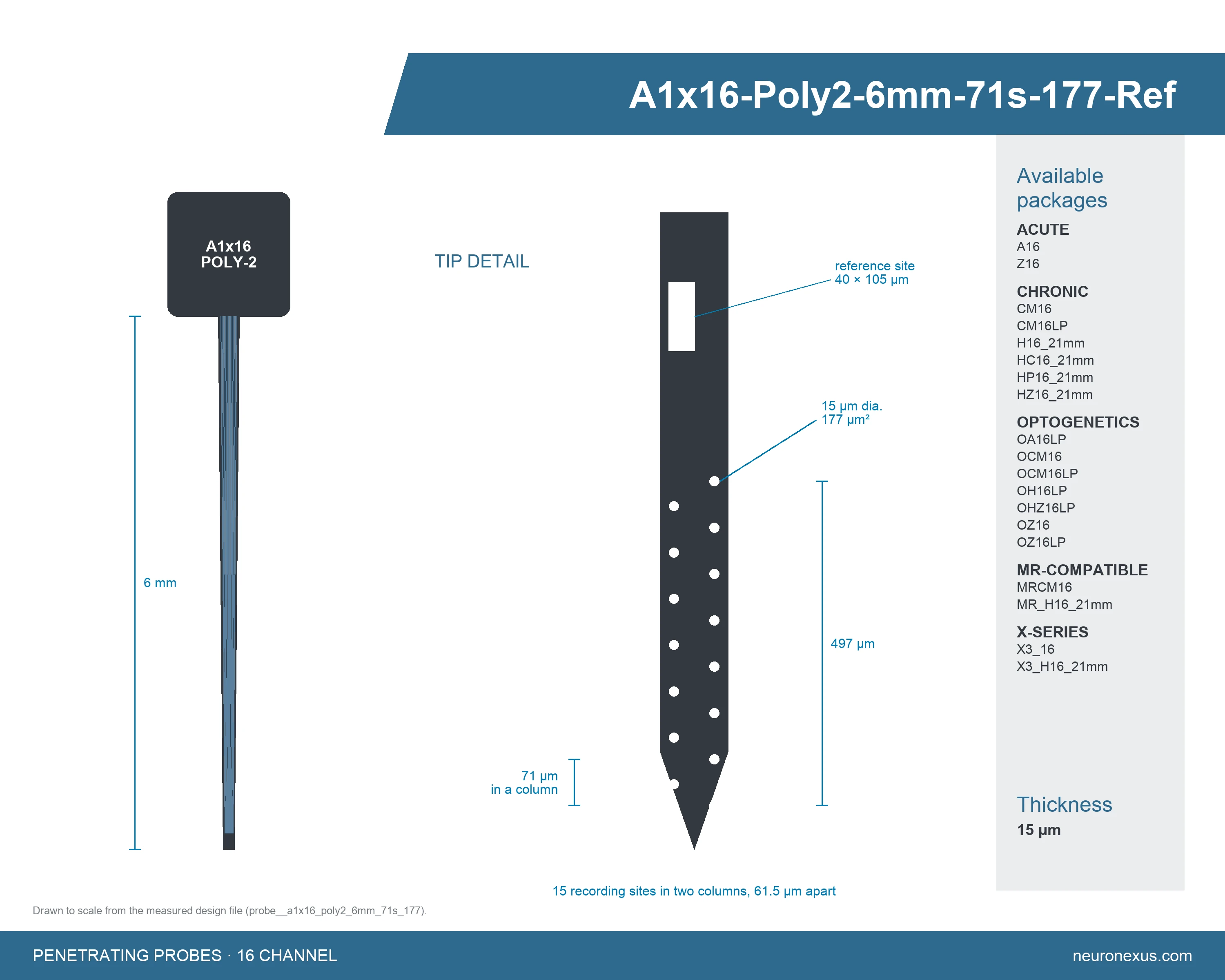

16-site A-Series polytrode/tetrode probe, 1 shank, 6 mm

A single mid-length shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 6 mm shanks (61st percentile of the 366 measured), a 0.81 mm-deep site array (51st percentile), 256 sites/mm² (52nd percentile) and a 0.38 mm³ neural interface (24th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

A1x16-Poly2-6mm-71s-177-Ref · a1x16_poly2_6mm_71s_177

Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

13 specs

Channels16
Shanks1
Shank length6 mm
Site layoutPoly2
Site area177 µm²
Site pitch38 µm
Vertical span810 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.378 mm³ (higher than 24% of 369 designs)
Site coverage density255.9 sites/mm² (higher than 52% of 369 designs)
Brain coverage density42.3 sites/mm³ (higher than 44% of 369 designs)
NetSuite ID

13078

Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

Narrow the options with the filters or pick a card, then contact us to order that configuration.

1 option

Your selection

16-channel single-shank silicon probe, 6 mm — 15 μm, CM16LP
CM16LP
SKUprb_ahc--a1x16_poly2_6mm_71s_177.15um.cm16lp
Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

Loading the compatible products…

Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 17% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 65% of its family
Maximum site depth
5.94 mm
0.972 mm51.29 mm

Top 46% of catalog designs

Maximum site depth 5.94 mm — higher than 54% of catalog designs and 55% of its family
Minimum site depth
5.13 mm
0.067 mm44.74 mm

Top 38% of catalog designs

Minimum site depth 5.13 mm — higher than 62% of catalog designs and 59% of its family
Span, x
0.077 mm
0.01 mm6.03 mm

Top 63% of catalog designs

Span, x 0.077 mm — higher than 37% of catalog designs and 20% of its family
Span, y
0.81 mm
0.01 mm10.55 mm

Top 49% of catalog designs

Span, y 0.81 mm — higher than 51% of catalog designs and 72% of its family
Site pitch, x
0.031 µm
0.012 µm0.57 µm

Top 24% of catalog designs

Site pitch, x 0.031 µm — higher than 76% of catalog designs and 74% of its family
Site pitch, y
0.038 µm
0.01 µm1.5 µm

Top 64% of catalog designs

Site pitch, y 0.038 µm — higher than 36% of catalog designs and 88% of its family
Site outline area
0.063 mm²
0.002 mm²28.74 mm²

Top 64% of catalog designs

Site outline area 0.063 mm² — higher than 36% of catalog designs and 31% of its family
Neural interface volume
0.378 mm³
0.149 mm³17.19 mm³

Top 76% of catalog designs

Neural interface volume 0.378 mm³ — higher than 24% of catalog designs and 35% of its family
Site coverage density
255.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 48% of catalog designs

Site coverage density 255.9 sites/mm² — higher than 52% of catalog designs and 47% of its family
Brain coverage density
42.33 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 56% of catalog designs

Brain coverage density 42.33 sites/mm³ — higher than 44% of catalog designs and 16% of its family
Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

3 notes · Geometry · Construction · Packaging and connector options

Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 16-Channel Probe, 6 mmSKU prb_ahc--a1x16_poly2_6mm_71s_177NetSuite 13078

Cited in 2,342 publications (product line)
