Single-Shank 32-Channel Probe, 3 mm
32-site A-Series polytrode/tetrode probe, 1 shank, 3 mm
A single short shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.79 mm-deep site array (49th percentile), 697 sites/mm² (75th percentile) and a 0.36 mm³ neural interface (20th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shank suits superficial targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 4 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

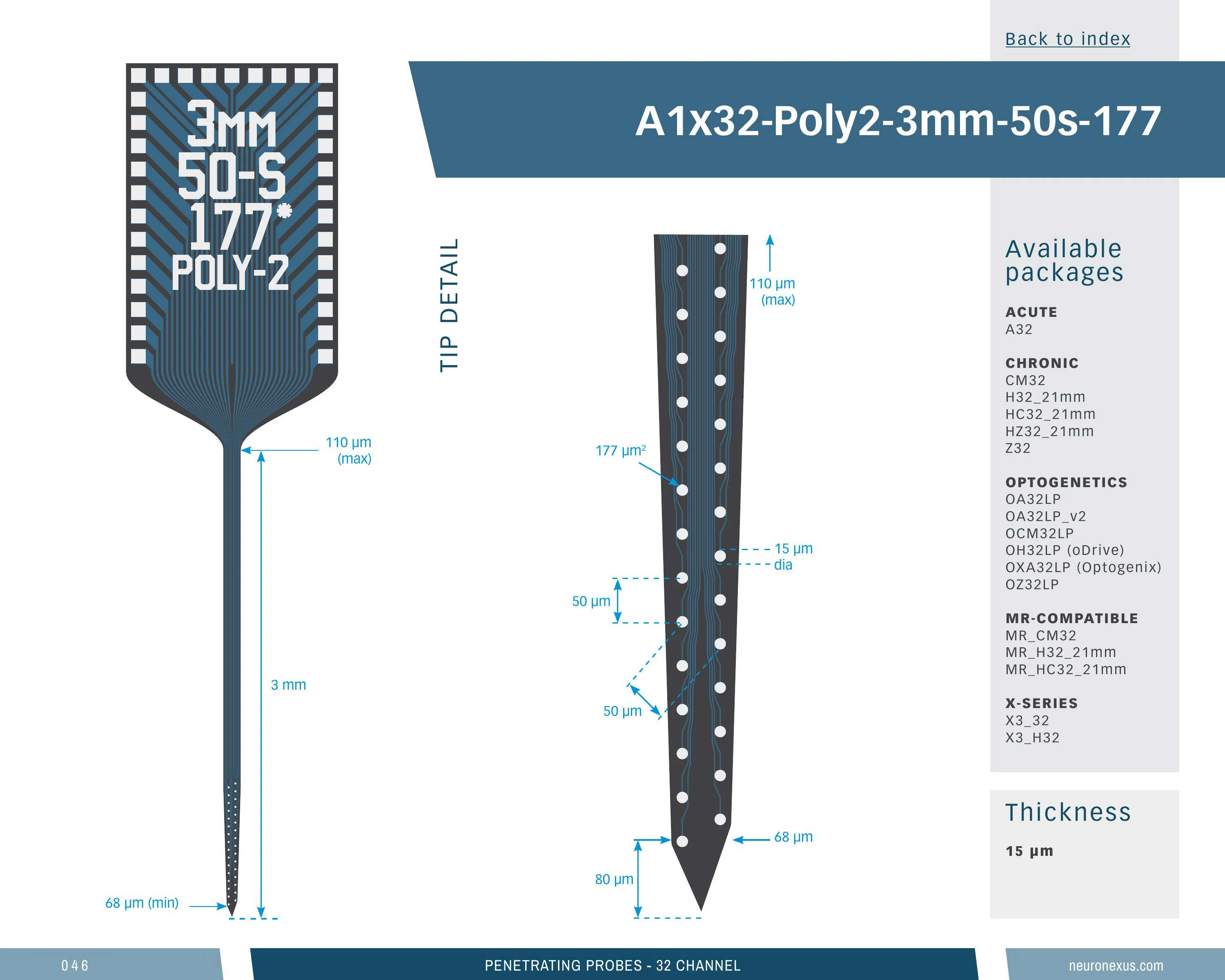

a1x32_poly2_3mm_50s_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 1 |
| Shank length | 3 mm |
| Site layout | Poly2 |
| Site area | 177 µm² |
| Site pitch | 25 µm |
| Vertical span | 790 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.360 mm³ (higher than 20% of 369 designs) |
| Site coverage density | 697.1 sites/mm² (higher than 75% of 369 designs) |
| Brain coverage density | 88.9 sites/mm³ (higher than 83% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
24 options
Configure
Your selection
32-channel single-shank silicon probe, 3 mm — 15 μm, A32
A32Options
24 of 24A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OXA32LP — 32-ch Samtec
MROCM32LP — 32-ch Omnetics
OCM32LP — 32-ch Omnetics
OXCM32LP — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
MRCM16PB32 — 16-ch
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
Z32 — 32-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 56% of its familyTop 58% of catalog designs
Shanks 1 — higher than 42% of catalog designs and 35% of its familyTop 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 12% of its familyTop 90% of catalog designs
Maximum site depth 2.93 mm — higher than 10% of catalog designs and 5% of its familyTop 84% of catalog designs
Minimum site depth 2.14 mm — higher than 16% of catalog designs and 9% of its familyTop 66% of catalog designs
Span, x 0.058 mm — higher than 34% of catalog designs and 12% of its familyTop 51% of catalog designs
Span, y 0.79 mm — higher than 49% of catalog designs and 67% of its familyTop 11% of catalog designs
Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its familyTop 68% of catalog designs
Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its familyTop 70% of catalog designs
Site outline area 0.046 mm² — higher than 30% of catalog designs and 20% of its familyTop 80% of catalog designs
Neural interface volume 0.36 mm³ — higher than 20% of catalog designs and 31% of its familyTop 25% of catalog designs
Site coverage density 697.1 sites/mm² — higher than 75% of catalog designs and 79% of its familyTop 17% of catalog designs
Brain coverage density 88.9 sites/mm³ — higher than 83% of catalog designs and 56% of its family5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …
