Neural Probes · A-Series (Polytrode & Tetrode)

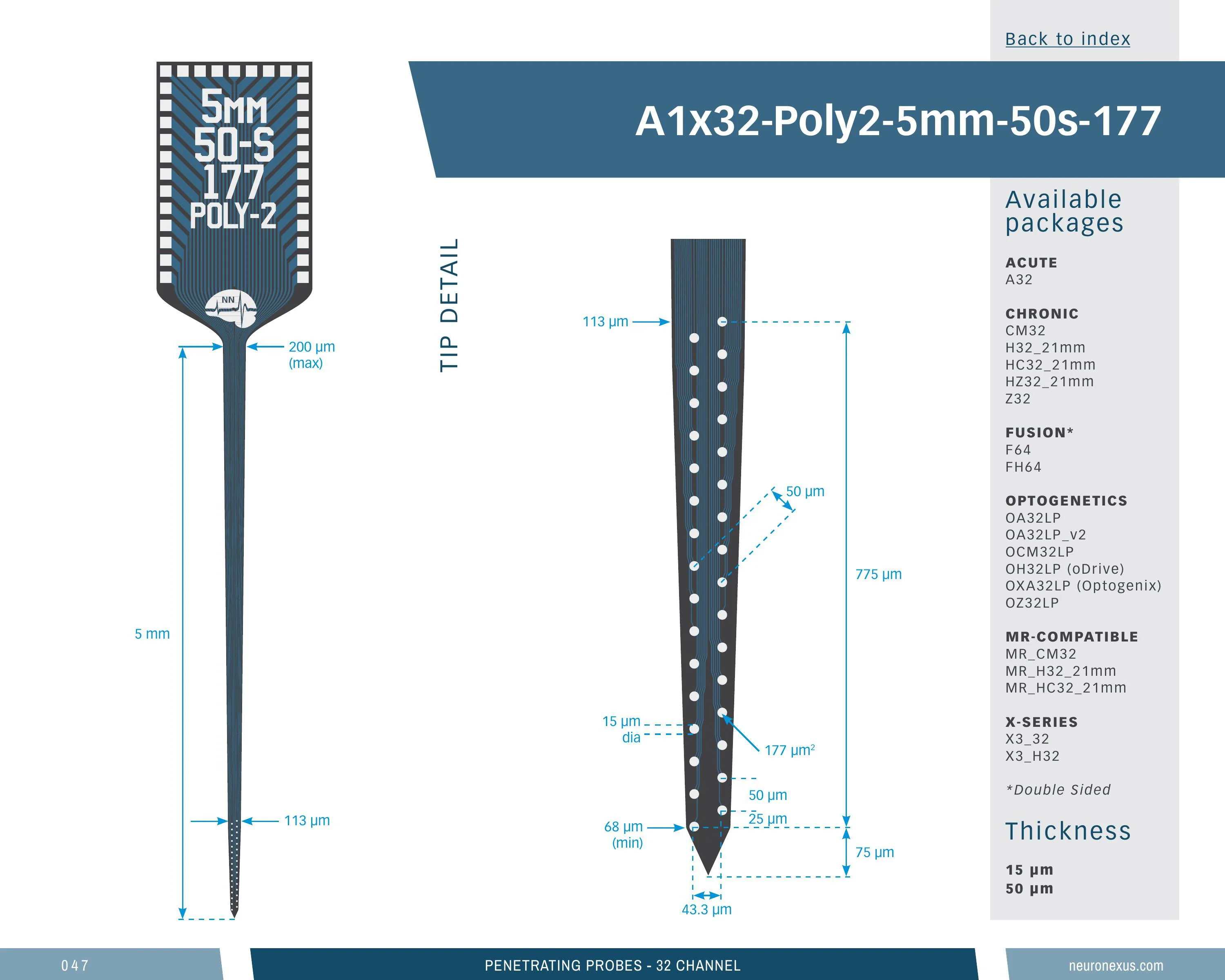

Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
25µmSite Pitch
Part no.A1x32-Poly2-5mm-50s-177
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 5 mm, 25 µm pitch

A single mid-length shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.79 mm-deep site array (49th percentile), 697 sites/mm² (75th percentile) and a 0.36 mm³ neural interface (20th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly2_5mm_50s_177

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

13 specs

Channels32
Shanks1
Shank length5 mm
Site layoutPoly2
Site area177 µm²
Site pitch25 µm
Vertical span790 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.360 mm³ (higher than 20% of 369 designs)
Site coverage density697.1 sites/mm² (higher than 75% of 369 designs)
Brain coverage density88.9 sites/mm³ (higher than 83% of 369 designs)
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly2_5mm_50s_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Maximum site depth
4.93 mm
0.972 mm51.29 mm

Top 73% of catalog designs

Maximum site depth 4.93 mm — higher than 27% of catalog designs and 27% of its family
Minimum site depth
4.14 mm
0.067 mm44.74 mm

Top 59% of catalog designs

Minimum site depth 4.14 mm — higher than 41% of catalog designs and 29% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 66% of catalog designs

Span, x 0.058 mm — higher than 34% of catalog designs and 12% of its family
Span, y
0.79 mm
0.01 mm10.55 mm

Top 51% of catalog designs

Span, y 0.79 mm — higher than 49% of catalog designs and 67% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its family
Site outline area
0.046 mm²
0.002 mm²28.74 mm²

Top 70% of catalog designs

Site outline area 0.046 mm² — higher than 30% of catalog designs and 20% of its family
Neural interface volume
0.36 mm³
0.149 mm³17.19 mm³

Top 80% of catalog designs

Neural interface volume 0.36 mm³ — higher than 20% of catalog designs and 31% of its family
Site coverage density
697.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 25% of catalog designs

Site coverage density 697.1 sites/mm² — higher than 75% of catalog designs and 79% of its family
Brain coverage density
88.9 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 17% of catalog designs

Brain coverage density 88.9 sites/mm³ — higher than 83% of catalog designs and 56% of its family
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

17 links · Choosing an Electrode for Your Experiment · Care, Use and Handling · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly2_5mm_50s_177

Cited in 2,342 publications (product line)
