Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 32-Channel Probe, 10 mm

32Sites
1Shanks
10mmShank Length
25µmSite Pitch
Part no.A1x32-Poly3-10mm50s-177
Contact us to order
Contents

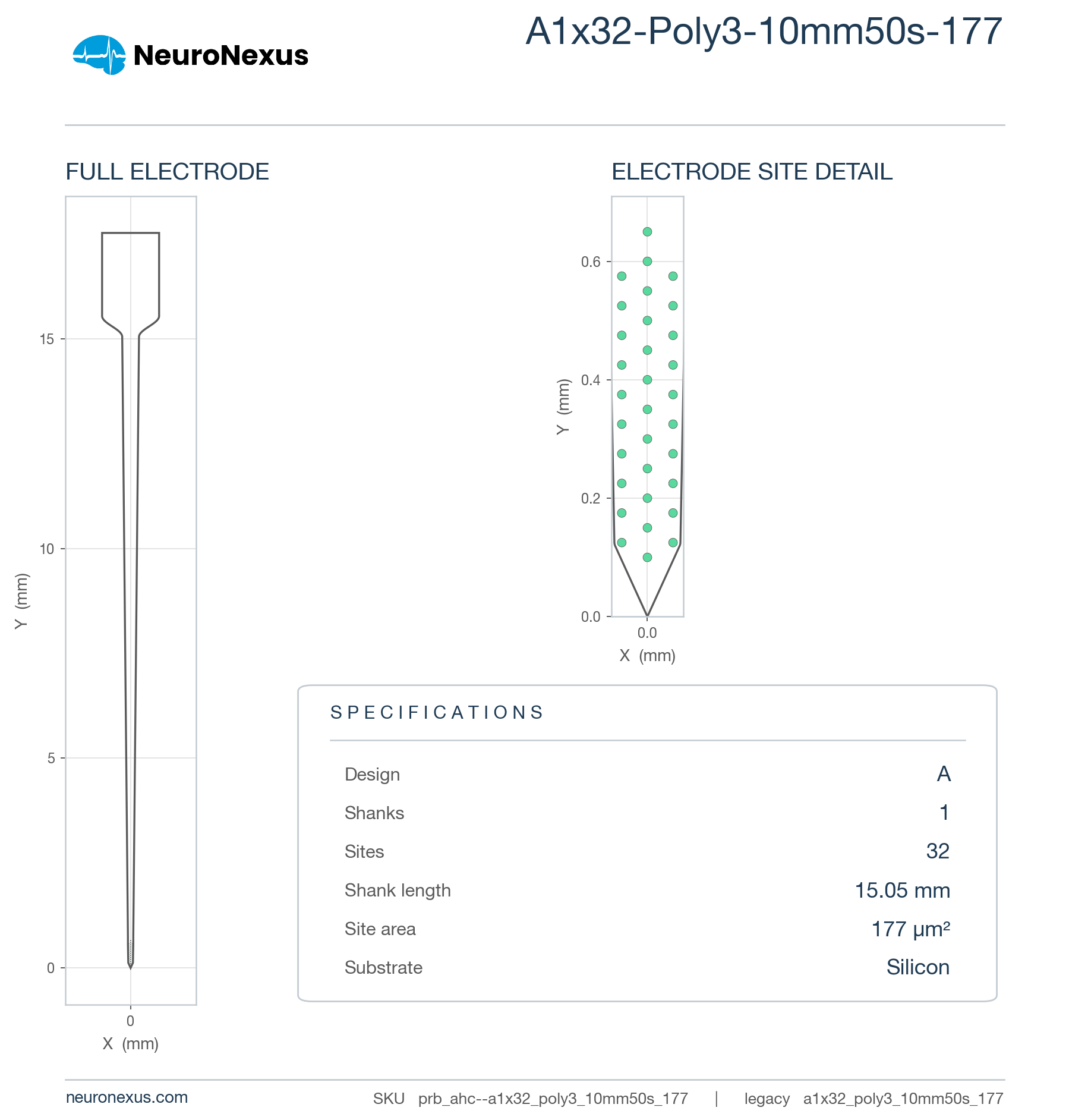

32-channel single-shank silicon probe, 10 mm

32-channel silicon probe — a single shank carrying poly3 sites (177 µm², 25 µm pitch) on 10 mm shank. Sites in close columns or clusters of four on the shank, for single-unit isolation and current-source density analysis.

Also known as

a1x32_poly3_10mm50s_177

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

13 specs

Channels32
Shanks1
Shank length10 mm
Site layoutPoly3
Site area177 µm²
Site pitch25 µm
Vertical span565 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.320 mm³ (higher than 14% of 369 designs)
Site coverage density558.4 sites/mm² (higher than 70% of 369 designs)
Brain coverage density99.9 sites/mm³ (higher than 88% of 369 designs)
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

8 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
OA32 — 32-ch
OA32LP — 32-ch Samtec
OA64LP — 64-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OXA32LP — 32-ch Samtec
X3_H32 (21 mm cable) — 32-ch Molex

Your selection

32-channel single-shank silicon probe, 10 mm — 15 μm, OA32
OA32
Substrate Thickness: 15 μm
Compatible Package: OA32 — 32-ch
SKUprb_ahc--a1x32_poly3_10mm50s_177.15um.oa32

Options

8 of 8
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Maximum site depth
9.91 mm
0.972 mm51.29 mm

Top 30% of catalog designs

Maximum site depth 9.91 mm — higher than 70% of catalog designs and 81% of its family
Minimum site depth
9.34 mm
0.067 mm44.74 mm

Top 13% of catalog designs

Minimum site depth 9.34 mm — higher than 87% of catalog designs and 88% of its family
Span, x
0.101 mm
0.01 mm6.03 mm

Top 61% of catalog designs

Span, x 0.101 mm — higher than 39% of catalog designs and 28% of its family
Span, y
0.565 mm
0.01 mm10.55 mm

Top 69% of catalog designs

Span, y 0.565 mm — higher than 31% of catalog designs and 53% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its family
Site outline area
0.057 mm²
0.002 mm²28.74 mm²

Top 65% of catalog designs

Site outline area 0.057 mm² — higher than 35% of catalog designs and 27% of its family
Neural interface volume
0.32 mm³
0.149 mm³17.19 mm³

Top 86% of catalog designs

Neural interface volume 0.32 mm³ — higher than 14% of catalog designs and 23% of its family
Site coverage density
558.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 30% of catalog designs

Site coverage density 558.4 sites/mm² — higher than 70% of catalog designs and 72% of its family
Brain coverage density
99.93 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 12% of catalog designs

Brain coverage density 99.93 sites/mm³ — higher than 88% of catalog designs and 67% of its family
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

3 notes · Geometry · Construction · Packaging and connector options

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm50s_177

Cited in 2,342 publications (product line)
