Neural Probes · A-Series (Polytrode & Tetrode)

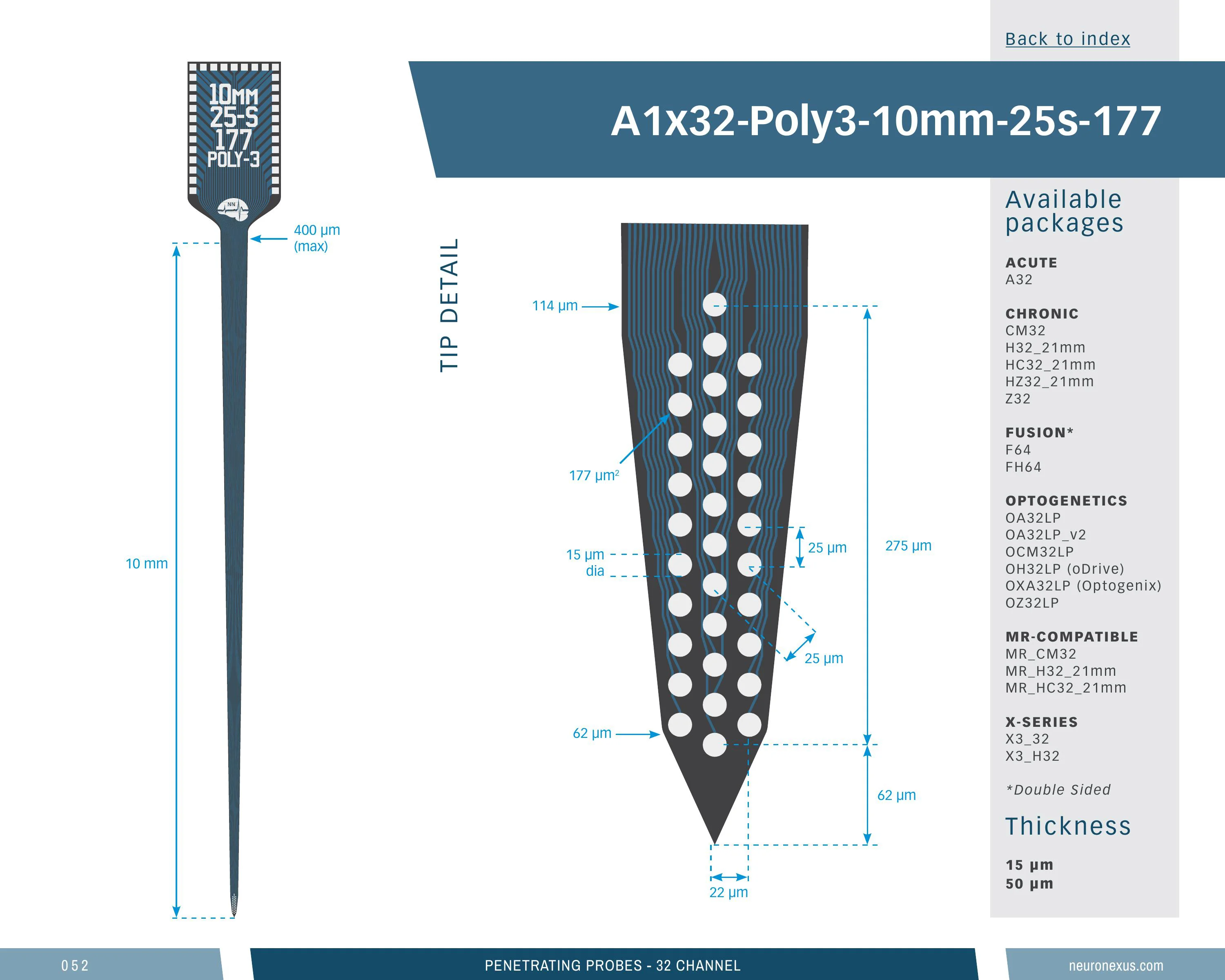

Single-Shank 32-Channel Probe, 10 mm

32Sites
1Shanks
10mmShank Length
12.5µmSite Pitch
Part no.A1x32-Poly3-10mm-25s-177
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 10 mm, 12.5 µm pitch

A single long shank with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is in the lower quartile: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.29 mm-deep site array (15th percentile), 1,899 sites/mm² (96th percentile) and a 0.22 mm³ neural interface (5th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly3_10mm_25s_177

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

13 specs

Channels32
Shanks1
Shank length10 mm
Site layoutPoly3
Site area177 µm²
Site pitch12.5 µm
Vertical span290 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.220 mm³ (higher than 5% of 369 designs)
Site coverage density1,898.6 sites/mm² (higher than 96% of 369 designs)
Brain coverage density145.2 sites/mm³ (higher than 94% of 369 designs)
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 10 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly3_10mm_25s_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Maximum site depth
9.94 mm
0.972 mm51.29 mm

Top 28% of catalog designs

Maximum site depth 9.94 mm — higher than 72% of catalog designs and 85% of its family
Minimum site depth
9.66 mm
0.067 mm44.74 mm

Top 10% of catalog designs

Minimum site depth 9.66 mm — higher than 90% of catalog designs and 93% of its family
Span, x
0.058 mm
0.01 mm6.03 mm

Top 65% of catalog designs

Span, x 0.058 mm — higher than 35% of catalog designs and 15% of its family
Span, y
0.29 mm
0.01 mm10.55 mm

Top 85% of catalog designs

Span, y 0.29 mm — higher than 15% of catalog designs and 28% of its family
Site pitch, x
0.022 µm
0.012 µm0.57 µm

Top 36% of catalog designs

Site pitch, x 0.022 µm — higher than 64% of catalog designs and 61% of its family
Site pitch, y
0.013 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.013 µm — higher than 6% of catalog designs and 19% of its family
Site outline area
0.017 mm²
0.002 mm²28.74 mm²

Top 89% of catalog designs

Site outline area 0.017 mm² — higher than 11% of catalog designs and 4% of its family
Neural interface volume
0.22 mm³
0.149 mm³17.19 mm³

Top 95% of catalog designs

Neural interface volume 0.22 mm³ — higher than 5% of catalog designs and 4% of its family
Site coverage density
1898.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 4% of catalog designs

Site coverage density 1898.6 sites/mm² — higher than 96% of catalog designs and 99% of its family
Brain coverage density
145.2 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 6% of catalog designs

Brain coverage density 145.2 sites/mm³ — higher than 94% of catalog designs and 80% of its family
Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a1x32_poly3_10mm_25s_177

Cited in 2,342 publications (product line)
