Neural Probes · A-Series (Polytrode & Tetrode)

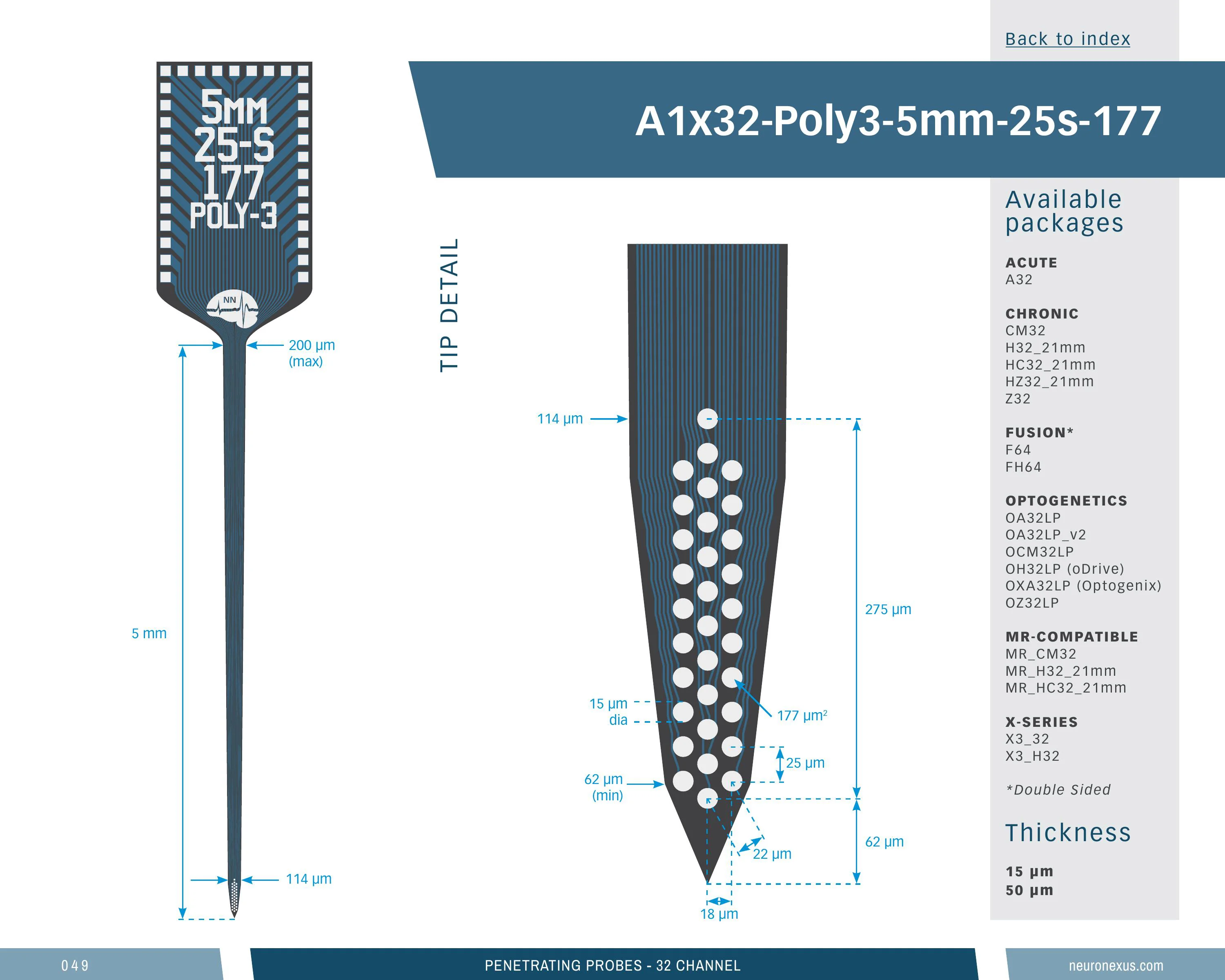

Single-Shank 32-Channel Probe, 5 mm

32Sites
1Shanks
5mmShank Length
12.5µmSite Pitch
Part no.A1x32-Poly3-5mm-25s-177
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 5 mm, 12.5 µm pitch

A single mid-length shank with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is in the lower quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.29 mm-deep site array (15th percentile), 2,198 sites/mm² (97th percentile) and a 0.22 mm³ neural interface (4th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly3_5mm_25s_177

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

13 specs

Channels32
Shanks1
Shank length5 mm
Site layoutPoly3
Site area177 µm²
Site pitch12.5 µm
Vertical span290 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.217 mm³ (higher than 4% of 369 designs)
Site coverage density2,198.2 sites/mm² (higher than 97% of 369 designs)
Brain coverage density147.3 sites/mm³ (higher than 95% of 369 designs)
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 (21 mm cable) — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly3_5mm_25s_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Maximum site depth
4.94 mm
0.972 mm51.29 mm

Top 73% of catalog designs

Maximum site depth 4.94 mm — higher than 27% of catalog designs and 29% of its family
Minimum site depth
4.66 mm
0.067 mm44.74 mm

Top 43% of catalog designs

Minimum site depth 4.66 mm — higher than 57% of catalog designs and 51% of its family
Span, x
0.05 mm
0.01 mm6.03 mm

Top 67% of catalog designs

Span, x 0.05 mm — higher than 33% of catalog designs and 7% of its family
Span, y
0.29 mm
0.01 mm10.55 mm

Top 85% of catalog designs

Span, y 0.29 mm — higher than 15% of catalog designs and 25% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 47% of catalog designs

Site pitch, x 0.018 µm — higher than 53% of catalog designs and 51% of its family
Site pitch, y
0.013 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.013 µm — higher than 6% of catalog designs and 19% of its family
Site outline area
0.015 mm²
0.002 mm²28.74 mm²

Top 91% of catalog designs

Site outline area 0.015 mm² — higher than 9% of catalog designs and 1% of its family
Neural interface volume
0.217 mm³
0.149 mm³17.19 mm³

Top 96% of catalog designs

Neural interface volume 0.217 mm³ — higher than 4% of catalog designs and 1% of its family
Site coverage density
2198.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 3% of catalog designs · largest in its family

Site coverage density 2198.2 sites/mm² — higher than 97% of catalog designs and 100% of its family (the largest in its family, 75 designs)
Brain coverage density
147.3 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 5% of catalog designs

Brain coverage density 147.3 sites/mm³ — higher than 95% of catalog designs and 83% of its family
Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a1x32_poly3_5mm_25s_177

Cited in 2,342 publications (product line)
