Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 32-Channel Probe, 6 mm

32Sites
1Shanks
6mmShank Length
50µmSite Pitch

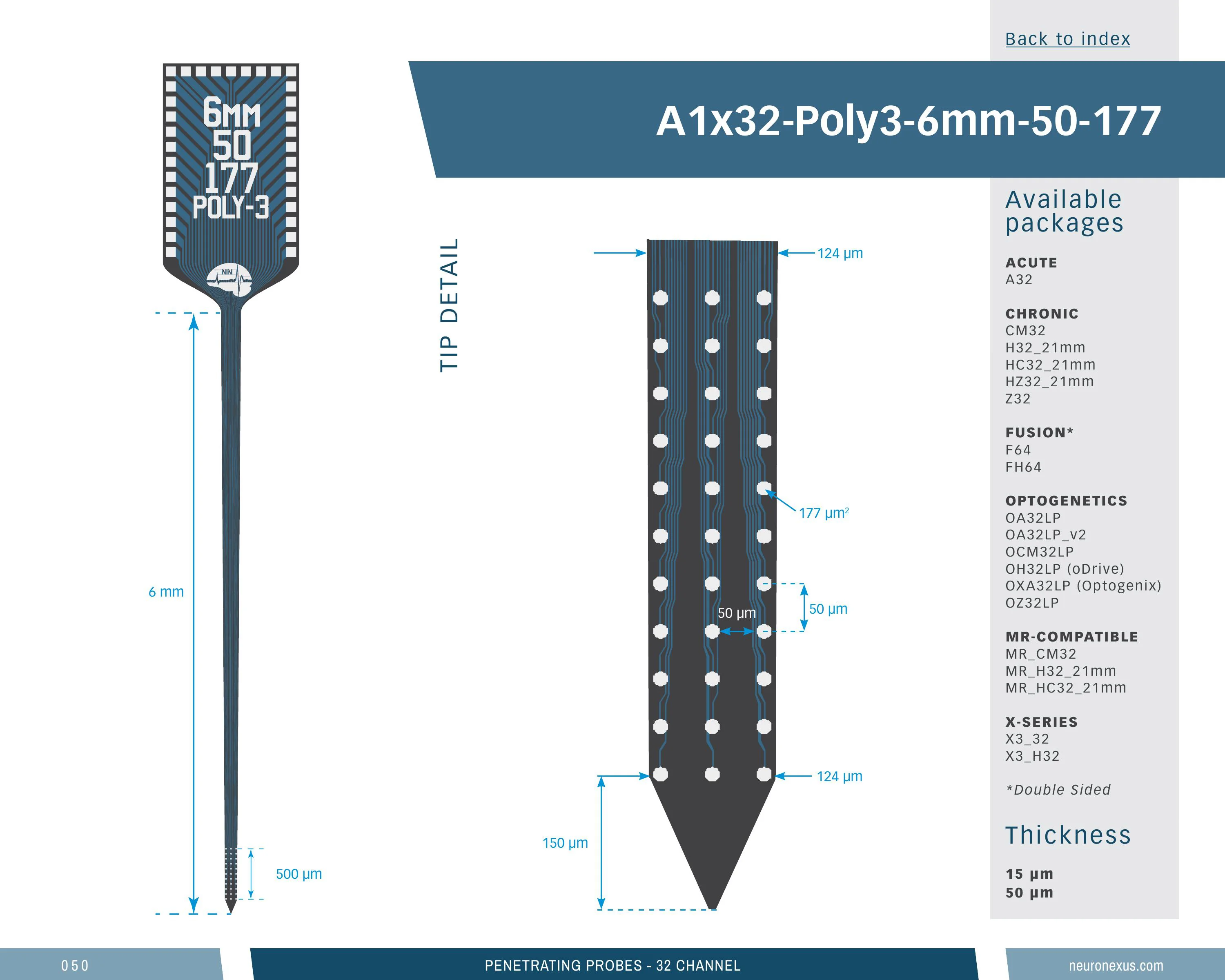

Part no.A1x32-Poly3-6mm-50-177
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 6 mm, 177 µm²

A single mid-length shank with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (61st percentile of the 366 measured), a 0.51 mm-deep site array (28th percentile), 541 sites/mm² (69th percentile) and a 0.31 mm³ neural interface (13th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly3_6mm_50_177

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

13 specs

Channels32
Shanks1
Shank length6 mm
Site layoutPoly3
Site area177 µm²
Site pitch50 µm
Vertical span515 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.312 mm³ (higher than 13% of 369 designs)
Site coverage density541.2 sites/mm² (higher than 69% of 369 designs)
Brain coverage density102.6 sites/mm³ (higher than 89% of 369 designs)
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 6 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly3_6mm_50_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 65% of its family
Maximum site depth
5.86 mm
0.972 mm51.29 mm

Top 46% of catalog designs

Maximum site depth 5.86 mm — higher than 54% of catalog designs and 52% of its family
Minimum site depth
5.34 mm
0.067 mm44.74 mm

Top 37% of catalog designs

Minimum site depth 5.34 mm — higher than 63% of catalog designs and 60% of its family
Span, x
0.115 mm
0.01 mm6.03 mm

Top 60% of catalog designs

Span, x 0.115 mm — higher than 40% of catalog designs and 33% of its family
Span, y
0.515 mm
0.01 mm10.55 mm

Top 72% of catalog designs

Span, y 0.515 mm — higher than 28% of catalog designs and 45% of its family
Site pitch, x
0.05 µm
0.012 µm0.57 µm

Top 7% of catalog designs

Site pitch, x 0.05 µm — higher than 93% of catalog designs and 94% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 96% of its family
Site outline area
0.059 mm²
0.002 mm²28.74 mm²

Top 65% of catalog designs

Site outline area 0.059 mm² — higher than 35% of catalog designs and 28% of its family
Neural interface volume
0.312 mm³
0.149 mm³17.19 mm³

Top 87% of catalog designs

Neural interface volume 0.312 mm³ — higher than 13% of catalog designs and 17% of its family
Site coverage density
541.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 31% of catalog designs

Site coverage density 541.2 sites/mm² — higher than 69% of catalog designs and 67% of its family
Brain coverage density
102.6 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 11% of catalog designs

Brain coverage density 102.6 sites/mm³ — higher than 89% of catalog designs and 68% of its family
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly3_6mm_50_177

Cited in 2,342 publications (product line)
