Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 32-Channel Probe, 8 mm

32Sites
1Shanks
8mmShank Length
25µmSite Pitch

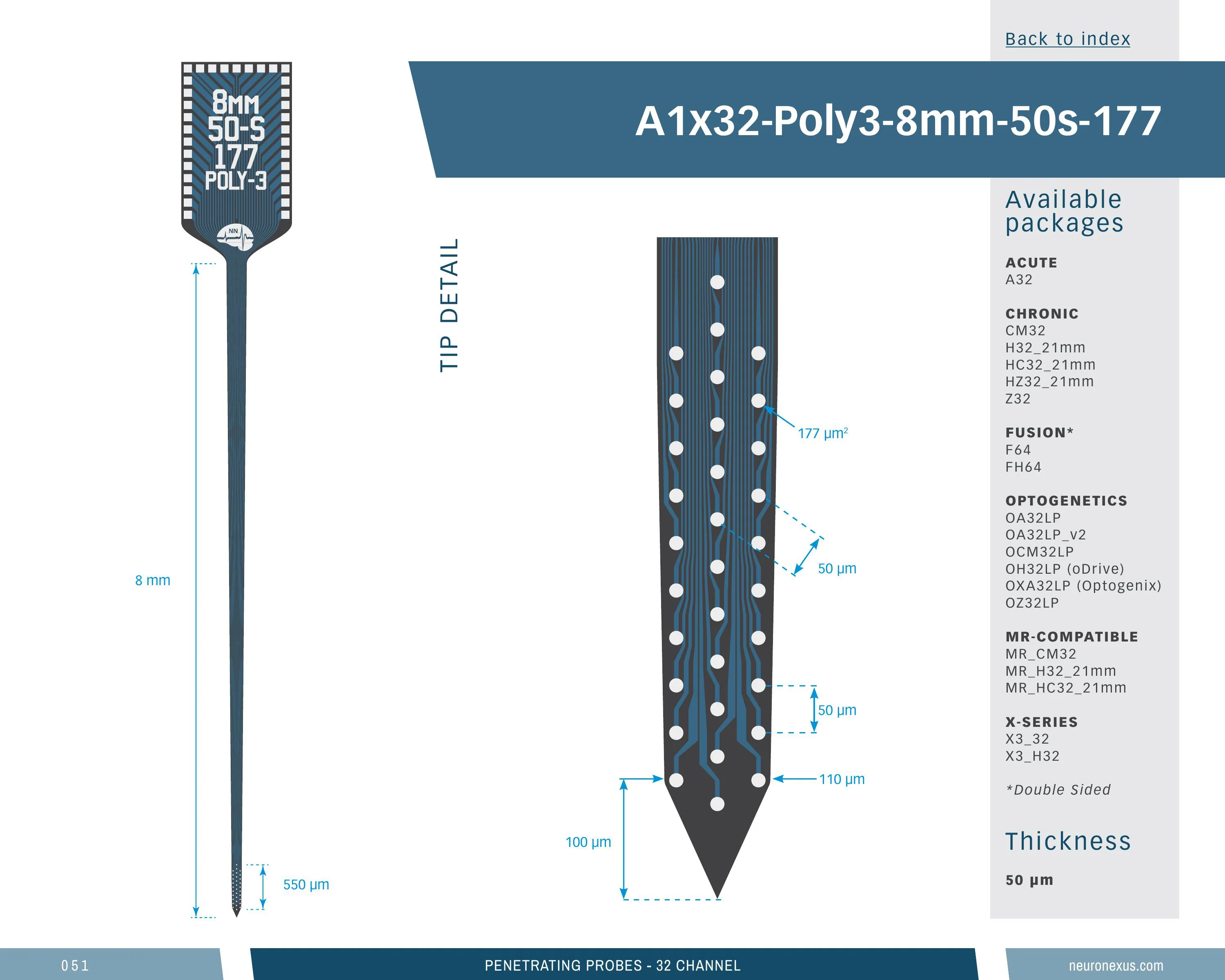

Part no.A1x32-Poly3-8mm-50s-177
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 8 mm

A single long shank with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 8 mm shanks (68th percentile of the 366 measured), a 0.56 mm-deep site array (31st percentile), 558 sites/mm² (70th percentile) and a 0.32 mm³ neural interface (14th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly3_8mm_50s_177

Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

13 specs

Channels32
Shanks1
Shank length8 mm
Site layoutPoly3
Site area177 µm²
Site pitch25 µm
Vertical span565 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.320 mm³ (higher than 14% of 369 designs)
Site coverage density558.4 sites/mm² (higher than 70% of 369 designs)
Brain coverage density99.9 sites/mm³ (higher than 88% of 369 designs)
Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 8 mm — 50 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly3_8mm_50s_177.50um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

Loading the compatible products…

Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
8 mm
1 mm60 mm

Top 32% of catalog designs

Shank length 8 mm — higher than 68% of catalog designs and 79% of its family
Maximum site depth
7.91 mm
0.972 mm51.29 mm

Top 35% of catalog designs

Maximum site depth 7.91 mm — higher than 65% of catalog designs and 72% of its family
Minimum site depth
7.34 mm
0.067 mm44.74 mm

Top 26% of catalog designs

Minimum site depth 7.34 mm — higher than 74% of catalog designs and 76% of its family
Span, x
0.101 mm
0.01 mm6.03 mm

Top 61% of catalog designs

Span, x 0.101 mm — higher than 39% of catalog designs and 28% of its family
Span, y
0.565 mm
0.01 mm10.55 mm

Top 69% of catalog designs

Span, y 0.565 mm — higher than 31% of catalog designs and 53% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its family
Site outline area
0.057 mm²
0.002 mm²28.74 mm²

Top 65% of catalog designs

Site outline area 0.057 mm² — higher than 35% of catalog designs and 27% of its family
Neural interface volume
0.32 mm³
0.149 mm³17.19 mm³

Top 86% of catalog designs

Neural interface volume 0.32 mm³ — higher than 14% of catalog designs and 23% of its family
Site coverage density
558.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 30% of catalog designs

Site coverage density 558.4 sites/mm² — higher than 70% of catalog designs and 72% of its family
Brain coverage density
99.93 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 12% of catalog designs

Brain coverage density 99.93 sites/mm³ — higher than 88% of catalog designs and 67% of its family
Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 8 mmSKU prb_ahc--a1x32_poly3_8mm_50s_177

Cited in 2,342 publications (product line)
