Neural Probes · A-Series (Polytrode & Tetrode)

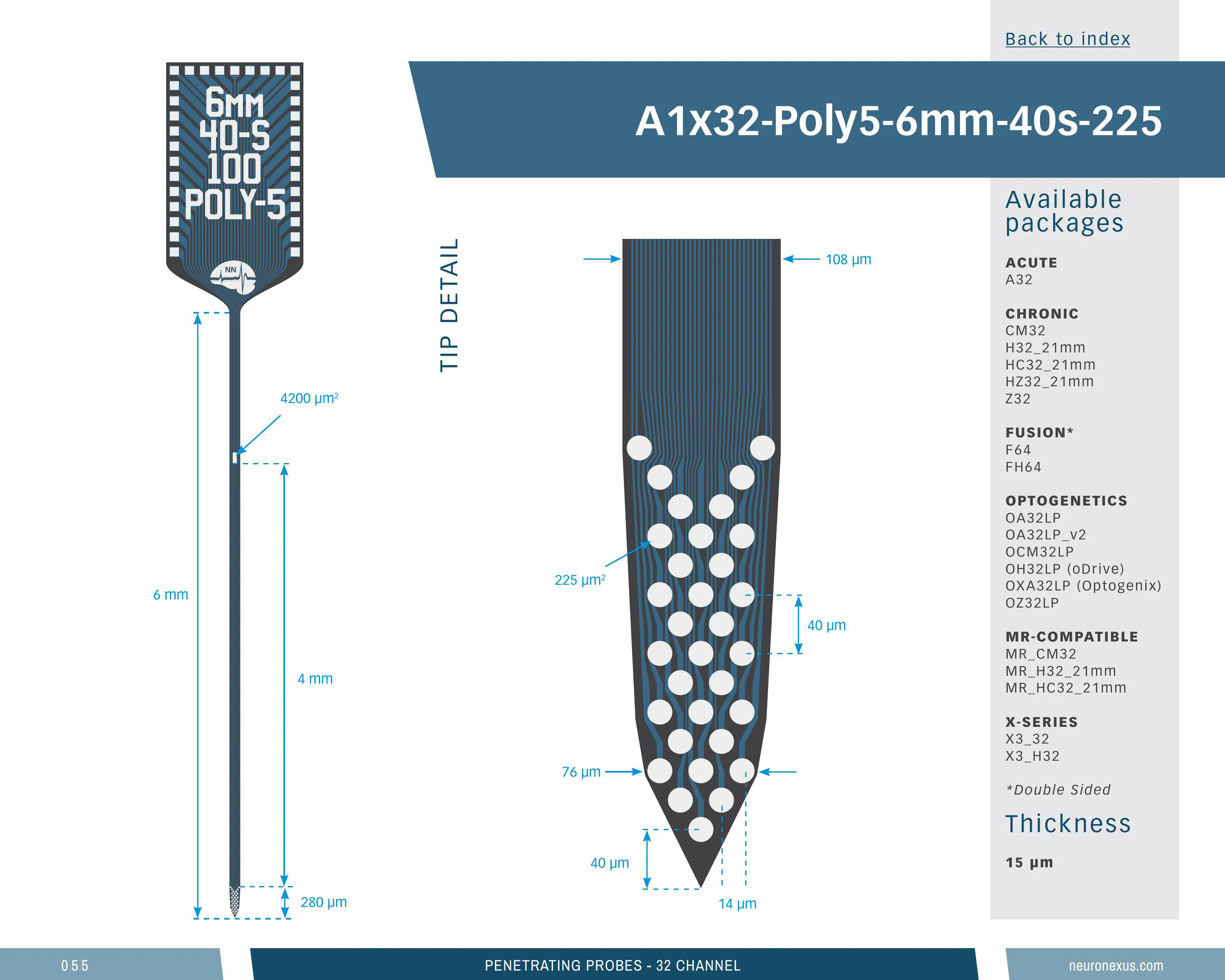

Single-Shank 32-Channel Probe, 6 mm

32Sites
1Shanks
6mmShank Length
20µmSite Pitch
Part no.A1x32-Poly5-6mm-40s-225
Contents

32-site A-Series polytrode/tetrode probe, 1 shank, 6 mm, 220 µm²

A single mid-length shank with sites staggered in five columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (61st percentile of the 366 measured), a 0.28 mm-deep site array (15th percentile), 1,147 sites/mm² (88th percentile) and a 0.23 mm³ neural interface (7th percentile).

Mid-sized sites balance unit isolation against field-potential pickup, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x32_poly5_6mm_40s_225

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

13 specs

Channels32
Shanks1
Shank length6 mm
Site layoutPoly5
Site area220 µm²
Site pitch20 µm
Vertical span277 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.233 mm³ (higher than 7% of 369 designs)
Site coverage density1,146.7 sites/mm² (higher than 88% of 369 designs)
Brain coverage density137.1 sites/mm³ (higher than 93% of 369 designs)
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel single-shank silicon probe, 6 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a1x32_poly5_6mm_40s_225.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

Loading the compatible products…

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 65% of its family
Maximum site depth
5.97 mm
0.972 mm51.29 mm

Top 39% of catalog designs

Maximum site depth 5.97 mm — higher than 61% of catalog designs and 64% of its family
Minimum site depth
5.69 mm
0.067 mm44.74 mm

Top 36% of catalog designs

Minimum site depth 5.69 mm — higher than 64% of catalog designs and 64% of its family
Span, x
0.101 mm
0.01 mm6.03 mm

Top 62% of catalog designs

Span, x 0.101 mm — higher than 38% of catalog designs and 24% of its family
Span, y
0.277 mm
0.01 mm10.55 mm

Top 85% of catalog designs

Span, y 0.277 mm — higher than 15% of catalog designs and 24% of its family
Site pitch, x
0.014 µm
0.012 µm0.57 µm

Top 90% of catalog designs

Site pitch, x 0.014 µm — higher than 10% of catalog designs and 4% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 59% of its family
Site outline area
0.028 mm²
0.002 mm²28.74 mm²

Top 80% of catalog designs

Site outline area 0.028 mm² — higher than 20% of catalog designs and 11% of its family
Neural interface volume
0.233 mm³
0.149 mm³17.19 mm³

Top 93% of catalog designs

Neural interface volume 0.233 mm³ — higher than 7% of catalog designs and 7% of its family
Site coverage density
1146.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 12% of catalog designs

Site coverage density 1146.7 sites/mm² — higher than 88% of catalog designs and 95% of its family
Brain coverage density
137.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 7% of catalog designs

Brain coverage density 137.1 sites/mm³ — higher than 93% of catalog designs and 79% of its family
Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 32-Channel Probe, 6 mmSKU prb_ahc--a1x32_poly5_6mm_40s_225

Cited in 2,342 publications (product line)
