Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 48-Channel Probe, 5 mm

48Sites
1Shanks
5mmShank Length
50µmSite Pitch
Part no.A1x48-Poly2-5mm100s-177
Contact us to order
Contents

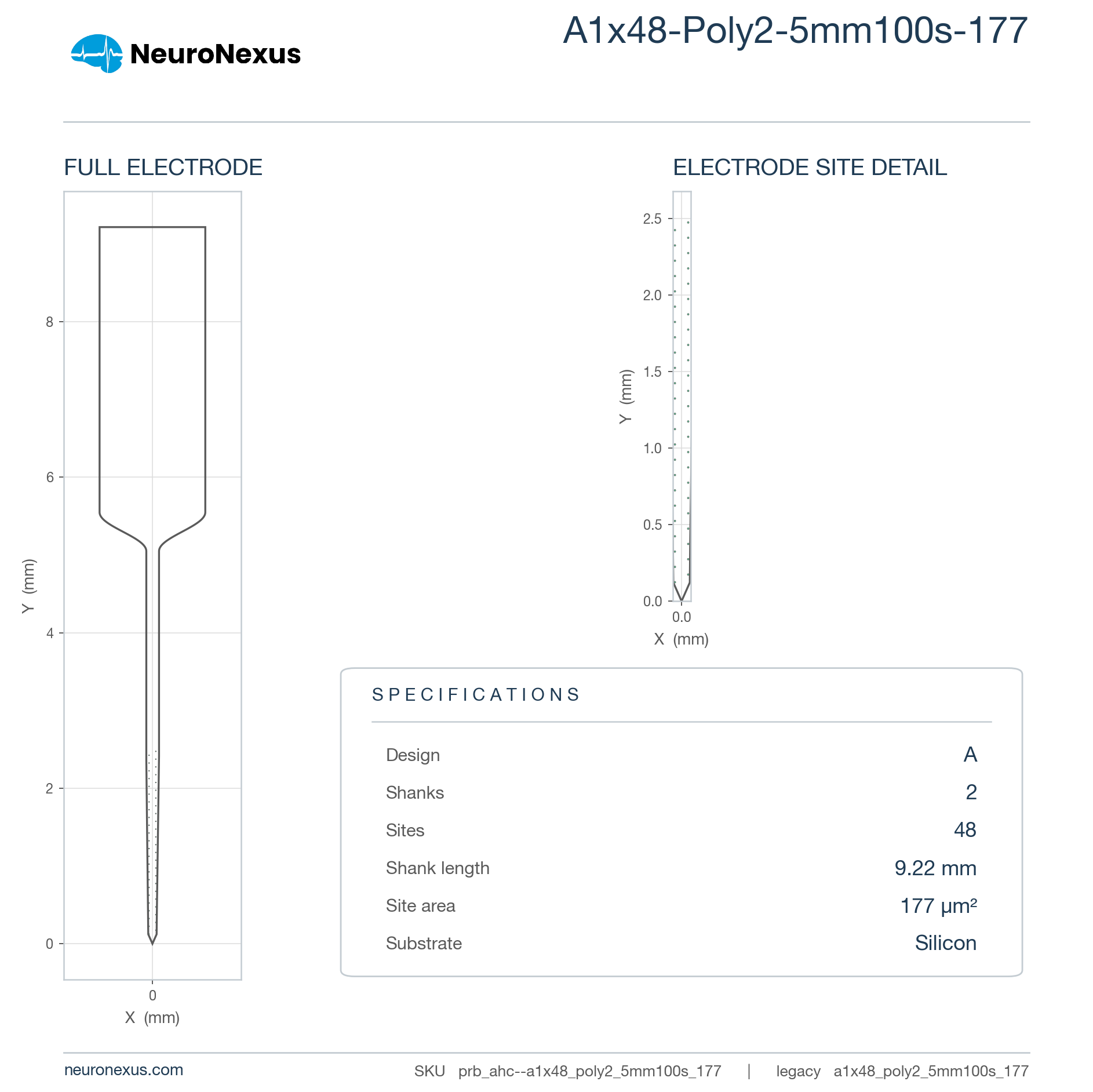

48-site A-Series polytrode/tetrode probe

A single mid-length shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 48 sites (74th percentile), 5 mm shanks (a common choice — 108 of 366), a 2.37 mm-deep site array (85th percentile), 200 sites/mm² (47th percentile) and a 0.86 mm³ neural interface (62nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a1x48_poly2_5mm100s_177

Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

13 specs

Channels48
Shanks1
Shank length5 mm
Site layoutPoly2
Site area177 µm²
Site pitch50 µm
Vertical span2365 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.862 mm³ (higher than 62% of 369 designs)
Site coverage density199.6 sites/mm² (higher than 47% of 369 designs)
Brain coverage density55.7 sites/mm³ (higher than 62% of 369 designs)
Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

3 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

48-channel single-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a1x48_poly2_5mm100s_177.15um.a64

Options

3 of 3
Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

Loading the compatible products…

Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
48
41024

Top 26% of catalog designs

Sites 48 — higher than 74% of catalog designs and 57% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Maximum site depth
4.88 mm
0.972 mm51.29 mm

Top 77% of catalog designs

Maximum site depth 4.88 mm — higher than 23% of catalog designs and 17% of its family
Minimum site depth
2.52 mm
0.067 mm44.74 mm

Top 80% of catalog designs

Minimum site depth 2.52 mm — higher than 20% of catalog designs and 13% of its family
Span, x
0.102 mm
0.01 mm6.03 mm

Top 60% of catalog designs

Span, x 0.102 mm — higher than 40% of catalog designs and 29% of its family
Span, y
2.37 mm
0.01 mm10.55 mm

Top 15% of catalog designs

Span, y 2.37 mm — higher than 85% of catalog designs and 97% of its family
Site pitch, x
0.087 µm
0.012 µm0.57 µm

Top 5% of catalog designs

Site pitch, x 0.087 µm — higher than 95% of catalog designs and 97% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 96% of its family
Site outline area
0.24 mm²
0.002 mm²28.74 mm²

Top 44% of catalog designs

Site outline area 0.24 mm² — higher than 56% of catalog designs and 61% of its family
Neural interface volume
0.862 mm³
0.149 mm³17.19 mm³

Top 38% of catalog designs

Neural interface volume 0.862 mm³ — higher than 62% of catalog designs and 77% of its family
Site coverage density
199.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 53% of catalog designs

Site coverage density 199.6 sites/mm² — higher than 47% of catalog designs and 32% of its family
Brain coverage density
55.69 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 38% of catalog designs

Brain coverage density 55.69 sites/mm³ — higher than 62% of catalog designs and 24% of its family
Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

3 notes · Geometry · Construction · Packaging and connector options

Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 48-Channel Probe, 5 mmSKU prb_ahc--a1x48_poly2_5mm100s_177

Cited in 2,342 publications (product line)
