Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 64-Channel Probe, 12 mm

64Sites
1Shanks
12mmShank Length
30µmSite Pitch
Part no.A1x64-Poly2-12mm-60s-177
Contact us to order
Contents

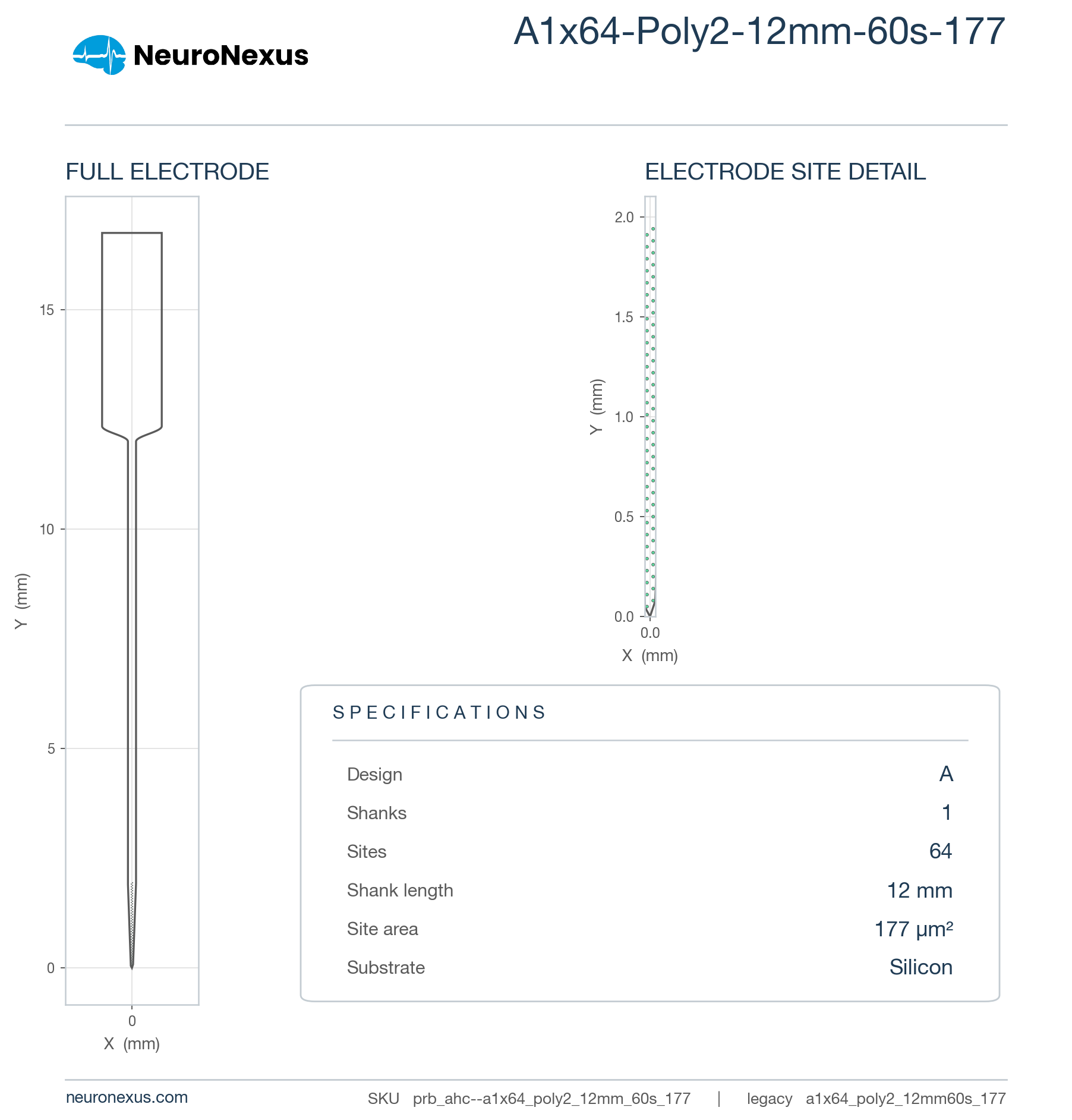

64-site A-Series polytrode/tetrode probe, 1 shank, 12 mm

A single long shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 12 mm shanks (93rd percentile of the 366 measured), a 1.9 mm-deep site array (79th percentile), 737 sites/mm² (79th percentile) and a 0.66 mm³ neural interface (51st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 8 package configurations. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x64_poly2_12mm60s_177

Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

13 specs

Channels64
Shanks1
Shank length12 mm
Site layoutPoly2
Site area177 µm²
Site pitch30 µm
Vertical span1905 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.656 mm³ (higher than 51% of 369 designs)
Site coverage density737.4 sites/mm² (higher than 79% of 369 designs)
Brain coverage density97.6 sites/mm³ (higher than 86% of 369 designs)
Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

13 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
EIB64 — 64-ch Molex
EIB64 (30 mm cable) — 64-ch Molex
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
OA64LP — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel single-shank silicon probe, 12 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a1x64_poly2_12mm_60s_177.15um.a64

Options

13 of 13
Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

Loading the compatible products…

Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
12 mm
1 mm60 mm

Top 7% of catalog designs

Shank length 12 mm — higher than 93% of catalog designs and 99% of its family
Maximum site depth
11.96 mm
0.972 mm51.29 mm

Top 8% of catalog designs

Maximum site depth 11.96 mm — higher than 92% of catalog designs and 99% of its family
Minimum site depth
10.05 mm
0.067 mm44.74 mm

Top 7% of catalog designs

Minimum site depth 10.05 mm — higher than 93% of catalog designs and 99% of its family
Span, x
0.046 mm
0.01 mm6.03 mm

Top 70% of catalog designs

Span, x 0.046 mm — higher than 30% of catalog designs and 4% of its family
Span, y
1.9 mm
0.01 mm10.55 mm

Top 21% of catalog designs

Span, y 1.9 mm — higher than 79% of catalog designs and 91% of its family
Site pitch, x
0.031 µm
0.012 µm0.57 µm

Top 25% of catalog designs

Site pitch, x 0.031 µm — higher than 75% of catalog designs and 72% of its family
Site pitch, y
0.03 µm
0.01 µm1.5 µm

Top 65% of catalog designs

Site pitch, y 0.03 µm — higher than 35% of catalog designs and 85% of its family
Site outline area
0.087 mm²
0.002 mm²28.74 mm²

Top 57% of catalog designs

Site outline area 0.087 mm² — higher than 43% of catalog designs and 41% of its family
Neural interface volume
0.656 mm³
0.149 mm³17.19 mm³

Top 49% of catalog designs

Neural interface volume 0.656 mm³ — higher than 51% of catalog designs and 69% of its family
Site coverage density
737.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 21% of catalog designs

Site coverage density 737.4 sites/mm² — higher than 79% of catalog designs and 85% of its family
Brain coverage density
97.56 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 14% of catalog designs

Brain coverage density 97.56 sites/mm³ — higher than 86% of catalog designs and 60% of its family
Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

3 notes · Geometry · Construction · Packaging and connector options

Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Single-Shank 64-Channel Probe, 12 mmSKU prb_ahc--a1x64_poly2_12mm_60s_177

Cited in 2,342 publications (product line)
