Neural Probes · A-Series (Polytrode & Tetrode)

Single-Shank 64-Channel Probe, 6 mm

64Sites
1Shanks
6mmShank Length
23µmSite Pitch

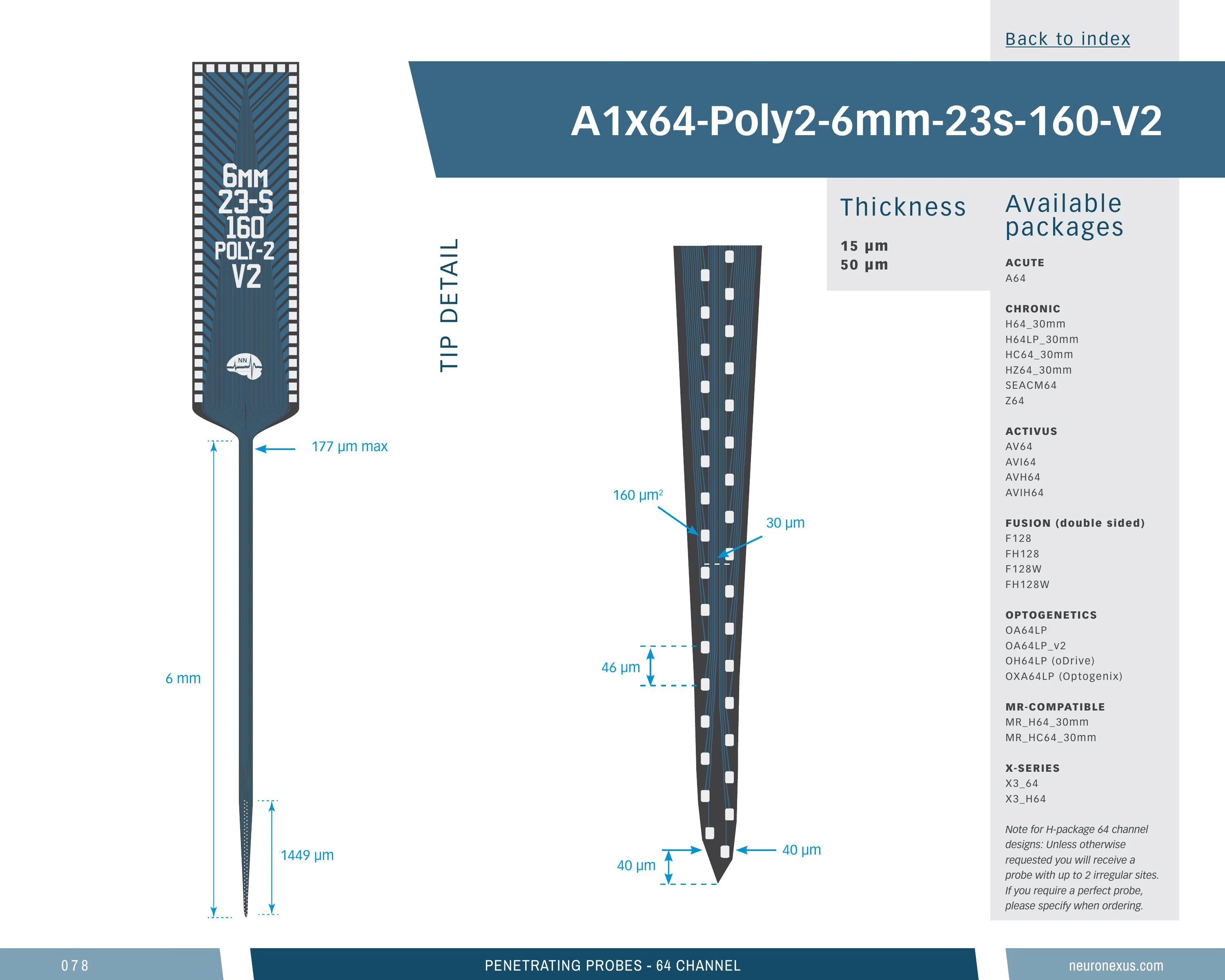

Part no.A1x64-Poly2-6mm-23s-160-V2
Contents

64-site A-Series polytrode/tetrode probe, 1 shank

A single mid-length shank with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 6 mm shanks (61st percentile of the 366 measured), a 1.46 mm-deep site array (66th percentile), 1,066 sites/mm² (87th percentile) and a 0.53 mm³ neural interface (38th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x64_poly2_6mm_23s_160_v2

Single-Shank 64-Channel Probe, 6 mmSKU prb_ahc--a1x64_poly2_6mm_23s_160_v2

13 specs

Channels64
Shanks1
Shank length6 mm
Site layoutPoly2
Site area160 µm²
Site pitch23 µm
Vertical span1464 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.531 mm³ (higher than 38% of 369 designs)
Site coverage density1,066.2 sites/mm² (higher than 87% of 369 designs)
Brain coverage density120.5 sites/mm³ (higher than 91% of 369 designs)
Single-Shank 64-Channel Probe, 6 mmSKU prb_ahc--a1x64_poly2_6mm_23s_160_v2

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

44 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MR_HC64
MRH64LP_30MM — 64-ch
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel single-shank silicon probe, 6 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a1x64_poly2_6mm_23s_160_v2.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

44 of 44
Single-Shank 64-Channel Probe, 6 mmSKU prb_ahc--a1x64_poly2_6mm_23s_160_v2

Loading the compatible products…

Single-Shank 64-Channel Probe, 6 mmSKU prb_ahc--a1x64_poly2_6mm_23s_160_v2

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 35% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 65% of its family
Maximum site depth
5.97 mm
0.972 mm51.29 mm

Top 40% of catalog designs

Maximum site depth 5.97 mm — higher than 60% of catalog designs and 63% of its family
Minimum site depth
4.5 mm
0.067 mm44.74 mm

Top 48% of catalog designs

Minimum site depth 4.5 mm — higher than 52% of catalog designs and 41% of its family
Span, x
0.041 mm
0.01 mm6.03 mm

Top 71% of catalog designs

Span, x 0.041 mm — higher than 29% of catalog designs and 3% of its family
Span, y
1.46 mm
0.01 mm10.55 mm

Top 34% of catalog designs

Span, y 1.46 mm — higher than 66% of catalog designs and 84% of its family
Site pitch, y
0.023 µm
0.01 µm1.5 µm

Top 75% of catalog designs

Site pitch, y 0.023 µm — higher than 25% of catalog designs and 68% of its family
Site outline area
0.06 mm²
0.002 mm²28.74 mm²

Top 65% of catalog designs

Site outline area 0.06 mm² — higher than 35% of catalog designs and 29% of its family
Neural interface volume
0.531 mm³
0.149 mm³17.19 mm³

Top 62% of catalog designs

Neural interface volume 0.531 mm³ — higher than 38% of catalog designs and 53% of its family
Site coverage density
1066.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 13% of catalog designs

Site coverage density 1066.2 sites/mm² — higher than 87% of catalog designs and 93% of its family
Brain coverage density
120.5 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 9% of catalog designs

Brain coverage density 120.5 sites/mm³ — higher than 91% of catalog designs and 73% of its family
