Tetrode 2-Shank 16-Channel Probe, 3 mm
16-site A-Series polytrode/tetrode probe, 2 shanks
Two short shanks side by side, closely spaced for coverage within one structure, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.2 mm-deep site array (12th percentile), 415 sites/mm² (63rd percentile) and a 0.24 mm³ neural interface (8th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

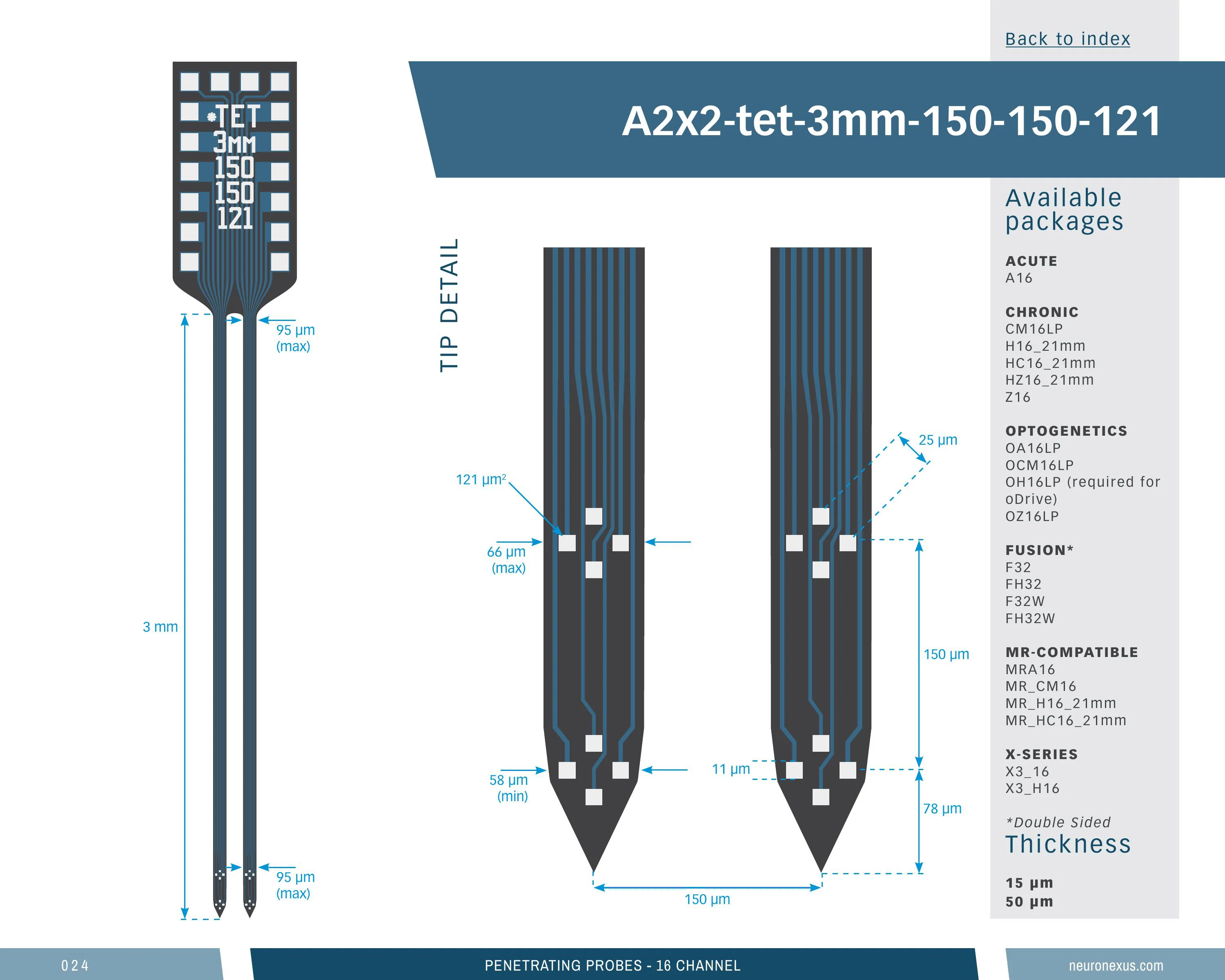

a2x2_tet_3mm_150_150_121 · a2x2_tet_3mm_150_150
14 specs
| Channels | 16 |
|---|---|
| Shanks | 2 |
| Shank length | 3 mm |
| Shank separation | 150 µm |
| Site layout | Tetrode |
| Site area | 121 µm² |
| Site pitch | 17.68 µm |
| Vertical span | 196 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.242 mm³ (higher than 8% of 369 designs) |
| Site coverage density | 415.0 sites/mm² (higher than 63% of 369 designs) |
| Brain coverage density | 66.0 sites/mm³ (higher than 72% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
16-channel 2-shank silicon probe, 3 mm — 15 μm, A16
A16Options
50 of 5015 μm · A16 — 16-ch
15 μm · CM16LP — 16-ch Omnetics
15 μm · H16 (21 mm cable) — 16-ch Omnetics
15 μm · HC16 (21 mm cable) — 16-ch Omnetics
15 μm · HZ16 (21 mm cable) — 16-ch Hirose
15 μm · OA16LP — 16-ch
15 μm · OCM16LP — 16-ch Omnetics
15 μm · OH16LP — 16-ch Omnetics
15 μm · OZ16LP — 16-ch Hirose
15 μm · X3_16 — 16-ch Molex
15 μm · X3_H16 (21 mm cable) — 16-ch Molex
15 μm · Z16 — 16-ch Hirose
50 μm · A16 — 16-ch
50 μm · CM16LP — 16-ch Omnetics
50 μm · H16 (21 mm cable) — 16-ch Omnetics
50 μm · HC16 (21 mm cable) — 16-ch Omnetics
50 μm · HZ16 (21 mm cable) — 16-ch Hirose
50 μm · OA16LP — 16-ch
50 μm · OCM16LP — 16-ch Omnetics
50 μm · OH16LP — 16-ch Omnetics
50 μm · OZ16LP — 16-ch Hirose
50 μm · X3_16 — 16-ch Molex
50 μm · X3_H16 (21 mm cable) — 16-ch Molex
50 μm · Z16 — 16-ch Hirose
15 μm · CM16_DUAL — 16-ch Omnetics
50 μm · CM16_DUAL — 16-ch Omnetics
15 μm · CM32_DUAL16 — 32-ch Omnetics
50 μm · CM32_DUAL16 — 32-ch Omnetics
15 μm · MRCM16LP — 16-ch Omnetics
50 μm · MRCM16LP — 16-ch Omnetics
15 μm · MROCM16LP — 16-ch Omnetics
50 μm · MROCM16LP — 16-ch Omnetics
15 μm · MROCM16LP_V2 — 16-ch Omnetics
50 μm · MROCM16LP_V2 — 16-ch Omnetics
15 μm · MRH16 — 16-ch Omnetics
50 μm · MRH16 — 16-ch Omnetics
15 μm · OHZ16LP — 16-ch Hirose
50 μm · OHZ16LP — 16-ch Hirose
15 μm · IVA16 — 16-ch
50 μm · IVA16 — 16-ch
15 μm · MRA16 — 16-ch
50 μm · MRA16 — 16-ch
15 μm · F32 — 32-ch Omnetics
50 μm · F32 — 32-ch Omnetics
15 μm · F32W — 32-ch Omnetics
50 μm · F32W — 32-ch Omnetics
15 μm · FH32 — 32-ch Omnetics
50 μm · FH32 — 32-ch Omnetics
15 μm · FH32W — 32-ch Omnetics
50 μm · FH32W — 32-ch Omnetics
Loading the compatible products…
14 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 17% of its familyTop 47% of catalog designs
Shanks 2 — higher than 53% of catalog designs and 49% of its familyTop 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 12% of its familyTop 86% of catalog designs
Shank separation 0.15 mm — higher than 14% of catalog designs and 14% of its familyTop 88% of catalog designs
Maximum site depth 2.96 mm — higher than 12% of catalog designs and 11% of its familyTop 76% of catalog designs
Minimum site depth 2.76 mm — higher than 24% of catalog designs and 17% of its familyTop 59% of catalog designs
Span, x 0.196 mm — higher than 41% of catalog designs and 37% of its familyTop 88% of catalog designs
Span, y 0.196 mm — higher than 12% of catalog designs and 16% of its familyTop 48% of catalog designs
Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its familyTop 85% of catalog designs
Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its familyTop 74% of catalog designs
Site outline area 0.039 mm² — higher than 26% of catalog designs and 15% of its familyTop 92% of catalog designs
Neural interface volume 0.242 mm³ — higher than 8% of catalog designs and 9% of its familyTop 37% of catalog designs
Site coverage density 415 sites/mm² — higher than 63% of catalog designs and 59% of its familyTop 28% of catalog designs
Brain coverage density 65.99 sites/mm³ — higher than 72% of catalog designs and 36% of its family5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …
17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
