Neural Probes · A-Series (Polytrode & Tetrode)

2-Shank 64-Channel Probe, 5 mm

64Sites
2Shanks
5mmShank Length
23µmSite Pitch

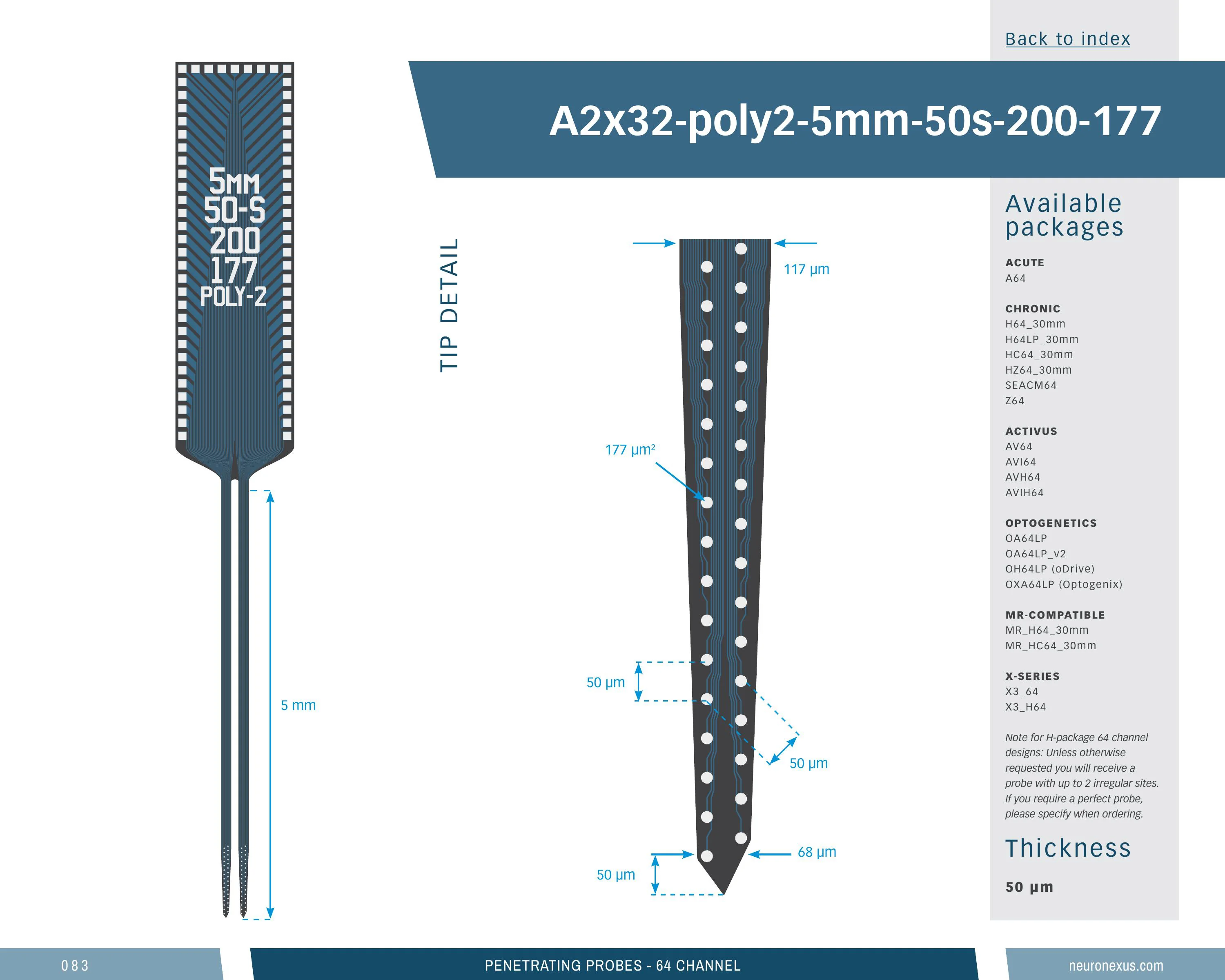

Part no.A2x32-poly2-5mm-50s-200-177
Contents

64-site A-Series polytrode/tetrode probe, 2 shanks, 5 mm

Two mid-length shanks side by side, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.79 mm-deep site array (48th percentile), 314 sites/mm² (56th percentile) and a 0.49 mm³ neural interface (30th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 4 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x32_poly2_5mm_50s_200_177

2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

13 specs

Channels64
Shanks2
Shank length5 mm
Site layoutPoly2
Site area177 µm²
Site pitch23 µm
Vertical span788 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.488 mm³ (higher than 30% of 369 designs)
Site coverage density314.4 sites/mm² (higher than 56% of 369 designs)
Brain coverage density131.1 sites/mm³ (higher than 93% of 369 designs)
2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 — 64-ch Omnetics
H64LP — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 2-shank silicon probe, 5 mm — 15 μm, OA64LP
OA64LP
Compatible Package: OA64LP — 64-ch Samtec
SKUprb_ahc--a2x32_poly2_5mm_50s_200_177.15um.oa64lp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

Loading the compatible products…

2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 49% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 39% of its family
Minimum site depth
4.17 mm
0.067 mm44.74 mm

Top 58% of catalog designs

Minimum site depth 4.17 mm — higher than 42% of catalog designs and 32% of its family
Span, x
0.258 mm
0.01 mm6.03 mm

Top 55% of catalog designs

Span, x 0.258 mm — higher than 45% of catalog designs and 43% of its family
Span, y
0.788 mm
0.01 mm10.55 mm

Top 52% of catalog designs

Span, y 0.788 mm — higher than 48% of catalog designs and 63% of its family
Site pitch, x
0.043 µm
0.012 µm0.57 µm

Top 11% of catalog designs

Site pitch, x 0.043 µm — higher than 89% of catalog designs and 87% of its family
Site pitch, y
0.023 µm
0.01 µm1.5 µm

Top 75% of catalog designs

Site pitch, y 0.023 µm — higher than 25% of catalog designs and 68% of its family
Site outline area
0.204 mm²
0.002 mm²28.74 mm²

Top 47% of catalog designs

Site outline area 0.204 mm² — higher than 53% of catalog designs and 59% of its family
Neural interface volume
0.488 mm³
0.149 mm³17.19 mm³

Top 70% of catalog designs

Neural interface volume 0.488 mm³ — higher than 30% of catalog designs and 49% of its family
Site coverage density
314.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 44% of catalog designs

Site coverage density 314.4 sites/mm² — higher than 56% of catalog designs and 52% of its family
Brain coverage density
131.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 7% of catalog designs

Brain coverage density 131.1 sites/mm³ — higher than 93% of catalog designs and 76% of its family
2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

2-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a2x32_poly2_5mm_50s_200_177

Cited in 2,342 publications (product line)
