Neural Probes · A-Series (Polytrode & Tetrode)

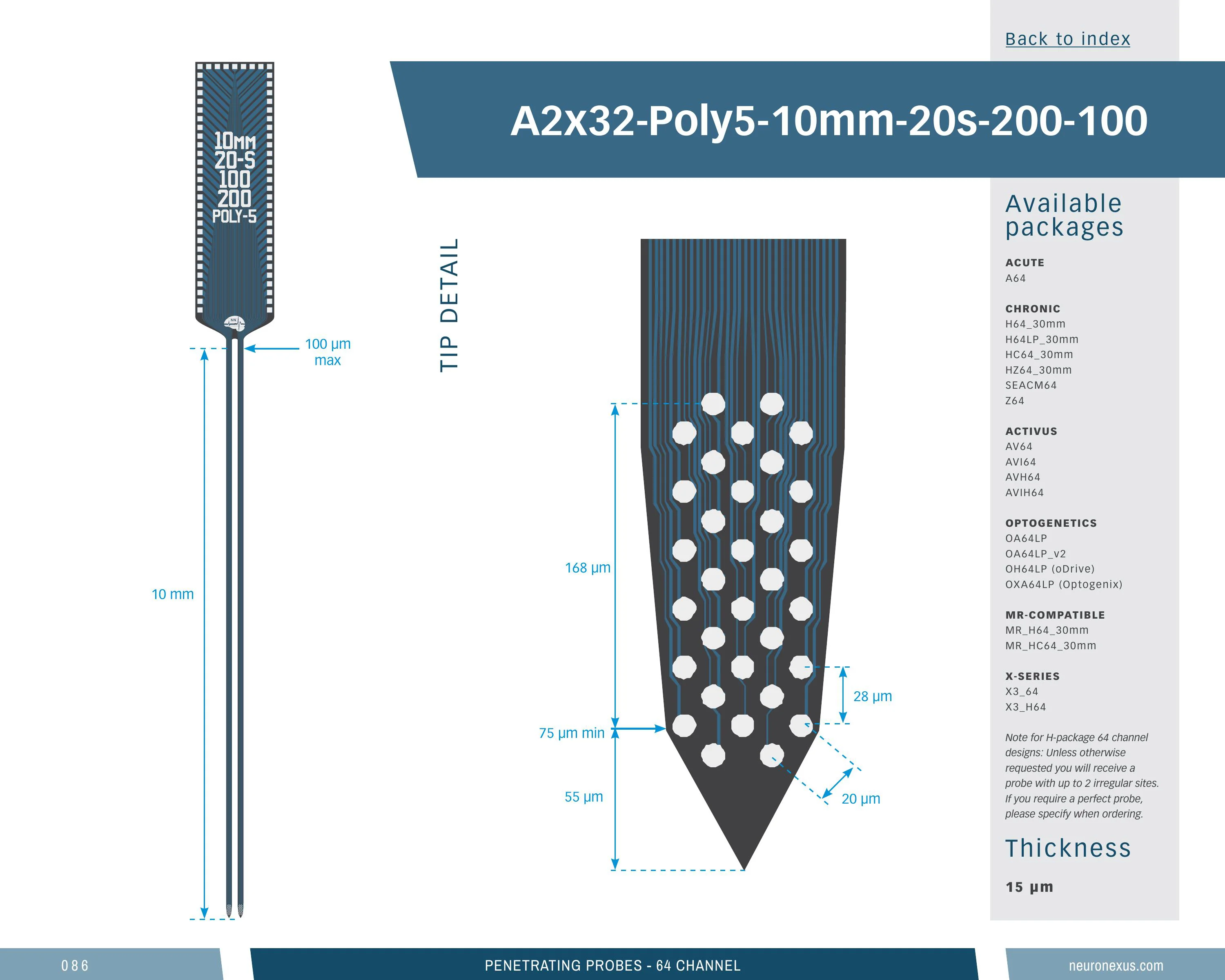

2-Shank 64-Channel Probe, 10 mm

64Sites
2Shanks
10mmShank Length
14.14µmSite Pitch
Part no.A2x32-Poly5-10mm-20s-200-100
Contents

64-site A-Series polytrode/tetrode probe, 2 shanks, 10 mm

Two long shanks side by side, closely spaced for coverage within one structure, with sites staggered in five columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is in the lower quartile: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.18 mm-deep site array (11th percentile), 1,322 sites/mm² (88th percentile) and a 0.26 mm³ neural interface (9th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x32_poly5_10mm_20s_200_100

2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

14 specs

Channels64
Shanks2
Shank length10 mm
Shank separation200 µm
Site layoutPoly5
Site area97 µm²
Site pitch14.14 µm
Vertical span181 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.261 mm³ (higher than 9% of 369 designs)
Site coverage density1,321.8 sites/mm² (higher than 88% of 369 designs)
Brain coverage density244.9 sites/mm³ (higher than 99% of 369 designs)
2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

44 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 (30 mm cable) — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 2-shank silicon probe, 10 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a2x32_poly5_10mm_20s_200_100.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

44 of 44
2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

Loading the compatible products…

2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 49% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 80% of its family
Maximum site depth
9.95 mm
0.972 mm51.29 mm

Top 27% of catalog designs

Maximum site depth 9.95 mm — higher than 73% of catalog designs and 89% of its family
Minimum site depth
9.77 mm
0.067 mm44.74 mm

Top 9% of catalog designs

Minimum site depth 9.77 mm — higher than 91% of catalog designs and 97% of its family
Span, x
0.268 mm
0.01 mm6.03 mm

Top 54% of catalog designs

Span, x 0.268 mm — higher than 46% of catalog designs and 44% of its family
Span, y
0.181 mm
0.01 mm10.55 mm

Top 89% of catalog designs

Span, y 0.181 mm — higher than 11% of catalog designs and 9% of its family
Site pitch, x
0.014 µm
0.012 µm0.57 µm

Top 90% of catalog designs

Site pitch, x 0.014 µm — higher than 10% of catalog designs and 6% of its family
Site pitch, y
0.014 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.014 µm — higher than 6% of catalog designs and 20% of its family
Site outline area
0.048 mm²
0.002 mm²28.74 mm²

Top 67% of catalog designs

Site outline area 0.048 mm² — higher than 33% of catalog designs and 21% of its family
Neural interface volume
0.261 mm³
0.149 mm³17.19 mm³

Top 91% of catalog designs

Neural interface volume 0.261 mm³ — higher than 9% of catalog designs and 15% of its family
Site coverage density
1321.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 12% of catalog designs

Site coverage density 1321.8 sites/mm² — higher than 88% of catalog designs and 96% of its family
Brain coverage density
244.9 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 1% of catalog designs

Brain coverage density 244.9 sites/mm³ — higher than 99% of catalog designs and 96% of its family
2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

2-Shank 64-Channel Probe, 10 mmSKU prb_ahc--a2x32_poly5_10mm_20s_200_100

Cited in 2,342 publications (product line)
