Neural Probes · A-Series (Polytrode & Tetrode)

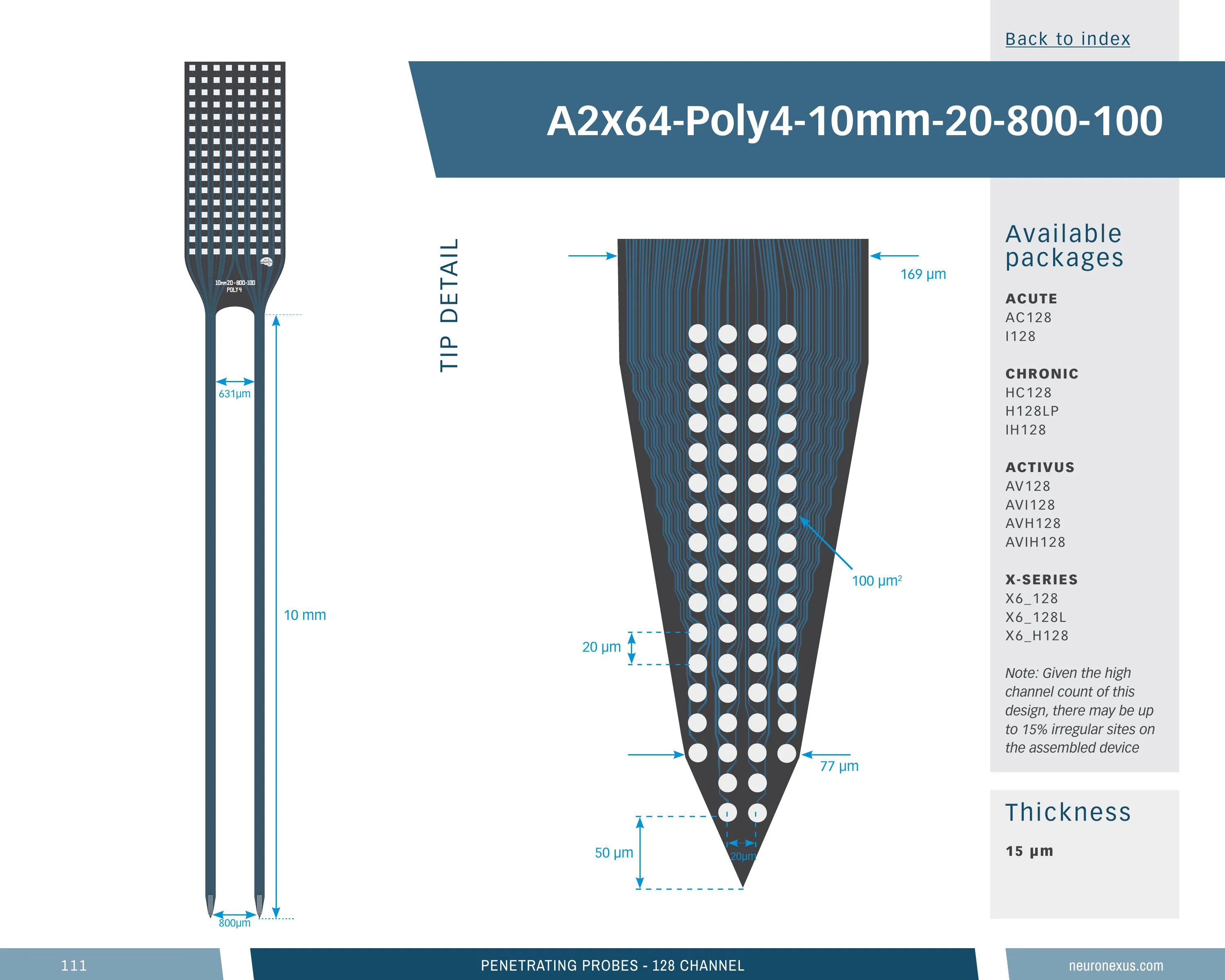

2-Shank 128-Channel Probe, 10 mm

128Sites
2Shanks
10mmShank Length
20µmSite Pitch
Part no.A2x64-Poly4-10mm-20-800-100
Contents

128-site A-Series polytrode/tetrode probe, 2 shanks

Two long shanks side by side, spread for lateral coverage across columns, with sites staggered in four columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.33 mm-deep site array (20th percentile), 444 sites/mm² (64th percentile) and a 0.57 mm³ neural interface (46th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x64_poly4_10mm_20_800_100

2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

14 specs

Channels128
Shanks2
Shank length10 mm
Shank separation800 µm
Site layoutPoly4
Site area97 µm²
Site pitch20 µm
Vertical span331 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.570 mm³ (higher than 46% of 369 designs)
Site coverage density443.6 sites/mm² (higher than 64% of 369 designs)
Brain coverage density224.6 sites/mm³ (higher than 99% of 369 designs)
2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

14 options

Configure

Compatible Package
All
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 2-shank silicon probe, 10 mm — 15 μm, AVIH128
AVIH128
Compatible Package: AVIH128 — 128-ch Omnetics
SKUprb_ahc--a2x64_poly4_10mm_20_800_100.15um.avih128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

14 of 14
2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

Loading the compatible products…

2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 91% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 49% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Shank separation
0.8 mm
0.05 mm1.8 mm

Top 4% of catalog designs · largest in its family

Shank separation 0.8 mm — higher than 96% of catalog designs and 100% of its family (the largest in its family, 35 designs)
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 25% of catalog designs

Maximum site depth 9.96 mm — higher than 75% of catalog designs and 92% of its family
Minimum site depth
9.62 mm
0.067 mm44.74 mm

Top 10% of catalog designs

Minimum site depth 9.62 mm — higher than 90% of catalog designs and 92% of its family
Span, x
0.871 mm
0.01 mm6.03 mm

Top 27% of catalog designs

Span, x 0.871 mm — higher than 73% of catalog designs and 77% of its family
Span, y
0.331 mm
0.01 mm10.55 mm

Top 80% of catalog designs

Span, y 0.331 mm — higher than 20% of catalog designs and 32% of its family
Site pitch, x
0.02 µm
0.012 µm0.57 µm

Top 43% of catalog designs

Site pitch, x 0.02 µm — higher than 57% of catalog designs and 57% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 59% of its family
Site outline area
0.289 mm²
0.002 mm²28.74 mm²

Top 41% of catalog designs

Site outline area 0.289 mm² — higher than 59% of catalog designs and 65% of its family
Neural interface volume
0.57 mm³
0.149 mm³17.19 mm³

Top 54% of catalog designs

Neural interface volume 0.57 mm³ — higher than 46% of catalog designs and 60% of its family
Site coverage density
443.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 36% of catalog designs

Site coverage density 443.6 sites/mm² — higher than 64% of catalog designs and 60% of its family
Brain coverage density
224.6 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 1% of catalog designs

Brain coverage density 224.6 sites/mm³ — higher than 99% of catalog designs and 95% of its family
2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

2-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a2x64_poly4_10mm_20_800_100

Cited in 2,342 publications (product line)
