Neural Probes · A-Series (Polytrode & Tetrode)

2-Shank 16-Channel Probe, 8 mm

16Sites
2Shanks
8mmShank Length
50µmSite Pitch
Part no.A2x8-Poly2-8mm-100s-300-177
Contact us to order
Contents

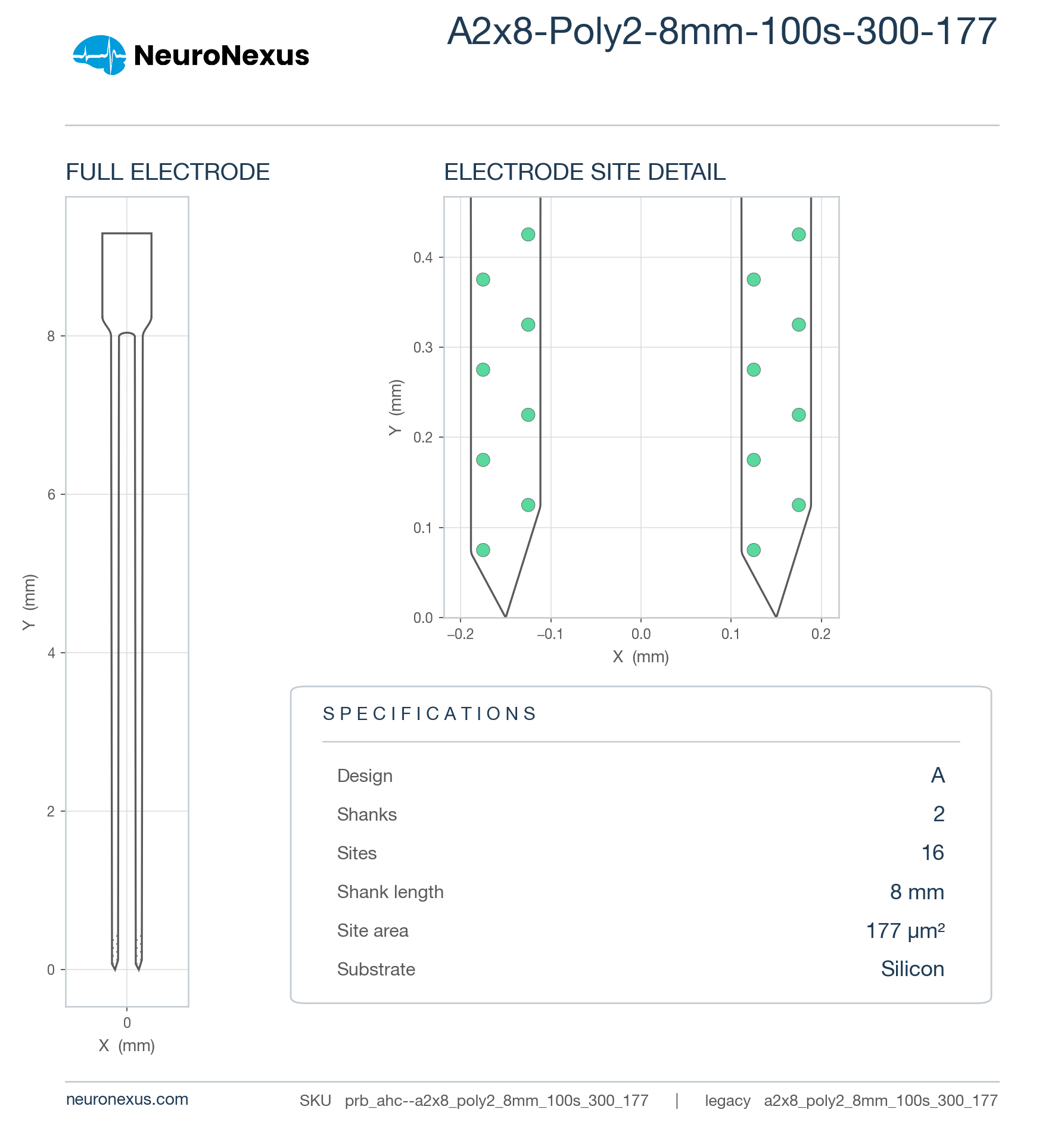

16-site A-Series polytrode/tetrode probe, 2 shanks, 8 mm

Two long shanks side by side, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 8 mm shanks (68th percentile of the 366 measured), a 0.36 mm-deep site array (21st percentile), 120 sites/mm² (36th percentile) and a 0.37 mm³ neural interface (22nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 6 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a2x8_poly2_8mm_100s_300_177

2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

13 specs

Channels16
Shanks2
Shank length8 mm
Site layoutPoly2
Site area177 µm²
Site pitch50 µm
Vertical span365 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.374 mm³ (higher than 22% of 369 designs)
Site coverage density120.2 sites/mm² (higher than 36% of 369 designs)
Brain coverage density42.8 sites/mm³ (higher than 46% of 369 designs)
2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

9 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16LP — 16-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 2-shank silicon probe, 8 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_ahc--a2x8_poly2_8mm_100s_300_177.15um.a16

Options

9 of 9
2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

Loading the compatible products…

2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 17% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 49% of its family
Shank length
8 mm
1 mm60 mm

Top 32% of catalog designs

Shank length 8 mm — higher than 68% of catalog designs and 79% of its family
Maximum site depth
7.93 mm
0.972 mm51.29 mm

Top 34% of catalog designs

Maximum site depth 7.93 mm — higher than 66% of catalog designs and 75% of its family
Minimum site depth
7.57 mm
0.067 mm44.74 mm

Top 26% of catalog designs

Minimum site depth 7.57 mm — higher than 74% of catalog designs and 77% of its family
Span, x
0.365 mm
0.01 mm6.03 mm

Top 53% of catalog designs

Span, x 0.365 mm — higher than 47% of catalog designs and 47% of its family
Span, y
0.365 mm
0.01 mm10.55 mm

Top 79% of catalog designs

Span, y 0.365 mm — higher than 21% of catalog designs and 36% of its family
Site pitch, x
0.05 µm
0.012 µm0.57 µm

Top 7% of catalog designs

Site pitch, x 0.05 µm — higher than 93% of catalog designs and 94% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 96% of its family
Site outline area
0.133 mm²
0.002 mm²28.74 mm²

Top 50% of catalog designs

Site outline area 0.133 mm² — higher than 50% of catalog designs and 52% of its family
Neural interface volume
0.374 mm³
0.149 mm³17.19 mm³

Top 78% of catalog designs

Neural interface volume 0.374 mm³ — higher than 22% of catalog designs and 33% of its family
Site coverage density
120.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 64% of catalog designs

Site coverage density 120.2 sites/mm² — higher than 36% of catalog designs and 20% of its family
Brain coverage density
42.78 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 54% of catalog designs

Brain coverage density 42.78 sites/mm³ — higher than 46% of catalog designs and 17% of its family
2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

3 notes · Geometry · Construction · Packaging and connector options

2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

2-Shank 16-Channel Probe, 8 mmSKU prb_ahc--a2x8_poly2_8mm_100s_300_177

Cited in 2,342 publications (product line)
