Neural Probes · A-Series (Polytrode & Tetrode)

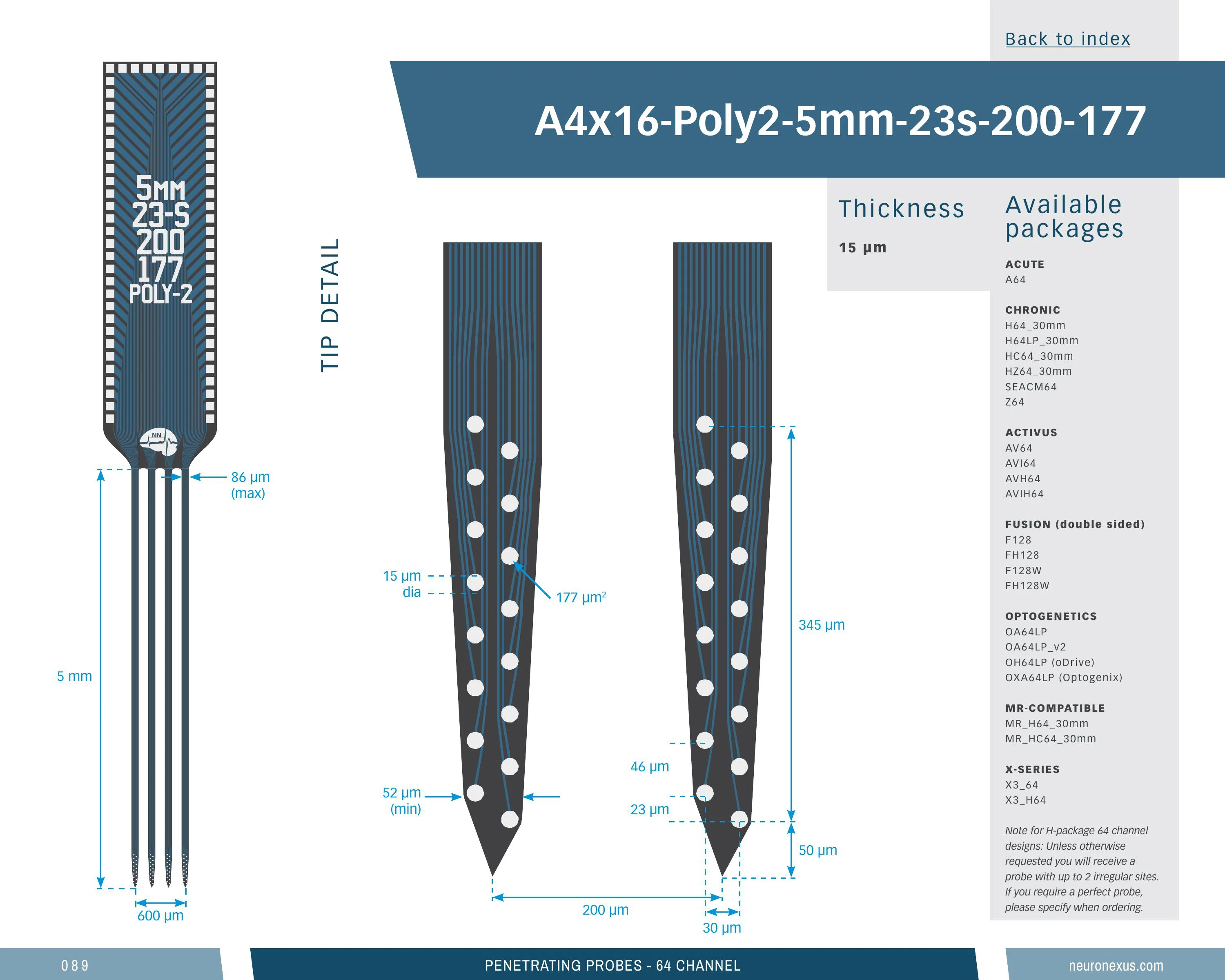

4-Shank 64-Channel Probe, 5 mm

64Sites
4Shanks
5mmShank Length
23µmSite Pitch
Part no.A4x16-poly2-5mm-23s-200-177
Contents

64-site A-Series polytrode/tetrode probe, 4 shanks, 5 mm, 177 µm²

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.36 mm-deep site array (20th percentile), 275 sites/mm² (55th percentile) and a 0.49 mm³ neural interface (30th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x16_poly2_5mm_23s_200_177

4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

14 specs

Channels64
Shanks4
Shank length5 mm
Shank separation200 µm
Site layoutPoly2
Site area177 µm²
Site pitch23 µm
Vertical span360 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.492 mm³ (higher than 30% of 369 designs)
Site coverage density275.5 sites/mm² (higher than 55% of 369 designs)
Brain coverage density130.0 sites/mm³ (higher than 92% of 369 designs)
4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 4-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a4x16_poly2_5mm_23s_200_177.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

Loading the compatible products…

4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 51% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 61% of catalog designs

Maximum site depth 4.96 mm — higher than 39% of catalog designs and 41% of its family
Minimum site depth
4.6 mm
0.067 mm44.74 mm

Top 44% of catalog designs

Minimum site depth 4.6 mm — higher than 56% of catalog designs and 47% of its family
Span, x
0.645 mm
0.01 mm6.03 mm

Top 34% of catalog designs

Span, x 0.645 mm — higher than 66% of catalog designs and 59% of its family
Span, y
0.36 mm
0.01 mm10.55 mm

Top 80% of catalog designs

Span, y 0.36 mm — higher than 20% of catalog designs and 35% of its family
Site pitch, x
0.03 µm
0.012 µm0.57 µm

Top 26% of catalog designs

Site pitch, x 0.03 µm — higher than 74% of catalog designs and 71% of its family
Site pitch, y
0.023 µm
0.01 µm1.5 µm

Top 75% of catalog designs

Site pitch, y 0.023 µm — higher than 25% of catalog designs and 68% of its family
Site outline area
0.232 mm²
0.002 mm²28.74 mm²

Top 45% of catalog designs

Site outline area 0.232 mm² — higher than 55% of catalog designs and 60% of its family
Neural interface volume
0.492 mm³
0.149 mm³17.19 mm³

Top 70% of catalog designs

Neural interface volume 0.492 mm³ — higher than 30% of catalog designs and 51% of its family
Site coverage density
275.5 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 45% of catalog designs

Site coverage density 275.5 sites/mm² — higher than 55% of catalog designs and 51% of its family
Brain coverage density
130 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 8% of catalog designs

Brain coverage density 130 sites/mm³ — higher than 92% of catalog designs and 75% of its family
4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x16_poly2_5mm_23s_200_177

Cited in 2,342 publications (product line)
