4-Shank 64-Channel Probe, 5 mm
64-site A-Series polytrode/tetrode probe, 4 shanks, 5 mm, 160 µm², 200 µm apart
Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered in three columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is in the lower quartile: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.12 mm-deep site array (6th percentile), 861 sites/mm² (83rd percentile) and a 0.35 mm³ neural interface (19th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 22 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

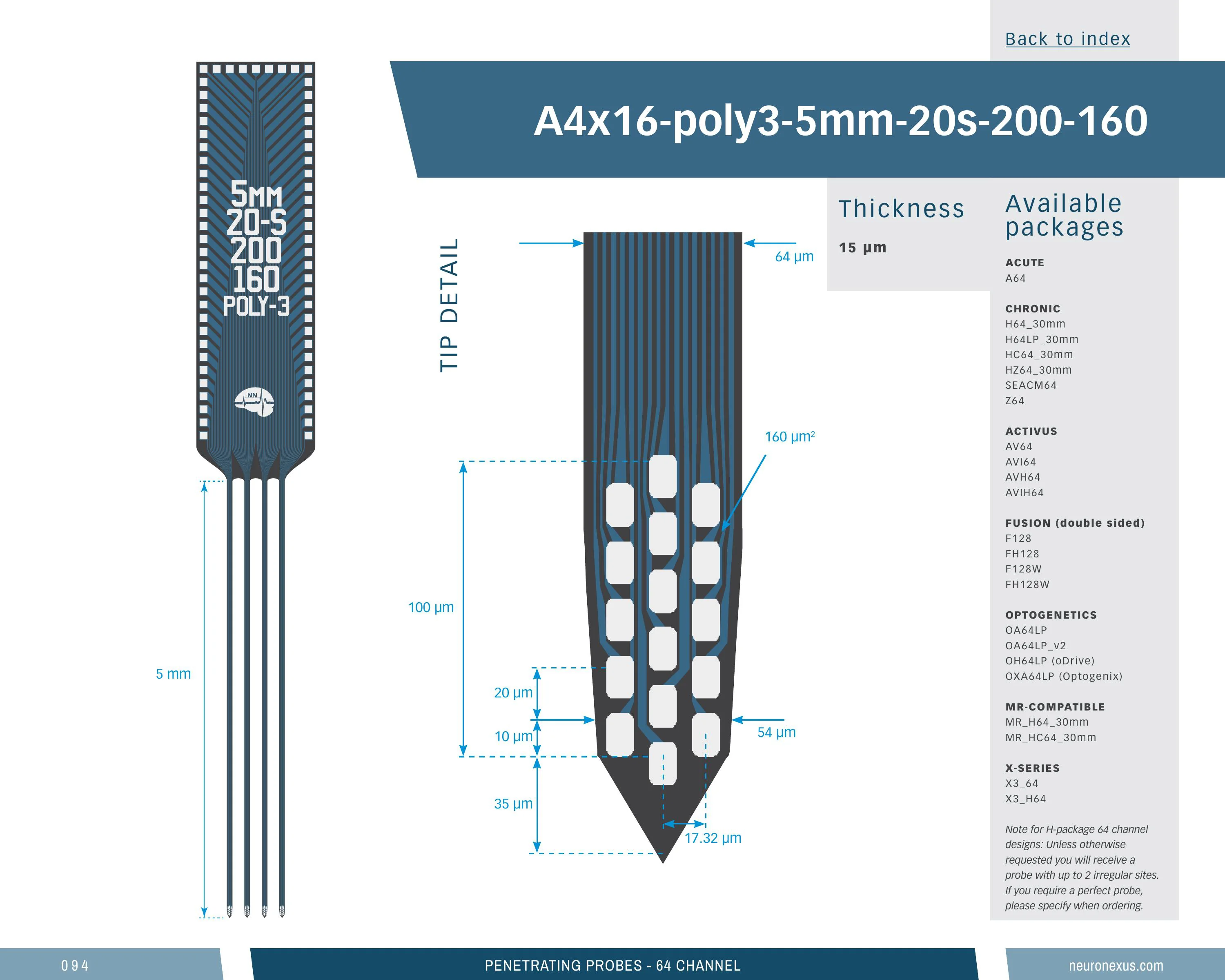

a4x16_poly3_5mm_20s_200_160 · a4x16_poly3_5mm_20s_200_1
14 specs
| Channels | 64 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 200 µm |
| Site layout | Poly3 |
| Site area | 160 µm² |
| Site pitch | 10 µm |
| Vertical span | 115 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.352 mm³ (higher than 19% of 369 designs) |
| Site coverage density | 861.1 sites/mm² (higher than 83% of 369 designs) |
| Brain coverage density | 181.7 sites/mm³ (higher than 95% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
22 options
Configure
Your selection
64-channel 4-shank silicon probe, 5 mm — 15 μm, A64
A64Options
22 of 22A64 — 64-ch Samtec
H64LP (30 mm cable) — 64-ch Omnetics
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
H64 — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OH64LP — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OXA64LP — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
SEACM64 — 64-ch Samtec
EIB64 — 64-ch Molex
Z64 — 64-ch Hirose
Loading the compatible products…
14 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 83% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 84% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 51% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 80% of its familyTop 51% of catalog designs
Maximum site depth 4.97 mm — higher than 49% of catalog designs and 49% of its familyTop 39% of catalog designs
Minimum site depth 4.86 mm — higher than 61% of catalog designs and 57% of its familyTop 34% of catalog designs
Span, x 0.645 mm — higher than 66% of catalog designs and 60% of its familyTop 94% of catalog designs
Span, y 0.115 mm — higher than 6% of catalog designs and 7% of its familyTop 80% of catalog designs
Site pitch, x 0.017 µm — higher than 20% of catalog designs and 12% of its familyTop 97% of catalog designs
Site pitch, y 0.01 µm — higher than 3% of catalog designs and 11% of its familyTop 60% of catalog designs
Site outline area 0.074 mm² — higher than 40% of catalog designs and 37% of its familyTop 81% of catalog designs
Neural interface volume 0.352 mm³ — higher than 19% of catalog designs and 27% of its familyTop 17% of catalog designs
Site coverage density 861.1 sites/mm² — higher than 83% of catalog designs and 89% of its familyTop 5% of catalog designs
Brain coverage density 181.7 sites/mm³ — higher than 95% of catalog designs and 85% of its family5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …
