Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 4-Shank 16-Channel Probe, 3 mm

16Sites
4Shanks
3mmShank Length
17.68µmSite Pitch

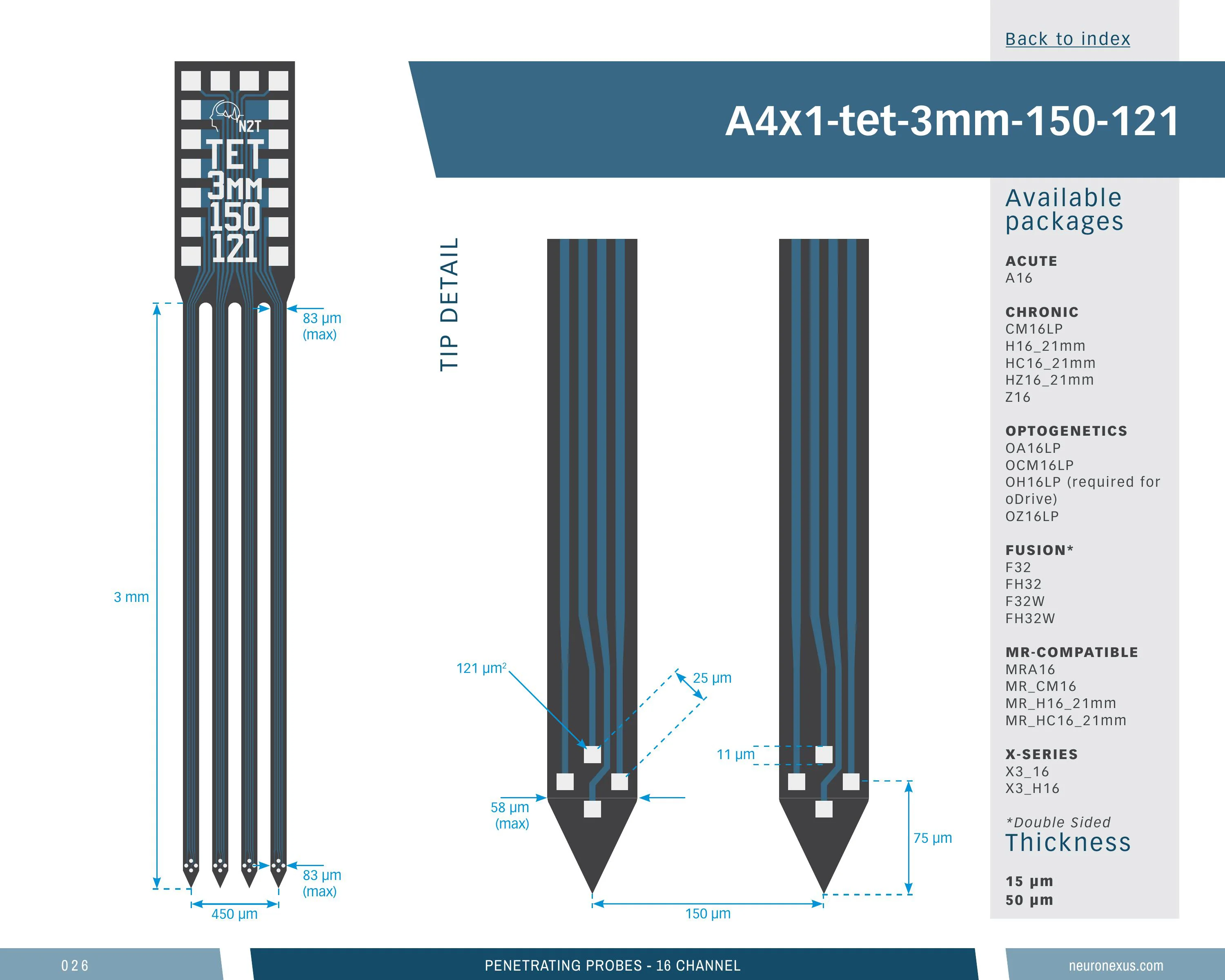

Part no.A4x1-tet-3mm-150-121
Contents

16-site A-Series polytrode/tetrode probe, 4 shanks

Four short shanks side by side, closely spaced for coverage within one structure, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it sits at the bottom: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.05 mm-deep site array (5th percentile), 695 sites/mm² (73rd percentile) and a 0.27 mm³ neural interface (9th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x1_tet_3mm_150_121

Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

14 specs

Channels16
Shanks4
Shank length3 mm
Shank separation150 µm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span46 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.272 mm³ (higher than 9% of 369 designs)
Site coverage density695.3 sites/mm² (higher than 73% of 369 designs)
Brain coverage density58.8 sites/mm³ (higher than 64% of 369 designs)
Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

50 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 3 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_ahc--a4x1_tet_3mm_150_121.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

50 of 50
Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

Loading the compatible products…

Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 17% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 12% of its family
Shank separation
0.15 mm
0.05 mm1.8 mm

Top 83% of catalog designs

Shank separation 0.15 mm — higher than 17% of catalog designs and 26% of its family
Maximum site depth
2.95 mm
0.972 mm51.29 mm

Top 89% of catalog designs

Maximum site depth 2.95 mm — higher than 11% of catalog designs and 9% of its family
Minimum site depth
2.9 mm
0.067 mm44.74 mm

Top 73% of catalog designs

Minimum site depth 2.9 mm — higher than 27% of catalog designs and 19% of its family
Span, x
0.496 mm
0.01 mm6.03 mm

Top 49% of catalog designs

Span, x 0.496 mm — higher than 51% of catalog designs and 53% of its family
Span, y
0.046 mm
0.01 mm10.55 mm

Top 95% of catalog designs

Span, y 0.046 mm — higher than 5% of catalog designs and 4% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its family
Site outline area
0.023 mm²
0.002 mm²28.74 mm²

Top 83% of catalog designs

Site outline area 0.023 mm² — higher than 17% of catalog designs and 9% of its family
Neural interface volume
0.272 mm³
0.149 mm³17.19 mm³

Top 91% of catalog designs

Neural interface volume 0.272 mm³ — higher than 9% of catalog designs and 16% of its family
Site coverage density
695.3 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 27% of catalog designs

Site coverage density 695.3 sites/mm² — higher than 73% of catalog designs and 75% of its family
Brain coverage density
58.78 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 36% of catalog designs

Brain coverage density 58.78 sites/mm³ — higher than 64% of catalog designs and 25% of its family
Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 4-Shank 16-Channel Probe, 3 mmSKU prb_ahc--a4x1_tet_3mm_150_121

Cited in 2,342 publications (product line)
