Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 4-Shank 32-Channel Probe, 10 mm

32Sites
4Shanks
10mmShank Length
17.68µmSite Pitch
Part no.A4x2-tet-10mm-1000-200-121
Contact us to order
Contents

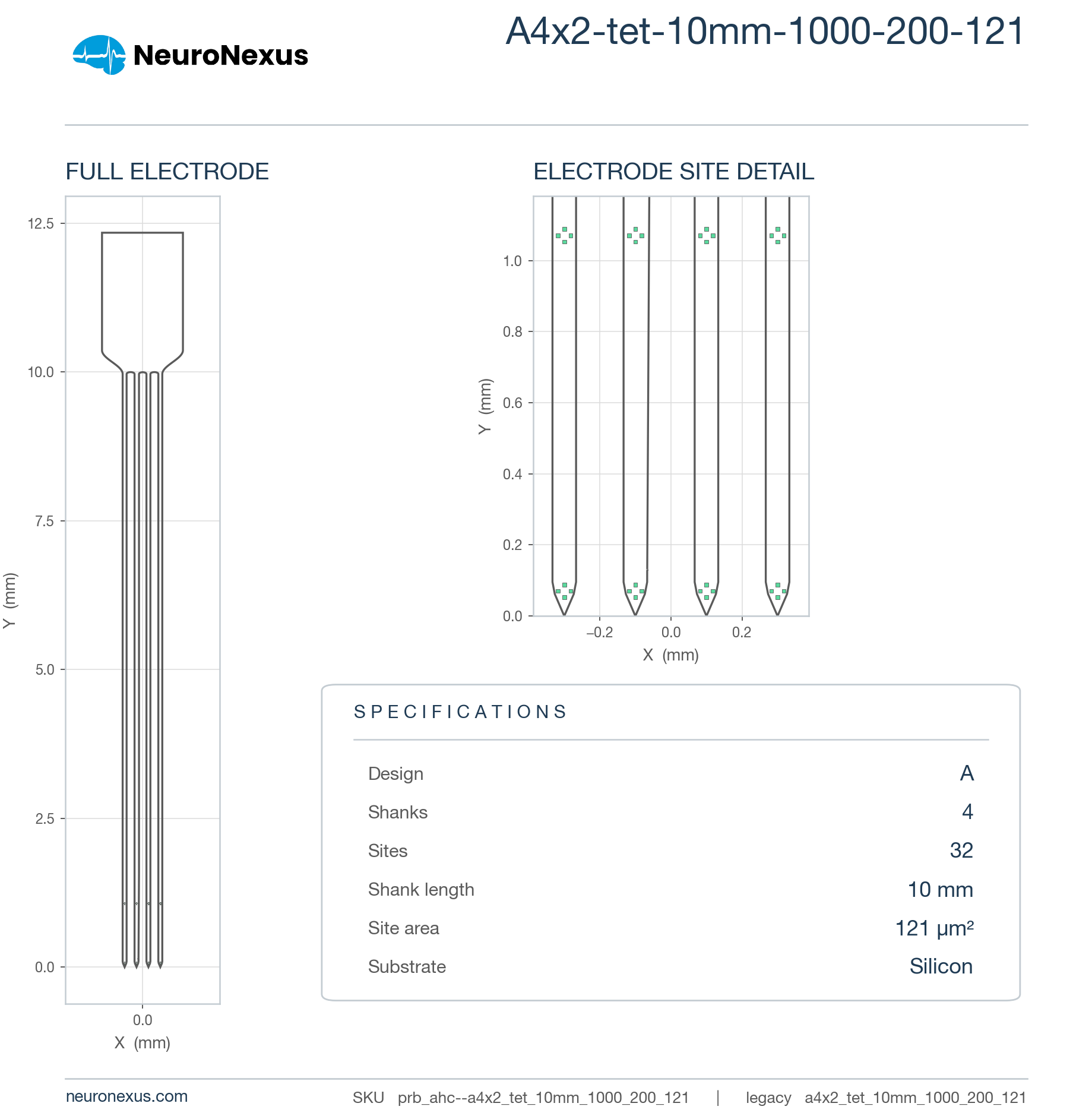

32-site A-Series polytrode/tetrode probe, 4 shanks, 10 mm, 1.05 mm array

Four long shanks side by side, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.05 mm-deep site array (54th percentile), 47 sites/mm² (20th percentile) and a 0.89 mm³ neural interface (63rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a4x2_tet_10mm_1000_200_121

Tetrode 4-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a4x2_tet_10mm_1000_200_121

13 specs

Channels32
Shanks4
Shank length10 mm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span1046 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.886 mm³ (higher than 63% of 369 designs)
Site coverage density47.3 sites/mm² (higher than 20% of 369 designs)
Brain coverage density36.1 sites/mm³ (higher than 41% of 369 designs)
Tetrode 4-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a4x2_tet_10mm_1000_200_121

Narrow the options with the filters or pick a card, then contact us to order that configuration.

4 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
H32 (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex

Your selection

32-channel 4-shank silicon probe, 10 mm — 15 μm, H32_21MM
H32_21MM
Substrate Thickness: 15 μm
Compatible Package: H32 (21 mm cable) — 32-ch Omnetics
SKUprb_ahc--a4x2_tet_10mm_1000_200_121.15um.h32_21mm

Options

4 of 4
Tetrode 4-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a4x2_tet_10mm_1000_200_121

Loading the compatible products…

Tetrode 4-Shank 32-Channel Probe, 10 mmSKU prb_ahc--a4x2_tet_10mm_1000_200_121

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Maximum site depth
9.95 mm
0.972 mm51.29 mm

Top 26% of catalog designs

Maximum site depth 9.95 mm — higher than 74% of catalog designs and 91% of its family
Minimum site depth
8.91 mm
0.067 mm44.74 mm

Top 18% of catalog designs

Minimum site depth 8.91 mm — higher than 82% of catalog designs and 81% of its family
Span, x
0.646 mm
0.01 mm6.03 mm

Top 32% of catalog designs

Span, x 0.646 mm — higher than 68% of catalog designs and 69% of its family
Span, y
1.05 mm
0.01 mm10.55 mm

Top 46% of catalog designs

Span, y 1.05 mm — higher than 54% of catalog designs and 76% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its family
Site outline area
0.676 mm²
0.002 mm²28.74 mm²

Top 26% of catalog designs

Site outline area 0.676 mm² — higher than 74% of catalog designs and 81% of its family
Neural interface volume
0.886 mm³
0.149 mm³17.19 mm³

Top 37% of catalog designs

Neural interface volume 0.886 mm³ — higher than 63% of catalog designs and 80% of its family
Site coverage density
47.31 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 80% of catalog designs

Site coverage density 47.31 sites/mm² — higher than 20% of catalog designs and 12% of its family
Brain coverage density
36.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 59% of catalog designs

Brain coverage density 36.1 sites/mm³ — higher than 41% of catalog designs and 15% of its family
