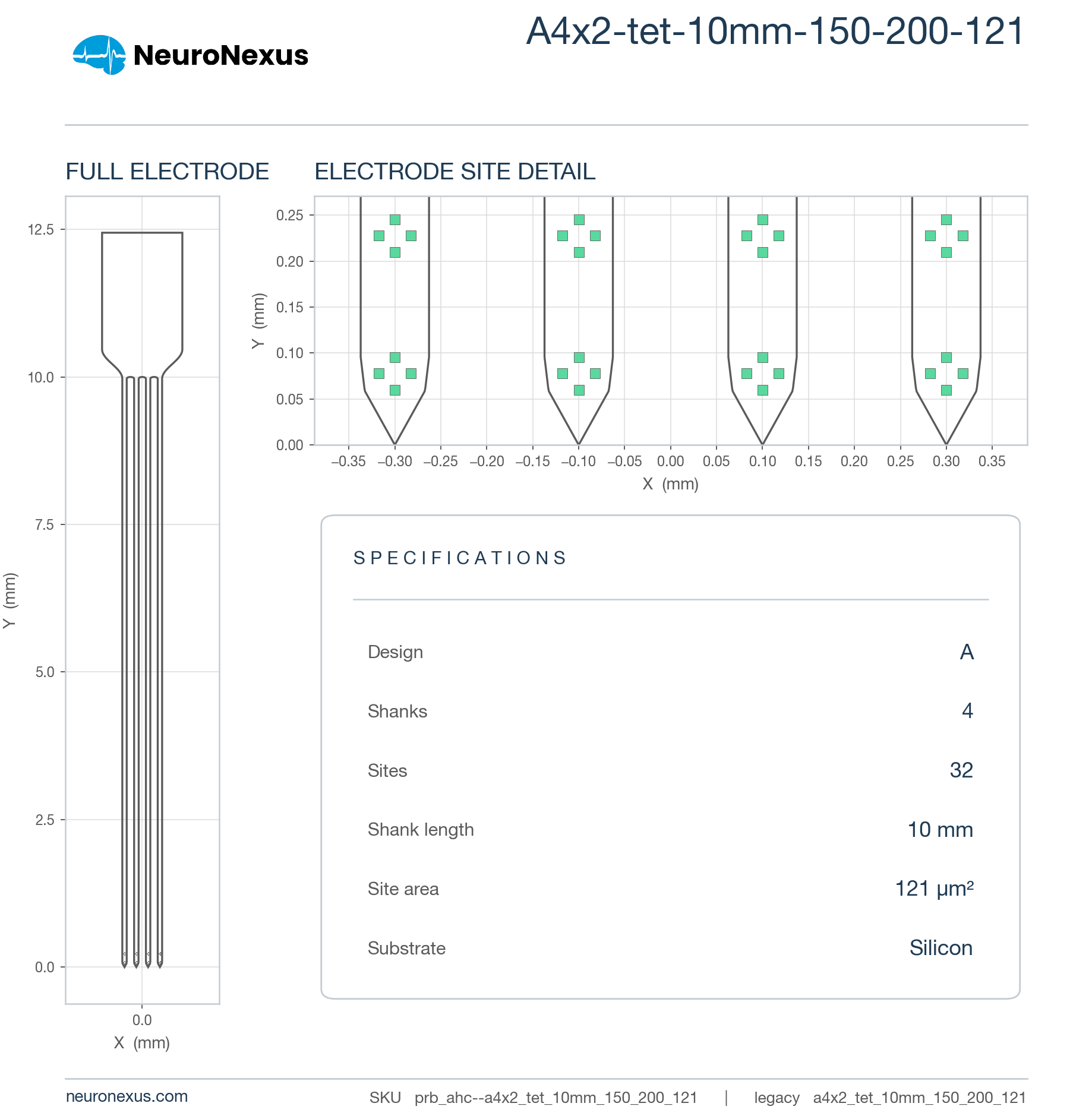

32-site A-Series polytrode/tetrode probe, 4 shanks, 10 mm, 0.2 mm array
Four long shanks side by side, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is in the lower quartile: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.2 mm-deep site array (12th percentile), 252 sites/mm² (52nd percentile) and a 0.4 mm³ neural interface (24th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.
a4x2_tet_10mm_150_200_121
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 10 mm |
| Site layout | Tetrode |
| Site area | 121 µm² |
| Site pitch | 17.68 µm |
| Vertical span | 196 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.399 mm³ (higher than 24% of 369 designs) |
| Site coverage density | 252.1 sites/mm² (higher than 52% of 369 designs) |
| Brain coverage density | 80.2 sites/mm³ (higher than 79% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
8 options
Configure
Your selection
32-channel 4-shank silicon probe, 10 mm — 15 μm, A32
A32Options
8 of 815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · A32 — 32-ch Samtec
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 56% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 84% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 96% of its familyTop 27% of catalog designs
Maximum site depth 9.95 mm — higher than 73% of catalog designs and 88% of its familyTop 9% of catalog designs
Minimum site depth 9.75 mm — higher than 91% of catalog designs and 96% of its familyTop 32% of catalog designs
Span, x 0.646 mm — higher than 68% of catalog designs and 69% of its familyTop 88% of catalog designs
Span, y 0.196 mm — higher than 12% of catalog designs and 16% of its familyTop 48% of catalog designs
Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its familyTop 85% of catalog designs
Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its familyTop 51% of catalog designs
Site outline area 0.127 mm² — higher than 49% of catalog designs and 48% of its familyTop 76% of catalog designs
Neural interface volume 0.399 mm³ — higher than 24% of catalog designs and 37% of its familyTop 48% of catalog designs
Site coverage density 252.1 sites/mm² — higher than 52% of catalog designs and 45% of its familyTop 21% of catalog designs
Brain coverage density 80.17 sites/mm³ — higher than 79% of catalog designs and 47% of its family3 notes · Geometry · Construction · Packaging and connector options
17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
