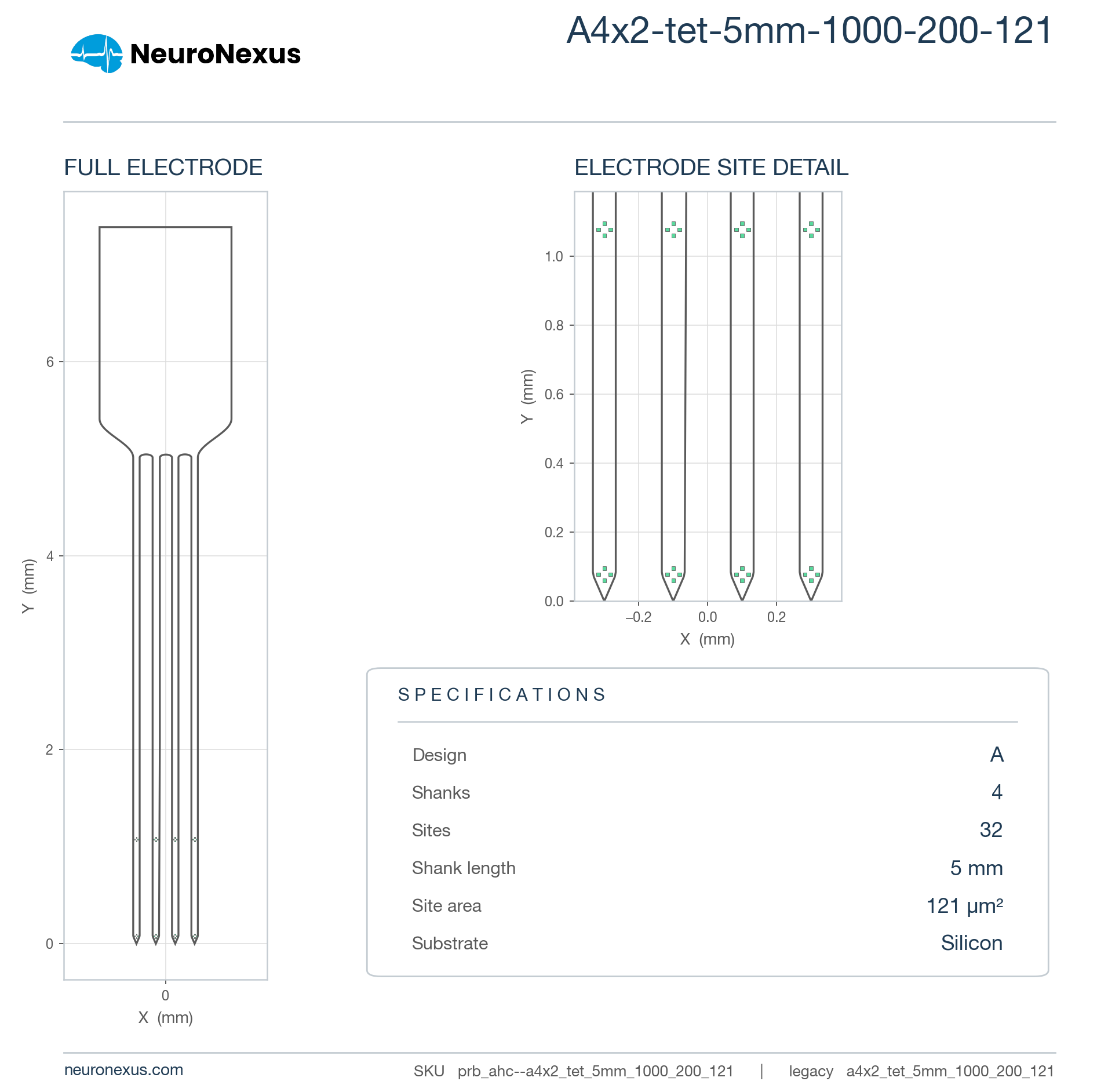

32-channel 4-shank silicon probe, 5 mm
32-channel silicon probe — 4 shanks carrying tetrode sites (121 µm², 17.68 µm pitch) on 5 mm shanks. Sites in close columns or clusters of four on the shank, for single-unit isolation and current-source density analysis. Shank length suits mouse and rat preparations.
a4x2_tet_5mm_1000_200_121
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Site layout | Tetrode |
| Site area | 121 µm² |
| Site pitch | 17.68 µm |
| Vertical span | 1046 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.886 mm³ (higher than 63% of 369 designs) |
| Site coverage density | 47.3 sites/mm² (higher than 20% of 369 designs) |
| Brain coverage density | 36.1 sites/mm³ (higher than 41% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
4 options
Configure
Your selection
32-channel 4-shank silicon probe, 5 mm — 15 μm, H32_21MM
H32_21MMOptions
4 of 415 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · H32 (21 mm cable) — 32-ch Omnetics
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 56% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 84% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 51% of its familyTop 72% of catalog designs
Maximum site depth 4.95 mm — higher than 28% of catalog designs and 31% of its familyTop 61% of catalog designs
Minimum site depth 3.9 mm — higher than 39% of catalog designs and 25% of its familyTop 32% of catalog designs
Span, x 0.646 mm — higher than 68% of catalog designs and 69% of its familyTop 46% of catalog designs
Span, y 1.05 mm — higher than 54% of catalog designs and 76% of its familyTop 48% of catalog designs
Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its familyTop 85% of catalog designs
Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its familyTop 26% of catalog designs
Site outline area 0.676 mm² — higher than 74% of catalog designs and 81% of its familyTop 37% of catalog designs
Neural interface volume 0.886 mm³ — higher than 63% of catalog designs and 80% of its familyTop 80% of catalog designs
Site coverage density 47.31 sites/mm² — higher than 20% of catalog designs and 12% of its familyTop 59% of catalog designs
Brain coverage density 36.1 sites/mm³ — higher than 41% of catalog designs and 15% of its family3 notes · Geometry · Construction · Packaging and connector options
17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
