Neural Probes · A-Series (Polytrode & Tetrode)

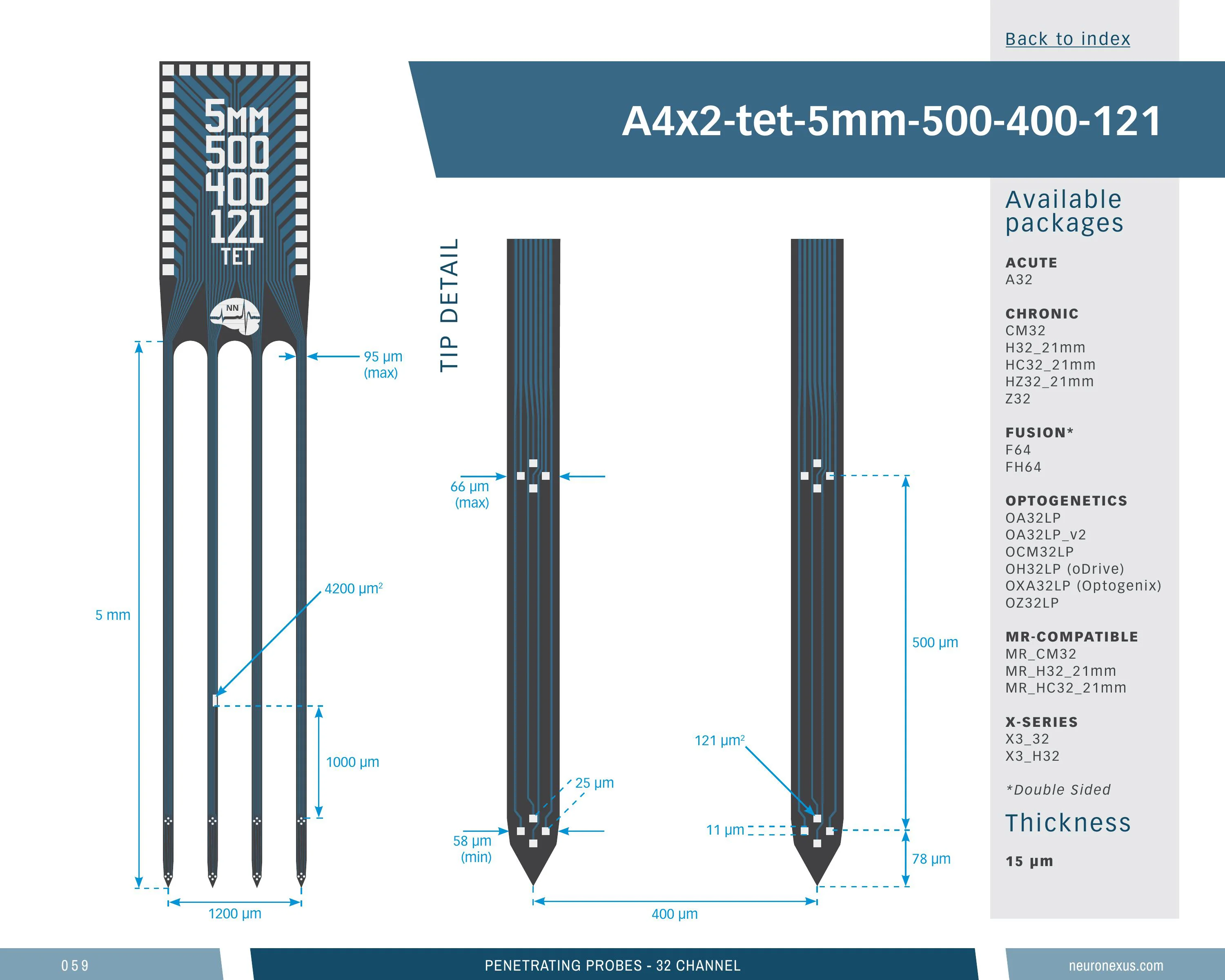

Tetrode 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
24.5µmSite Pitch
Part no.A4x2-tet-5mm-500-400-121
Contents

32-site A-Series polytrode/tetrode probe, 4 shanks, 24.5 µm pitch

Four mid-length shanks side by side, spread for lateral coverage across columns, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.56 mm-deep site array (30th percentile), 45 sites/mm² (19th percentile) and a 0.93 mm³ neural interface (67th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x2_tet_5mm_500_400_121

Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

14 specs

Channels32
Shanks4
Shank length5 mm
Shank separation400 µm
Site layoutTetrode
Site area121 µm²
Site pitch24.5 µm
Vertical span560 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.933 mm³ (higher than 67% of 369 designs)
Site coverage density45.3 sites/mm² (higher than 19% of 369 designs)
Brain coverage density34.3 sites/mm³ (higher than 36% of 369 designs)
Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a4x2_tet_5mm_500_400_121.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

Loading the compatible products…

Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Shank separation
0.4 mm
0.05 mm1.8 mm

Top 18% of catalog designs

Shank separation 0.4 mm — higher than 82% of catalog designs and 94% of its family
Maximum site depth
4.92 mm
0.972 mm51.29 mm

Top 75% of catalog designs

Maximum site depth 4.92 mm — higher than 25% of catalog designs and 19% of its family
Minimum site depth
4.37 mm
0.067 mm44.74 mm

Top 52% of catalog designs

Minimum site depth 4.37 mm — higher than 48% of catalog designs and 37% of its family
Span, x
1.26 mm
0.01 mm6.03 mm

Top 16% of catalog designs

Span, x 1.26 mm — higher than 84% of catalog designs and 88% of its family
Span, y
0.56 mm
0.01 mm10.55 mm

Top 70% of catalog designs

Span, y 0.56 mm — higher than 30% of catalog designs and 48% of its family
Site pitch, x
0.025 µm
0.012 µm0.57 µm

Top 32% of catalog designs

Site pitch, x 0.025 µm — higher than 68% of catalog designs and 65% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 74% of catalog designs

Site pitch, y 0.025 µm — higher than 26% of catalog designs and 71% of its family
Site outline area
0.706 mm²
0.002 mm²28.74 mm²

Top 24% of catalog designs

Site outline area 0.706 mm² — higher than 76% of catalog designs and 85% of its family
Neural interface volume
0.933 mm³
0.149 mm³17.19 mm³

Top 33% of catalog designs

Neural interface volume 0.933 mm³ — higher than 67% of catalog designs and 83% of its family
Site coverage density
45.32 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 81% of catalog designs

Site coverage density 45.32 sites/mm² — higher than 19% of catalog designs and 7% of its family
Brain coverage density
34.29 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 64% of catalog designs

Brain coverage density 34.29 sites/mm³ — higher than 36% of catalog designs and 8% of its family
Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 4-Shank 32-Channel Probe, 5 mmSKU prb_ahc--a4x2_tet_5mm_500_400_121

Cited in 2,342 publications (product line)
