Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 4-Shank 32-Channel Probe, 5.969 mm

32Sites
4Shanks
5.969mmShank Length
17.68µmSite Pitch
Part no.A4x2-tet-6mm150-200-177
Contact us to order
Contents

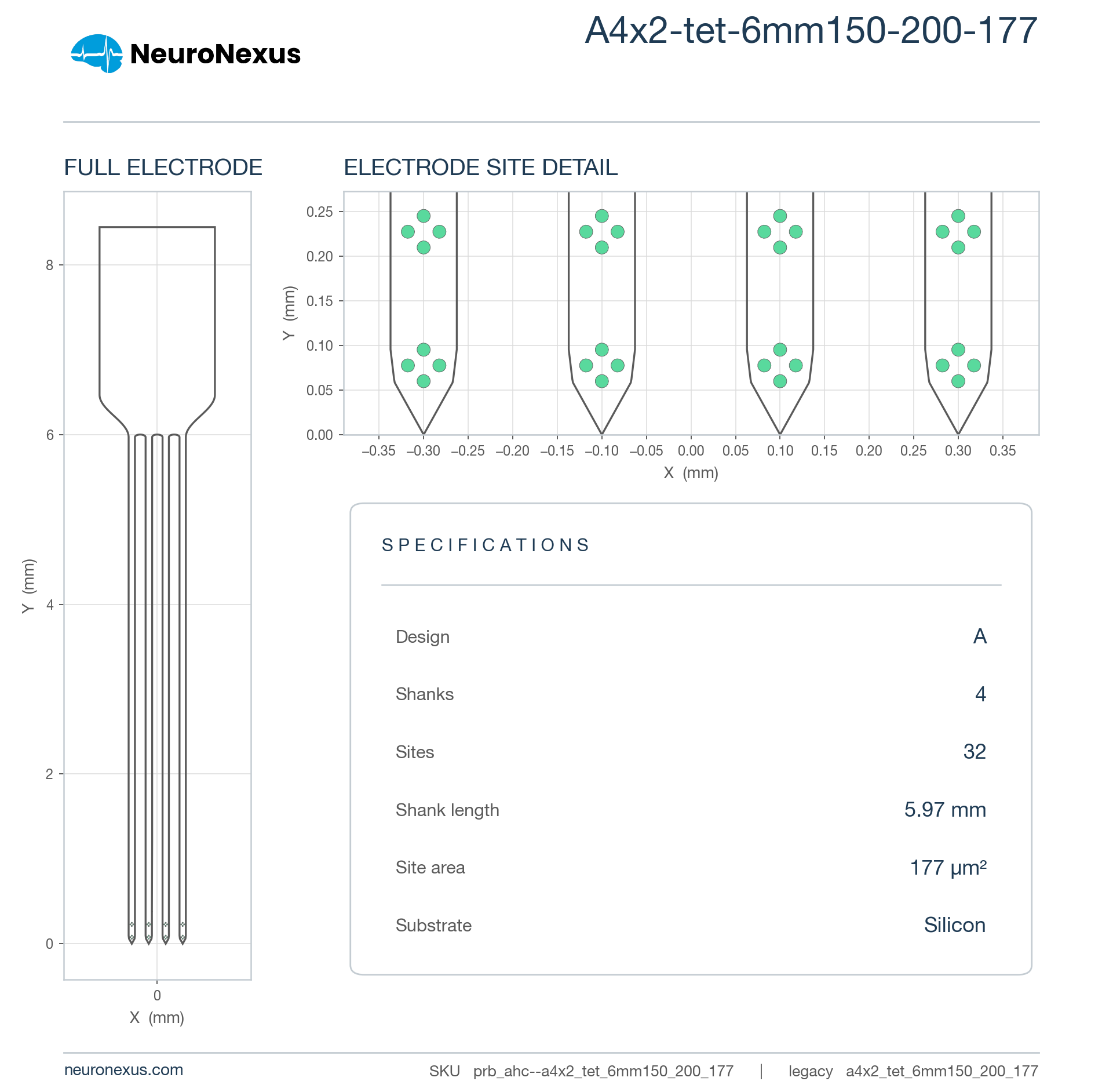

32-site A-Series polytrode/tetrode probe, 4 shanks, 6 mm

Four mid-length shanks side by side, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 6 mm shanks (54th percentile of the 366 measured), a 0.2 mm-deep site array (13th percentile), 246 sites/mm² (51st percentile) and a 0.4 mm³ neural interface (25th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x2_tet_6mm150_200_177

Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

13 specs

Channels32
Shanks4
Shank length5.969 mm
Site layoutTetrode
Site area177 µm²
Site pitch17.68 µm
Vertical span200 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.403 mm³ (higher than 25% of 369 designs)
Site coverage density245.7 sites/mm² (higher than 51% of 369 designs)
Brain coverage density79.5 sites/mm³ (higher than 78% of 369 designs)
Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

4 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
H32 (21 mm cable) — 32-ch Omnetics
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics

Your selection

32-channel 4-shank silicon probe, 5.969 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a4x2_tet_6mm150_200_177.15um.a32

Options

4 of 4
Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

Loading the compatible products…

Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5.97 mm
1 mm60 mm

Top 46% of catalog designs

Shank length 5.97 mm — higher than 54% of catalog designs and 52% of its family
Maximum site depth
5.92 mm
0.972 mm51.29 mm

Top 46% of catalog designs

Maximum site depth 5.92 mm — higher than 54% of catalog designs and 53% of its family
Minimum site depth
5.72 mm
0.067 mm44.74 mm

Top 36% of catalog designs

Minimum site depth 5.72 mm — higher than 64% of catalog designs and 65% of its family
Span, x
0.65 mm
0.01 mm6.03 mm

Top 30% of catalog designs

Span, x 0.65 mm — higher than 70% of catalog designs and 71% of its family
Span, y
0.2 mm
0.01 mm10.55 mm

Top 87% of catalog designs

Span, y 0.2 mm — higher than 13% of catalog designs and 17% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 67% of catalog designs

Site pitch, x 0.018 µm — higher than 33% of catalog designs and 29% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its family
Site outline area
0.13 mm²
0.002 mm²28.74 mm²

Top 51% of catalog designs

Site outline area 0.13 mm² — higher than 49% of catalog designs and 49% of its family
Neural interface volume
0.403 mm³
0.149 mm³17.19 mm³

Top 75% of catalog designs

Neural interface volume 0.403 mm³ — higher than 25% of catalog designs and 39% of its family
Site coverage density
245.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 49% of catalog designs

Site coverage density 245.7 sites/mm² — higher than 51% of catalog designs and 43% of its family
Brain coverage density
79.46 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 22% of catalog designs

Brain coverage density 79.46 sites/mm³ — higher than 78% of catalog designs and 44% of its family
Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

3 notes · Geometry · Construction · Packaging and connector options

Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 4-Shank 32-Channel Probe, 5.969 mmSKU prb_ahc--a4x2_tet_6mm150_200_177

Cited in 2,342 publications (product line)
