Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 4-Shank 32-Channel Probe, 7 mm

32Sites
4Shanks
7mmShank Length
24.5µmSite Pitch
Part no.A4x2-tet-7mm150-200-121
Contact us to order
Contents

32-site A-Series polytrode/tetrode probe, 4 shanks, 7 mm

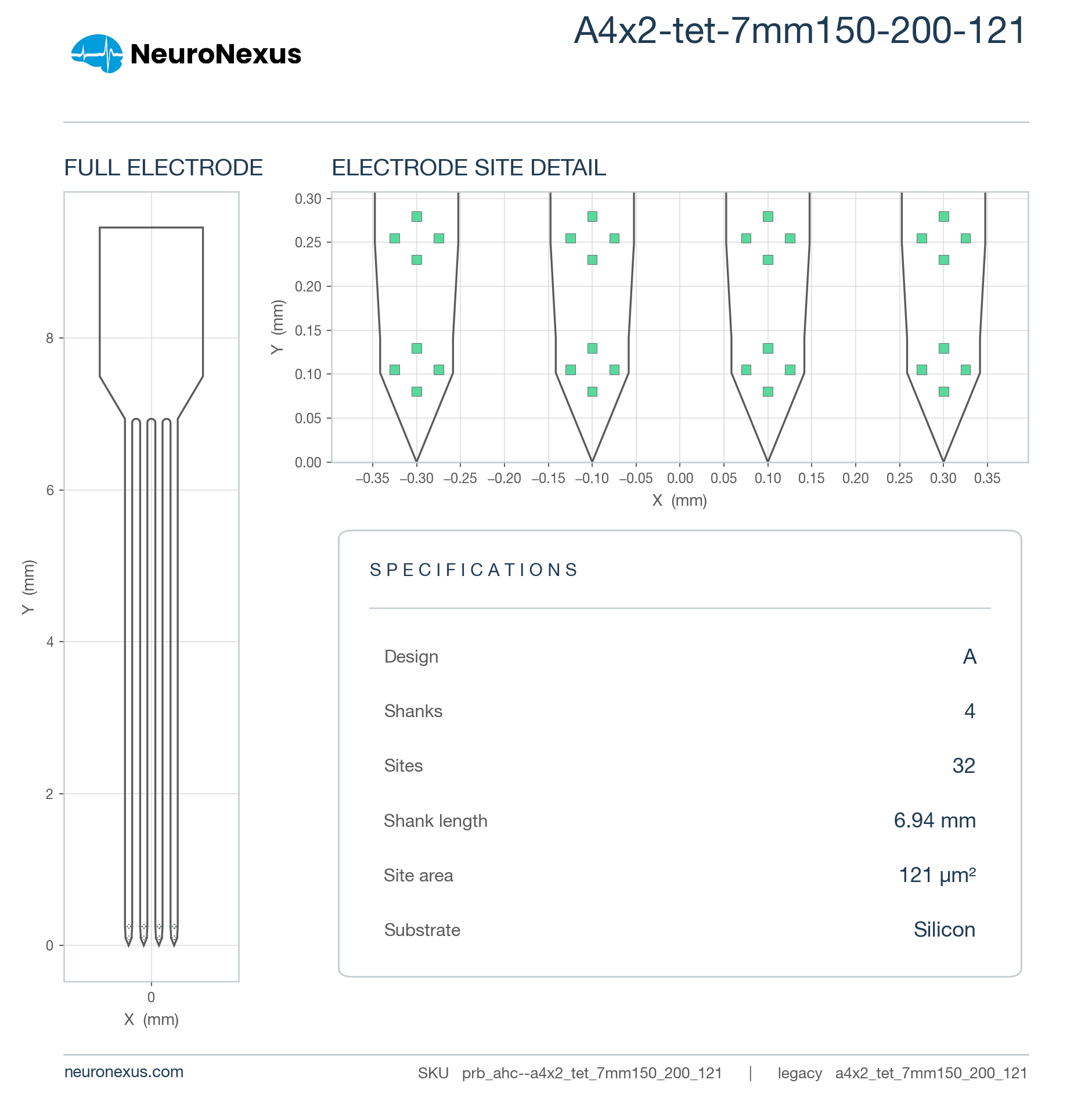

Four long shanks side by side, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 7 mm shanks (64th percentile of the 366 measured), a 0.21 mm-deep site array (14th percentile), 231 sites/mm² (50th percentile) and a 0.41 mm³ neural interface (26th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a4x2_tet_7mm150_200_121

Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

13 specs

Channels32
Shanks4
Shank length7 mm
Site layoutTetrode
Site area121 µm²
Site pitch24.5 µm
Vertical span210 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.412 mm³ (higher than 26% of 369 designs)
Site coverage density230.5 sites/mm² (higher than 50% of 369 designs)
Brain coverage density77.6 sites/mm³ (higher than 78% of 369 designs)
Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

Narrow the options with the filters or pick a card, then contact us to order that configuration.

5 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex

Your selection

32-channel 4-shank silicon probe, 7 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_ahc--a4x2_tet_7mm150_200_121.15um.a32

Options

5 of 5
Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

Loading the compatible products…

Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
7 mm
1 mm60 mm

Top 36% of catalog designs

Shank length 7 mm — higher than 64% of catalog designs and 69% of its family
Maximum site depth
6.92 mm
0.972 mm51.29 mm

Top 39% of catalog designs

Maximum site depth 6.92 mm — higher than 61% of catalog designs and 67% of its family
Minimum site depth
6.71 mm
0.067 mm44.74 mm

Top 31% of catalog designs

Minimum site depth 6.71 mm — higher than 69% of catalog designs and 69% of its family
Span, x
0.661 mm
0.01 mm6.03 mm

Top 29% of catalog designs

Span, x 0.661 mm — higher than 71% of catalog designs and 73% of its family
Span, y
0.21 mm
0.01 mm10.55 mm

Top 86% of catalog designs

Span, y 0.21 mm — higher than 14% of catalog designs and 21% of its family
Site pitch, x
0.025 µm
0.012 µm0.57 µm

Top 32% of catalog designs

Site pitch, x 0.025 µm — higher than 68% of catalog designs and 65% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 74% of catalog designs

Site pitch, y 0.025 µm — higher than 26% of catalog designs and 71% of its family
Site outline area
0.139 mm²
0.002 mm²28.74 mm²

Top 50% of catalog designs

Site outline area 0.139 mm² — higher than 50% of catalog designs and 53% of its family
Neural interface volume
0.412 mm³
0.149 mm³17.19 mm³

Top 74% of catalog designs

Neural interface volume 0.412 mm³ — higher than 26% of catalog designs and 43% of its family
Site coverage density
230.5 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 50% of catalog designs

Site coverage density 230.5 sites/mm² — higher than 50% of catalog designs and 40% of its family
Brain coverage density
77.64 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 22% of catalog designs

Brain coverage density 77.64 sites/mm³ — higher than 78% of catalog designs and 41% of its family
Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

3 notes · Geometry · Construction · Packaging and connector options

Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 4-Shank 32-Channel Probe, 7 mmSKU prb_ahc--a4x2_tet_7mm150_200_121

Cited in 2,342 publications (product line)
