Neural Probes · A-Series (Polytrode & Tetrode)

4-Shank 128-Channel Probe, 5 mm

128Sites
4Shanks
5mmShank Length
23µmSite Pitch

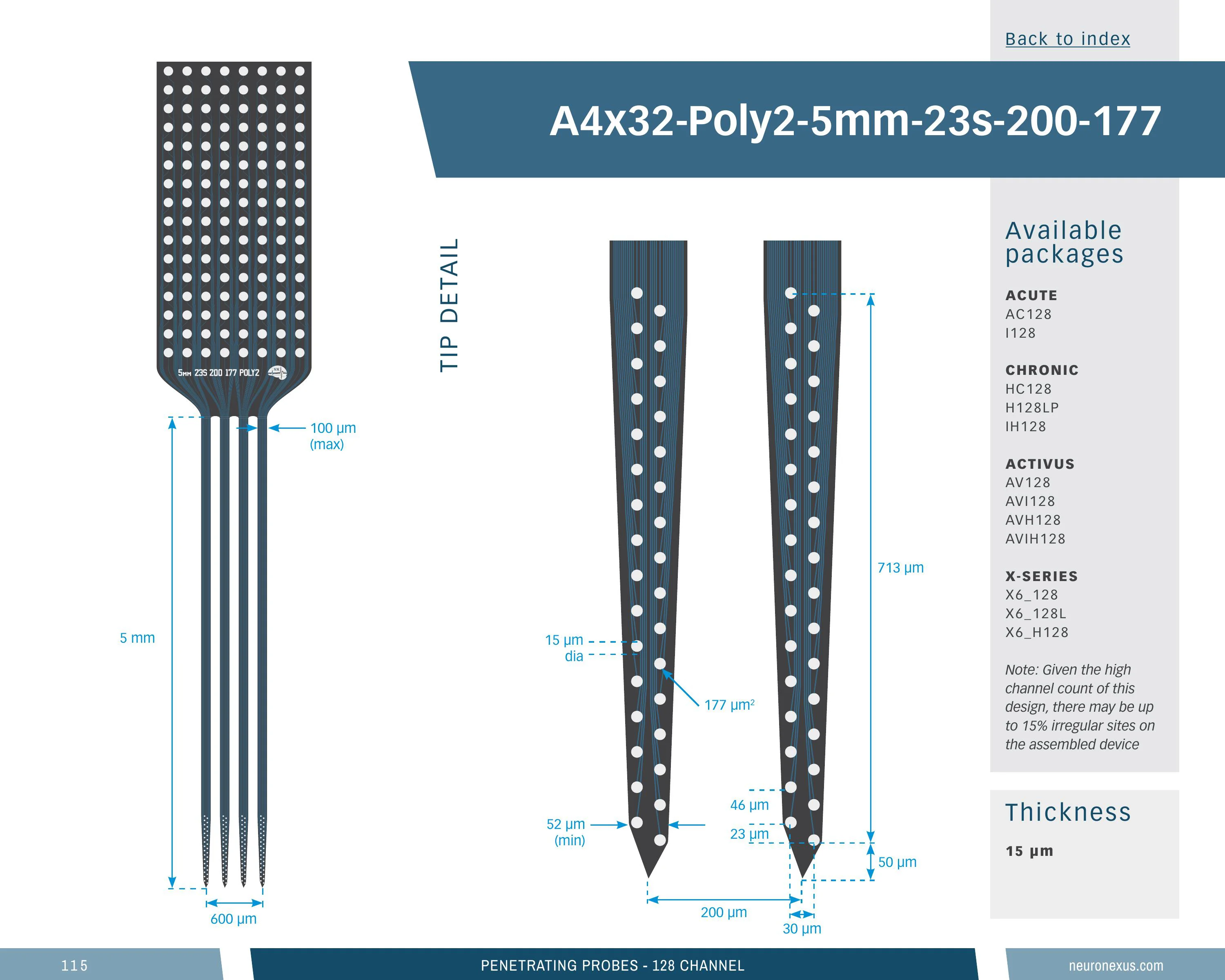

Part no.A4x32-Poly2-5mm-23s-200-177
Contents

128-site A-Series polytrode/tetrode probe, 4 shanks, 177 µm²

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.73 mm-deep site array (38th percentile), 273 sites/mm² (54th percentile) and a 0.7 mm³ neural interface (56th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat not available on this close-spaced poly layout. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x32_poly2_5mm_23s_200_177

4-Shank 128-Channel Probe, 5 mmSKU prb_ahc--a4x32_poly2_5mm_23s_200_177

14 specs

Channels128
Shanks4
Shank length5 mm
Shank separation200 µm
Site layoutPoly2
Site area177 µm²
Site pitch23 µm
Vertical span728 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.703 mm³ (higher than 56% of 369 designs)
Site coverage density272.7 sites/mm² (higher than 54% of 369 designs)
Brain coverage density182.1 sites/mm³ (higher than 96% of 369 designs)
4-Shank 128-Channel Probe, 5 mmSKU prb_ahc--a4x32_poly2_5mm_23s_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

14 options

Configure

Compatible Package
All
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 4-shank silicon probe, 5 mm — 15 μm, AC128
AC128
Compatible Package: AC128 — 128-ch Omnetics
SKUprb_ahc--a4x32_poly2_5mm_23s_200_177.15um.ac128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

14 of 14
4-Shank 128-Channel Probe, 5 mmSKU prb_ahc--a4x32_poly2_5mm_23s_200_177

Loading the compatible products…

4-Shank 128-Channel Probe, 5 mmSKU prb_ahc--a4x32_poly2_5mm_23s_200_177

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 91% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 51% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 69% of catalog designs

Maximum site depth 4.96 mm — higher than 31% of catalog designs and 36% of its family
Minimum site depth
4.23 mm
0.067 mm44.74 mm

Top 55% of catalog designs

Minimum site depth 4.23 mm — higher than 45% of catalog designs and 33% of its family
Span, x
0.645 mm
0.01 mm6.03 mm

Top 34% of catalog designs

Span, x 0.645 mm — higher than 66% of catalog designs and 57% of its family
Span, y
0.728 mm
0.01 mm10.55 mm

Top 62% of catalog designs

Span, y 0.728 mm — higher than 38% of catalog designs and 61% of its family
Site pitch, x
0.03 µm
0.012 µm0.57 µm

Top 26% of catalog designs

Site pitch, x 0.03 µm — higher than 74% of catalog designs and 71% of its family
Site pitch, y
0.023 µm
0.01 µm1.5 µm

Top 75% of catalog designs

Site pitch, y 0.023 µm — higher than 25% of catalog designs and 68% of its family
Site outline area
0.469 mm²
0.002 mm²28.74 mm²

Top 31% of catalog designs

Site outline area 0.469 mm² — higher than 69% of catalog designs and 77% of its family
Neural interface volume
0.703 mm³
0.149 mm³17.19 mm³

Top 44% of catalog designs

Neural interface volume 0.703 mm³ — higher than 56% of catalog designs and 73% of its family
Site coverage density
272.7 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 46% of catalog designs

Site coverage density 272.7 sites/mm² — higher than 54% of catalog designs and 48% of its family
Brain coverage density
182.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 4% of catalog designs

Brain coverage density 182.1 sites/mm³ — higher than 96% of catalog designs and 87% of its family
