4-Shank 128-Channel Probe, 5 mm
128-site A-Series polytrode/tetrode probe, 4 shanks, 220 µm²
Four mid-length shanks side by side, spread for lateral coverage across columns, with sites staggered in five columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it sits at the top: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 4.38 mm-deep site array (95th percentile), 29 sites/mm² (10th percentile) and a 3.66 mm³ neural interface (97th percentile).
Mid-sized sites balance unit isolation against field-potential pickup, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

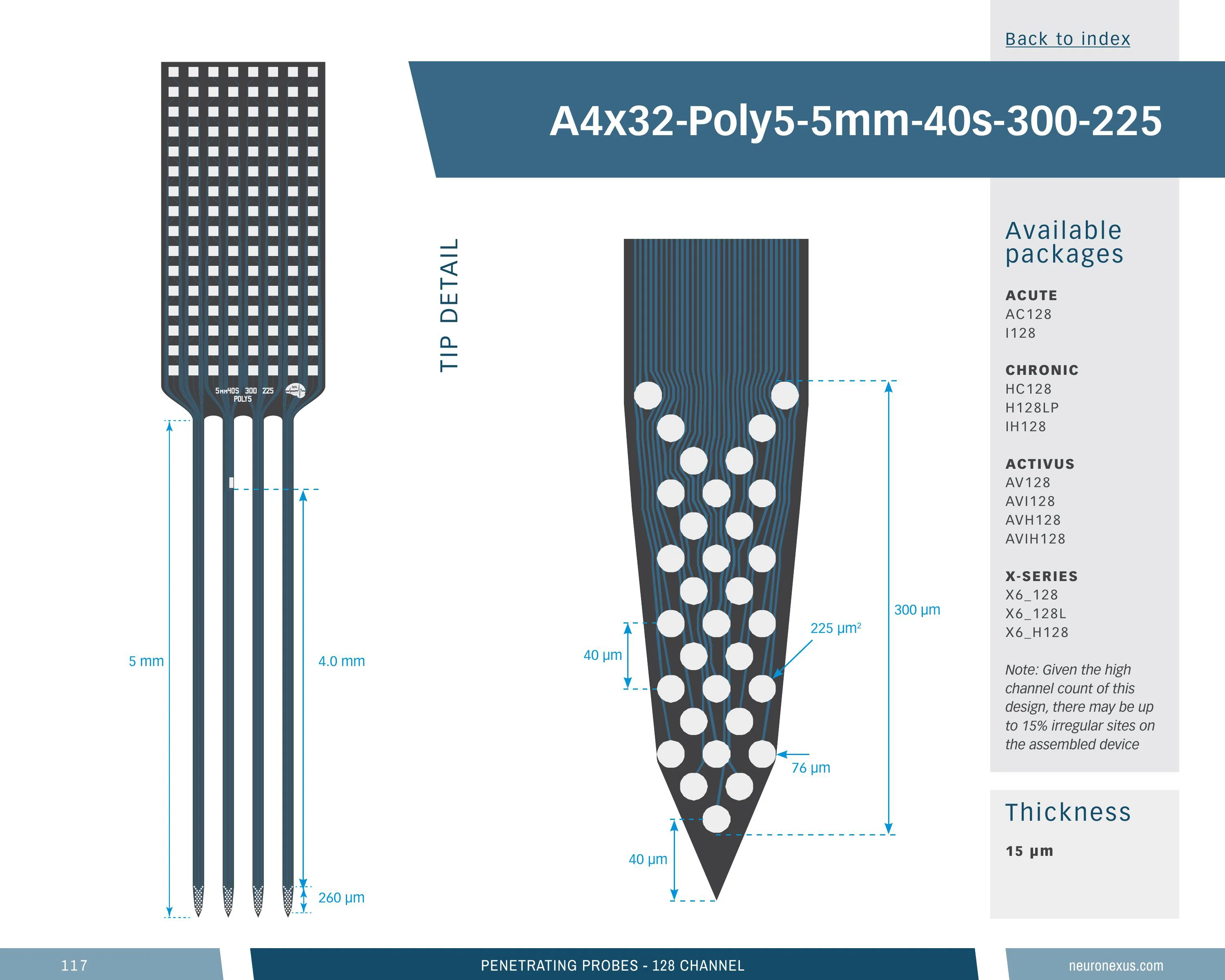

a4x32_poly5_5mm_40s_300_225
14 specs
| Channels | 128 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 300 µm |
| Site layout | Poly5 |
| Site area | 220 µm² |
| Site pitch | 20 µm |
| Vertical span | 4383 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 3.664 mm³ (higher than 97% of 369 designs) |
| Site coverage density | 29.2 sites/mm² (higher than 10% of 369 designs) |
| Brain coverage density | 34.9 sites/mm³ (higher than 40% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
14 options
Configure
Your selection
128-channel 4-shank silicon probe, 5 mm — 15 μm, AVIH128
AVIH128Options
14 of 14AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
Loading the compatible products…
14 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 4% of catalog designs
Sites 128 — higher than 96% of catalog designs and 91% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 84% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 51% of its familyTop 27% of catalog designs
Shank separation 0.3 mm — higher than 73% of catalog designs and 89% of its familyTop 61% of catalog designs
Maximum site depth 4.96 mm — higher than 39% of catalog designs and 43% of its familyTop 97% of catalog designs
Minimum site depth 0.576 mm — higher than 3% of catalog designs and 1% of its familyTop 26% of catalog designs
Span, x 1 mm — higher than 74% of catalog designs and 79% of its familyTop 5% of catalog designs · largest in its family
Span, y 4.38 mm — higher than 95% of catalog designs and 100% of its family (the largest in its family, 75 designs)Top 90% of catalog designs
Site pitch, x 0.014 µm — higher than 10% of catalog designs and 4% of its familyTop 78% of catalog designs
Site pitch, y 0.02 µm — higher than 22% of catalog designs and 59% of its familyTop 3% of catalog designs
Site outline area 4.39 mm² — higher than 97% of catalog designs and 99% of its familyTop 3% of catalog designs
Neural interface volume 3.66 mm³ — higher than 97% of catalog designs and 99% of its familyTop 90% of catalog designs
Site coverage density 29.18 sites/mm² — higher than 10% of catalog designs and 3% of its familyTop 60% of catalog designs
Brain coverage density 34.94 sites/mm³ — higher than 40% of catalog designs and 11% of its family5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …
17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
