Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 4-Shank 64-Channel Probe, 5 mm

64Sites
4Shanks
5mmShank Length
17.68µmSite Pitch

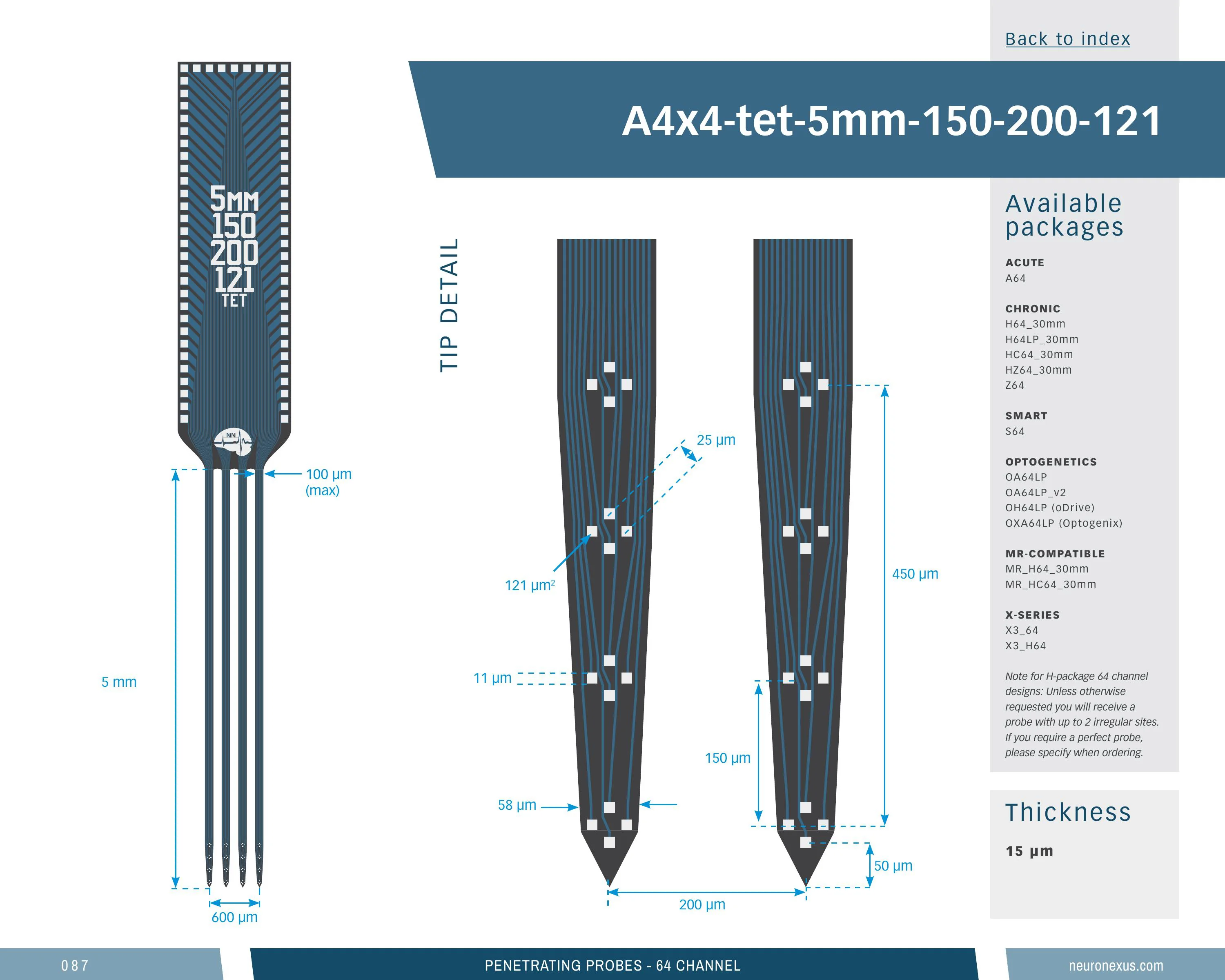

Part no.A4x4-tet-5mm-150-200-121
Contents

64-site A-Series polytrode/tetrode probe, 4 shanks, 5 mm, 121 µm²

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.5 mm-deep site array (28th percentile), 199 sites/mm² (46th percentile) and a 0.57 mm³ neural interface (46th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_tet_5mm_150_200_121

Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

14 specs

Channels64
Shanks4
Shank length5 mm
Shank separation200 µm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span496 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.571 mm³ (higher than 46% of 369 designs)
Site coverage density199.5 sites/mm² (higher than 46% of 369 designs)
Brain coverage density112.1 sites/mm³ (higher than 91% of 369 designs)
Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 4-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_ahc--a4x4_tet_5mm_150_200_121.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

Loading the compatible products…

Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 83% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 51% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 60% of catalog designs

Maximum site depth 4.96 mm — higher than 40% of catalog designs and 44% of its family
Minimum site depth
4.46 mm
0.067 mm44.74 mm

Top 49% of catalog designs

Minimum site depth 4.46 mm — higher than 51% of catalog designs and 40% of its family
Span, x
0.646 mm
0.01 mm6.03 mm

Top 32% of catalog designs

Span, x 0.646 mm — higher than 68% of catalog designs and 69% of its family
Span, y
0.496 mm
0.01 mm10.55 mm

Top 72% of catalog designs

Span, y 0.496 mm — higher than 28% of catalog designs and 44% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its family
Site outline area
0.321 mm²
0.002 mm²28.74 mm²

Top 39% of catalog designs

Site outline area 0.321 mm² — higher than 61% of catalog designs and 69% of its family
Neural interface volume
0.571 mm³
0.149 mm³17.19 mm³

Top 54% of catalog designs

Neural interface volume 0.571 mm³ — higher than 46% of catalog designs and 61% of its family
Site coverage density
199.5 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 54% of catalog designs

Site coverage density 199.5 sites/mm² — higher than 46% of catalog designs and 31% of its family
Brain coverage density
112.1 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 9% of catalog designs

Brain coverage density 112.1 sites/mm³ — higher than 91% of catalog designs and 69% of its family
Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 4-Shank 64-Channel Probe, 5 mmSKU prb_ahc--a4x4_tet_5mm_150_200_121

Cited in 2,342 publications (product line)
