Neural Probes · A-Series (Polytrode & Tetrode)

4-Shank 256-Channel Probe, 5 mm

256Sites
4Shanks
5mmShank Length
23µmSite Pitch

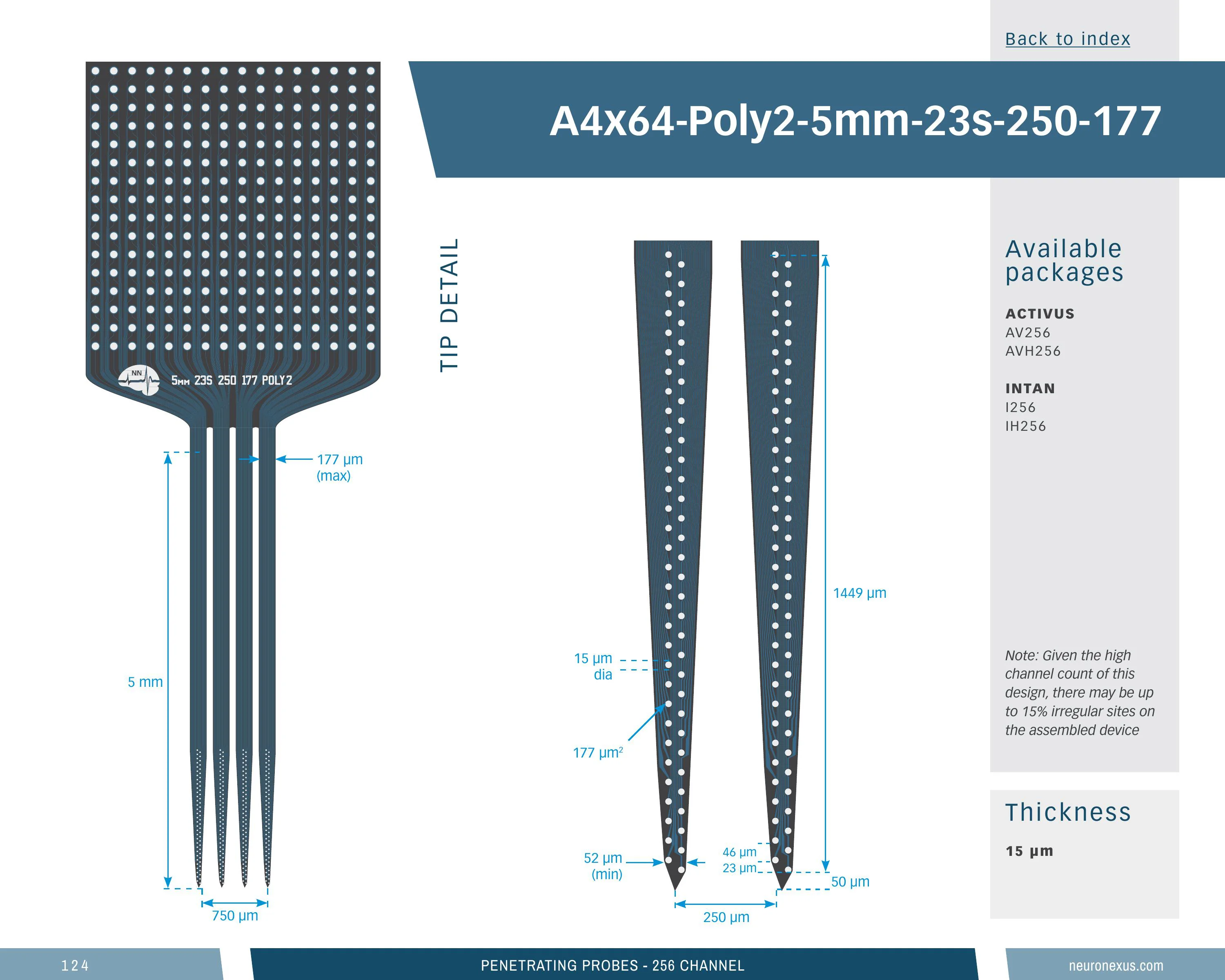

Part no.A4x64-Poly2-5mm-23s-250-177
Contents

256-site A-Series polytrode/tetrode probe, 4 shanks

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 5 mm shanks (a common choice — 108 of 366), a 1.46 mm-deep site array (66th percentile), 220 sites/mm² (49th percentile) and a 1.27 mm³ neural interface (80th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat not available on this close-spaced poly layout. Research use only.

Also known as

a4x64_poly2_5mm_23s_250_177

4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

14 specs

Channels256
Shanks4
Shank length5 mm
Shank separation250 µm
Site layoutPoly2
Site area177 µm²
Site pitch23 µm
Vertical span1464 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.272 mm³ (higher than 80% of 369 designs)
Site coverage density219.9 sites/mm² (higher than 49% of 369 designs)
Brain coverage density201.3 sites/mm³ (higher than 97% of 369 designs)
4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 4-shank silicon probe, 5 mm — 15 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_ahc--a4x64_poly2_5mm_23s_250_177.15um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

Loading the compatible products…

4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 75 designs)
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 84% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 51% of its family
Shank separation
0.25 mm
0.05 mm1.8 mm

Top 32% of catalog designs

Shank separation 0.25 mm — higher than 68% of catalog designs and 86% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 61% of catalog designs

Maximum site depth 4.96 mm — higher than 39% of catalog designs and 41% of its family
Minimum site depth
3.49 mm
0.067 mm44.74 mm

Top 67% of catalog designs

Minimum site depth 3.49 mm — higher than 33% of catalog designs and 21% of its family
Span, x
0.795 mm
0.01 mm6.03 mm

Top 28% of catalog designs

Span, x 0.795 mm — higher than 72% of catalog designs and 75% of its family
Span, y
1.46 mm
0.01 mm10.55 mm

Top 34% of catalog designs

Span, y 1.46 mm — higher than 66% of catalog designs and 85% of its family
Site pitch, x
0.03 µm
0.012 µm0.57 µm

Top 26% of catalog designs

Site pitch, x 0.03 µm — higher than 74% of catalog designs and 71% of its family
Site pitch, y
0.023 µm
0.01 µm1.5 µm

Top 75% of catalog designs

Site pitch, y 0.023 µm — higher than 25% of catalog designs and 68% of its family
Site outline area
1.16 mm²
0.002 mm²28.74 mm²

Top 15% of catalog designs

Site outline area 1.16 mm² — higher than 85% of catalog designs and 89% of its family
Neural interface volume
1.27 mm³
0.149 mm³17.19 mm³

Top 20% of catalog designs

Neural interface volume 1.27 mm³ — higher than 80% of catalog designs and 89% of its family
Site coverage density
219.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 51% of catalog designs

Site coverage density 219.9 sites/mm² — higher than 49% of catalog designs and 37% of its family
Brain coverage density
201.3 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 3% of catalog designs

Brain coverage density 201.3 sites/mm³ — higher than 97% of catalog designs and 92% of its family
4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

4-Shank 256-Channel Probe, 5 mmSKU prb_ahc--a4x64_poly2_5mm_23s_250_177

Cited in 2,342 publications (product line)
