Neural Probes · A-Series (Polytrode & Tetrode)

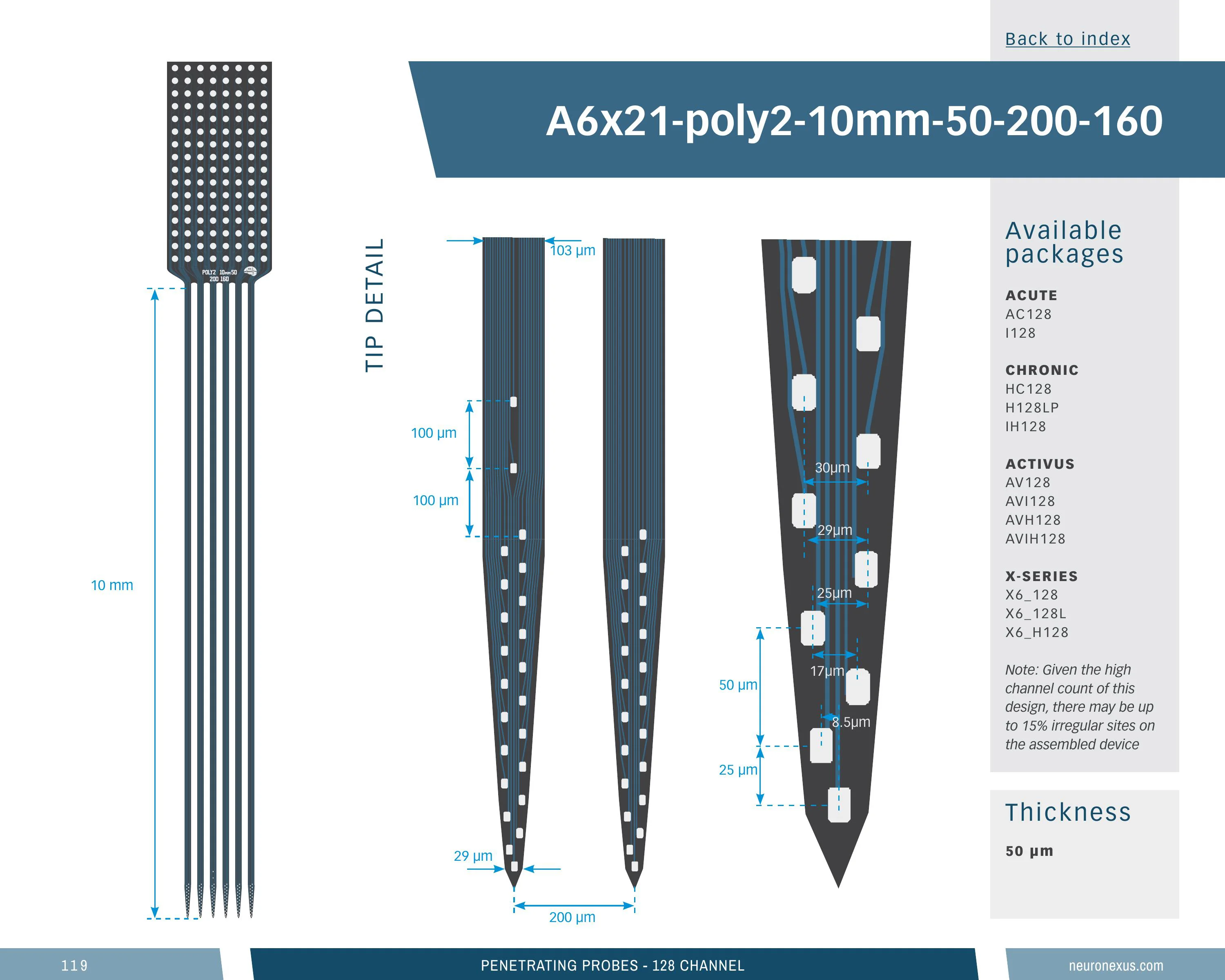

6-Shank 128-Channel Probe, 10 mm

128Sites
6Shanks
10mmShank Length
25µmSite Pitch
Part no.A6x21-Poly2-10mm-50-200-160
Contents

128-site A-Series polytrode/tetrode probe, 6 shanks

Six long shanks side by side, closely spaced for coverage within one structure, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 10 mm shanks (a common choice — 80 of 366), a 0.71 mm-deep site array (38th percentile), 172 sites/mm² (45th percentile) and a 0.94 mm³ neural interface (67th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a6x21_poly2_10mm_50_200_160

6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

14 specs

Channels128
Shanks6
Shank length10 mm
Shank separation200 µm
Site layoutPoly2
Site area160 µm²
Site pitch25 µm
Vertical span715 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.936 mm³ (higher than 67% of 369 designs)
Site coverage density172.0 sites/mm² (higher than 45% of 369 designs)
Brain coverage density136.7 sites/mm³ (higher than 93% of 369 designs)
6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

14 options

Configure

Compatible Package
All
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 6-shank silicon probe, 10 mm — 50 μm, A96
A96
Compatible Package: A96 — 96-ch Samtec
SKUprb_ahc--a6x21_poly2_10mm_50_200_160.50um.a96
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

14 of 14
6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

Loading the compatible products…

6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 91% of its family
Shanks
6
116

Top 13% of catalog designs

Shanks 6 — higher than 87% of catalog designs and 87% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 96% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 80% of its family
Maximum site depth
9.97 mm
0.972 mm51.29 mm

Top 13% of catalog designs

Maximum site depth 9.97 mm — higher than 87% of catalog designs and 96% of its family
Minimum site depth
9.26 mm
0.067 mm44.74 mm

Top 14% of catalog designs

Minimum site depth 9.26 mm — higher than 86% of catalog designs and 87% of its family
Span, x
1.04 mm
0.01 mm6.03 mm

Top 24% of catalog designs

Span, x 1.04 mm — higher than 76% of catalog designs and 83% of its family
Span, y
0.715 mm
0.01 mm10.55 mm

Top 62% of catalog designs

Span, y 0.715 mm — higher than 38% of catalog designs and 60% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 84% of its family
Site outline area
0.744 mm²
0.002 mm²28.74 mm²

Top 24% of catalog designs

Site outline area 0.744 mm² — higher than 76% of catalog designs and 87% of its family
Neural interface volume
0.936 mm³
0.149 mm³17.19 mm³

Top 33% of catalog designs

Neural interface volume 0.936 mm³ — higher than 67% of catalog designs and 84% of its family
Site coverage density
172 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 55% of catalog designs

Site coverage density 172 sites/mm² — higher than 45% of catalog designs and 27% of its family
Brain coverage density
136.7 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 7% of catalog designs

Brain coverage density 136.7 sites/mm³ — higher than 93% of catalog designs and 77% of its family
6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

6-Shank 128-Channel Probe, 10 mmSKU prb_ahc--a6x21_poly2_10mm_50_200_160

Cited in 2,342 publications (product line)
