Neural Probes · A-Series (Polytrode & Tetrode)

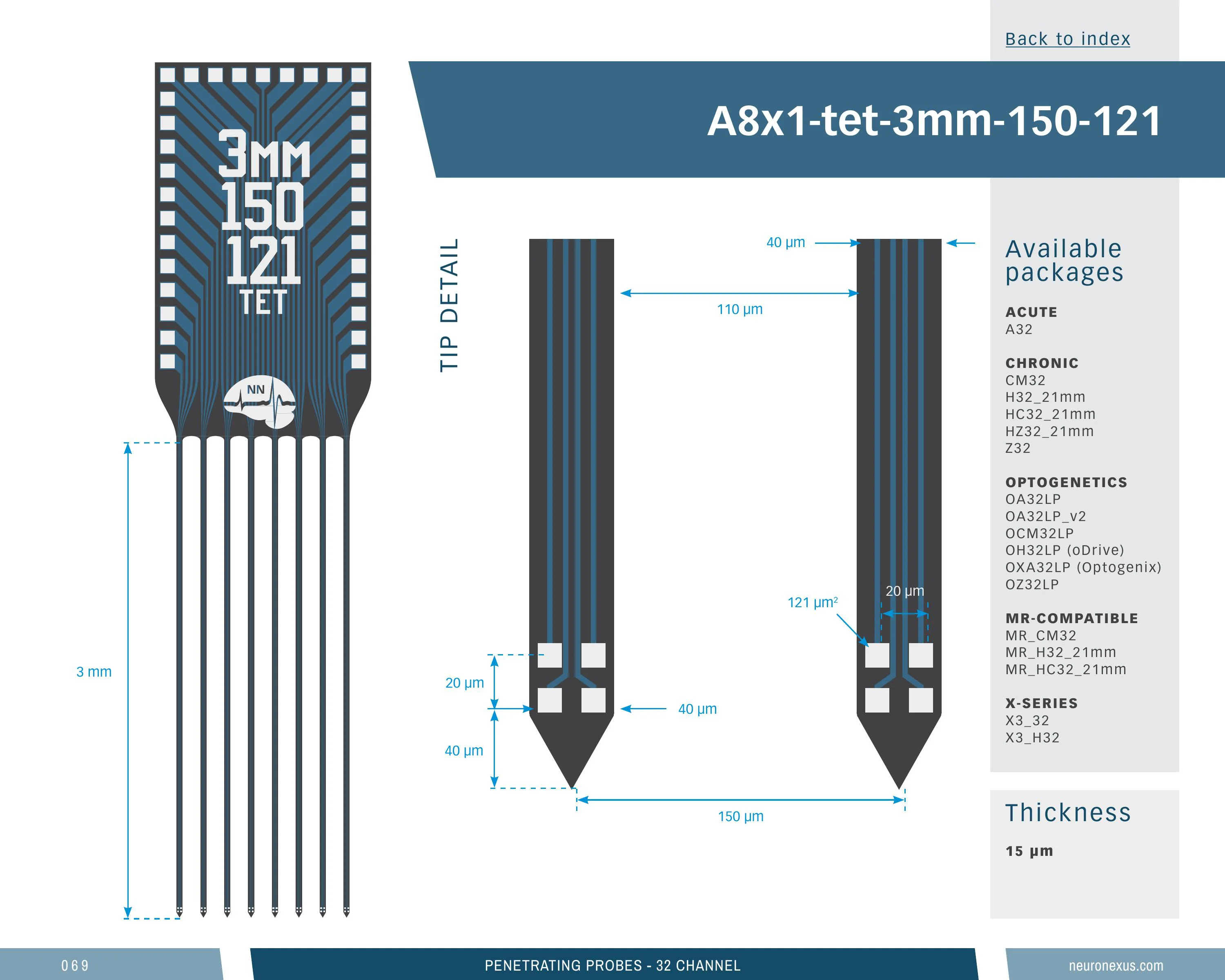

Tetrode 8-Shank 32-Channel Probe, 3 mm

32Sites
8Shanks
3mmShank Length
20µmSite Pitch
Part no.A8x1-tet-3mm-150-121
Contents

32-site A-Series polytrode/tetrode probe, 8 shanks

Eight short shanks side by side, closely spaced for coverage within one structure, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.03 mm-deep site array (3rd percentile), 955 sites/mm² (86th percentile) and a 0.42 mm³ neural interface (26th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a8x1_tet_3mm_150_121

Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

14 specs

Channels32
Shanks8
Shank length3 mm
Shank separation150 µm
Site layoutTetrode
Site area121 µm²
Site pitch20 µm
Vertical span31 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.420 mm³ (higher than 26% of 369 designs)
Site coverage density954.9 sites/mm² (higher than 86% of 369 designs)
Brain coverage density76.2 sites/mm³ (higher than 77% of 369 designs)
Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 8-shank silicon probe, 3 mm — 15 μm, CM32
CM32
Compatible Package: CM32 — 32-ch Omnetics
SKUprb_ahc--a8x1_tet_3mm_150_121.15um.cm32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

Loading the compatible products…

Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 56% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 99% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 12% of its family
Shank separation
0.15 mm
0.05 mm1.8 mm

Top 83% of catalog designs

Shank separation 0.15 mm — higher than 17% of catalog designs and 26% of its family
Maximum site depth
2.97 mm
0.972 mm51.29 mm

Top 81% of catalog designs

Maximum site depth 2.97 mm — higher than 19% of catalog designs and 12% of its family
Minimum site depth
2.93 mm
0.067 mm44.74 mm

Top 73% of catalog designs

Minimum site depth 2.93 mm — higher than 27% of catalog designs and 20% of its family
Span, x
1.08 mm
0.01 mm6.03 mm

Top 22% of catalog designs

Span, x 1.08 mm — higher than 78% of catalog designs and 85% of its family
Span, y
0.031 mm
0.01 mm10.55 mm

Top 97% of catalog designs

Span, y 0.031 mm — higher than 3% of catalog designs and 1% of its family
Site pitch, x
0.02 µm
0.012 µm0.57 µm

Top 43% of catalog designs

Site pitch, x 0.02 µm — higher than 57% of catalog designs and 57% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 59% of its family
Site outline area
0.034 mm²
0.002 mm²28.74 mm²

Top 79% of catalog designs

Site outline area 0.034 mm² — higher than 21% of catalog designs and 12% of its family
Neural interface volume
0.42 mm³
0.149 mm³17.19 mm³

Top 74% of catalog designs

Neural interface volume 0.42 mm³ — higher than 26% of catalog designs and 44% of its family
Site coverage density
954.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 14% of catalog designs

Site coverage density 954.9 sites/mm² — higher than 86% of catalog designs and 91% of its family
Brain coverage density
76.23 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 23% of catalog designs

Brain coverage density 76.23 sites/mm³ — higher than 77% of catalog designs and 40% of its family
Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 8-Shank 32-Channel Probe, 3 mmSKU prb_ahc--a8x1_tet_3mm_150_121

Cited in 2,342 publications (product line)
