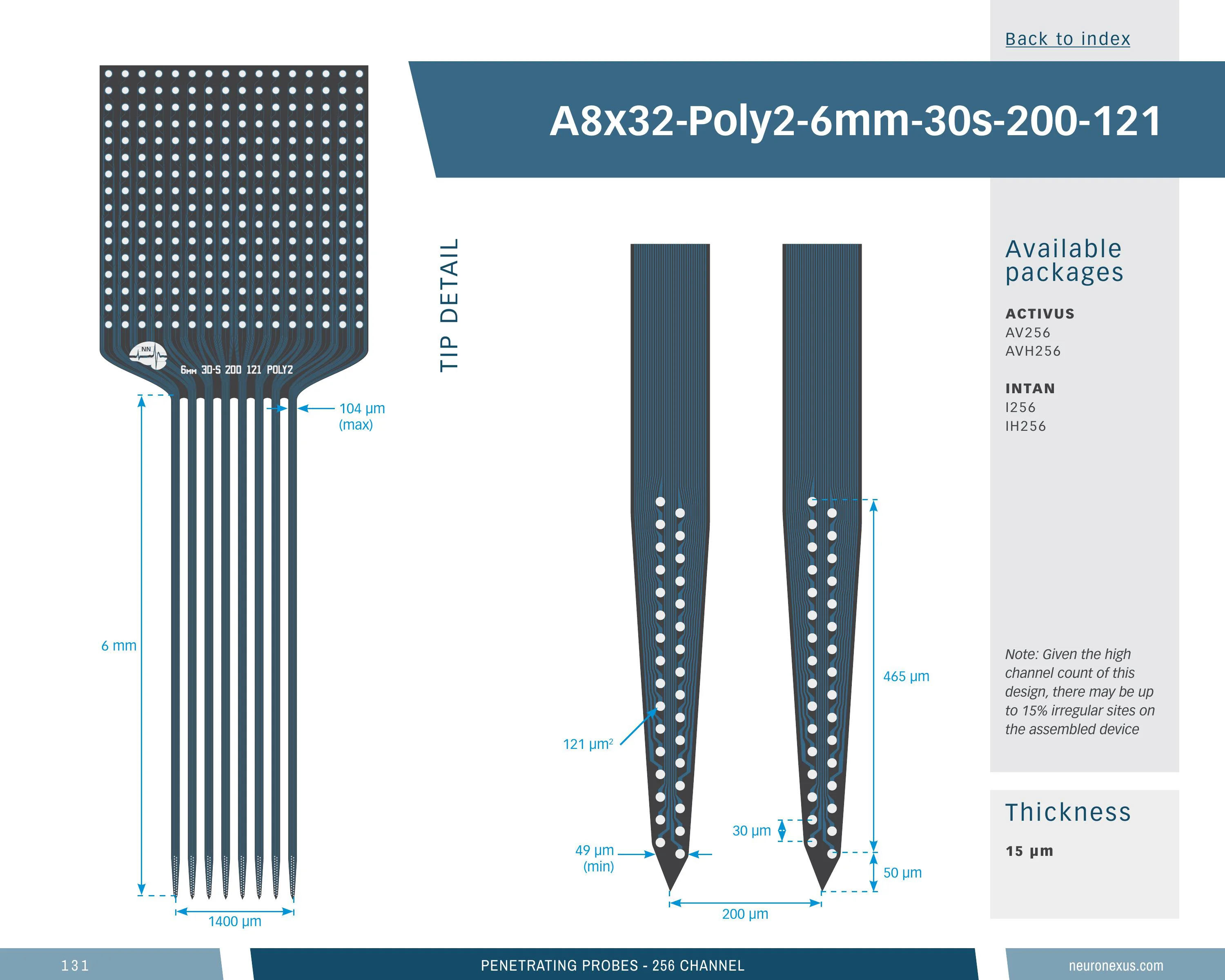

Neural Probes · A-Series (Polytrode & Tetrode)

8-Shank 256-Channel Probe, 6 mm

256Sites
8Shanks
6mmShank Length
15µmSite Pitch
Part no.A8x32-Poly2-6mm-30s-200-121
Contents

256-site A-Series polytrode/tetrode probe, 8 shanks, 6 mm, 121 µm²

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 6 mm shanks (61st percentile of the 366 measured), a 0.48 mm-deep site array (27th percentile), 373 sites/mm² (61st percentile) and a 0.95 mm³ neural interface (68th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x32_poly2_6mm_30s_200_121

8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

14 specs

Channels256
Shanks8
Shank length6 mm
Shank separation200 µm
Site layoutPoly2
Site area121 µm²
Site pitch15 µm
Vertical span477 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.947 mm³ (higher than 68% of 369 designs)
Site coverage density372.9 sites/mm² (higher than 61% of 369 designs)
Brain coverage density270.3 sites/mm³ (higher than 99% of 369 designs)
8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 6 mm — 15 μm, EMS256_R
EMS256_R
Compatible Package: EMS256_R — 256-ch
SKUprb_ahc--a8x32_poly2_6mm_30s_200_121.15um.ems256_r
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

Loading the compatible products…

8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 75 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 99% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 65% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 51% of its family
Maximum site depth
5.96 mm
0.972 mm51.29 mm

Top 45% of catalog designs

Maximum site depth 5.96 mm — higher than 55% of catalog designs and 56% of its family
Minimum site depth
5.48 mm
0.067 mm44.74 mm

Top 36% of catalog designs

Minimum site depth 5.48 mm — higher than 64% of catalog designs and 63% of its family
Span, x
1.44 mm
0.01 mm6.03 mm

Top 11% of catalog designs

Span, x 1.44 mm — higher than 89% of catalog designs and 89% of its family
Span, y
0.477 mm
0.01 mm10.55 mm

Top 73% of catalog designs

Span, y 0.477 mm — higher than 27% of catalog designs and 41% of its family
Site pitch, x
0.026 µm
0.012 µm0.57 µm

Top 31% of catalog designs

Site pitch, x 0.026 µm — higher than 69% of catalog designs and 67% of its family
Site pitch, y
0.015 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.015 µm — higher than 6% of catalog designs and 23% of its family
Site outline area
0.687 mm²
0.002 mm²28.74 mm²

Top 25% of catalog designs

Site outline area 0.687 mm² — higher than 75% of catalog designs and 83% of its family
Neural interface volume
0.947 mm³
0.149 mm³17.19 mm³

Top 32% of catalog designs

Neural interface volume 0.947 mm³ — higher than 68% of catalog designs and 85% of its family
Site coverage density
372.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 39% of catalog designs

Site coverage density 372.9 sites/mm² — higher than 61% of catalog designs and 55% of its family
Brain coverage density
270.3 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 1% of catalog designs

Brain coverage density 270.3 sites/mm³ — higher than 99% of catalog designs and 97% of its family
8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

8-Shank 256-Channel Probe, 6 mmSKU prb_ahc--a8x32_poly2_6mm_30s_200_121

Cited in 2,342 publications (product line)
