Neural Probes · A-Series (Polytrode & Tetrode)

8-Shank 256-Channel Probe, 7.5 mm

256Sites
8Shanks
7.5mmShank Length
12.5µmSite Pitch
Part no.A8x32-Poly2-7.5mm-25s-325-177
Contents

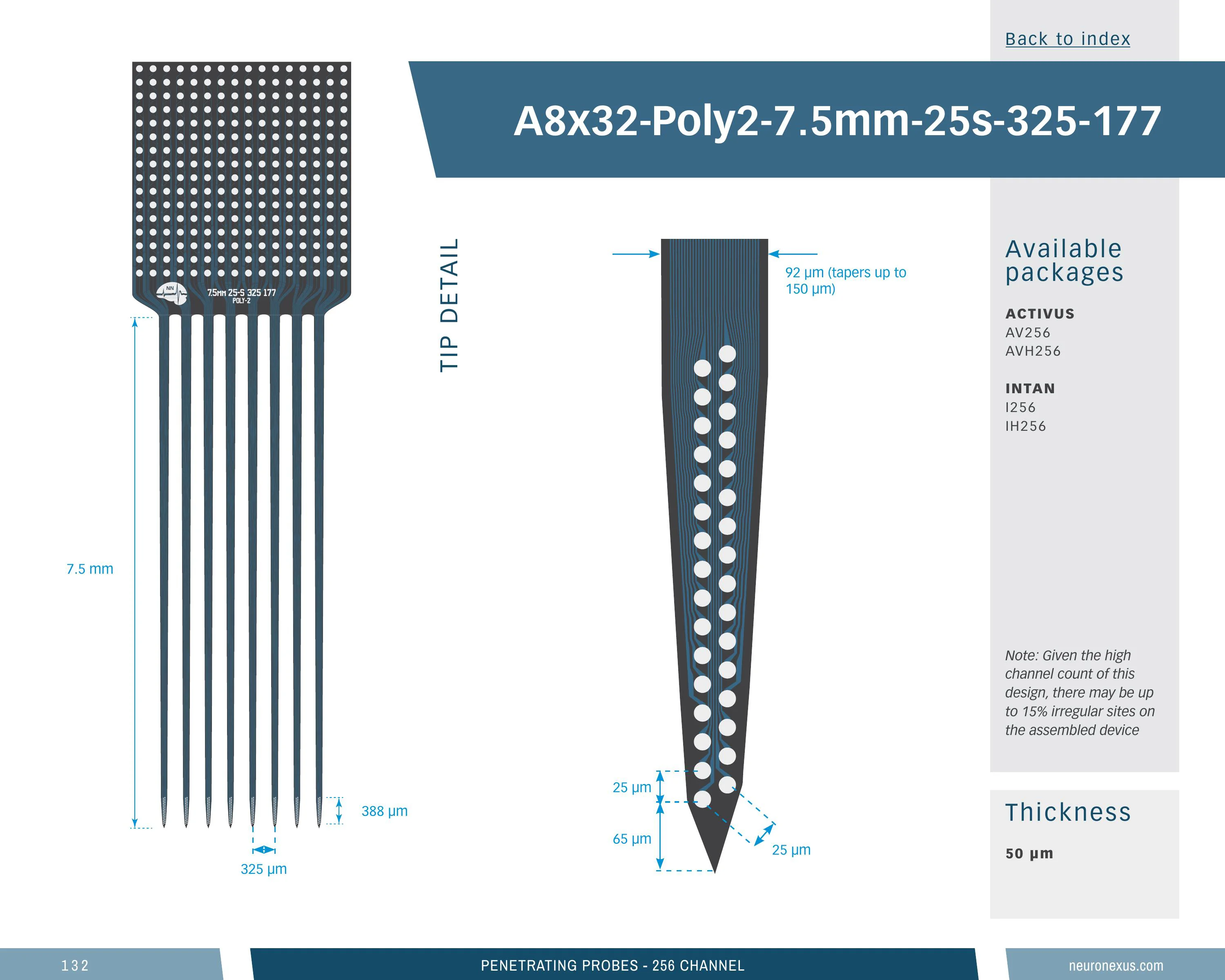

256-site A-Series polytrode/tetrode probe, 8 shanks, 7.5 mm

Eight long shanks side by side, spread for lateral coverage across columns, with sites staggered in two columns so neighbouring sites see the same units. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 7.5 mm shanks (65th percentile of the 366 measured), a 0.4 mm-deep site array (26th percentile), 275 sites/mm² (54th percentile) and a 1.27 mm³ neural interface (79th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 50 µm thick. Z-coat not available on this close-spaced poly layout. Research use only.

Also known as

a8x32_poly2_7.5mm25s_325_177

8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

14 specs

Channels256
Shanks8
Shank length7.5 mm
Shank separation325 µm
Site layoutPoly2
Site area177 µm²
Site pitch12.5 µm
Vertical span402 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.269 mm³ (higher than 79% of 369 designs)
Site coverage density275.2 sites/mm² (higher than 54% of 369 designs)
Brain coverage density201.8 sites/mm³ (higher than 97% of 369 designs)
8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 7.5 mm — 50 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_ahc--a8x32_poly2_7p5mm_25s_325_177.50um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

Loading the compatible products…

8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 75 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 99% of its family
Shank length
7.5 mm
1 mm60 mm

Top 35% of catalog designs

Shank length 7.5 mm — higher than 65% of catalog designs and 71% of its family
Shank separation
0.325 mm
0.05 mm1.8 mm

Top 22% of catalog designs

Shank separation 0.325 mm — higher than 78% of catalog designs and 91% of its family
Maximum site depth
7.44 mm
0.972 mm51.29 mm

Top 36% of catalog designs

Maximum site depth 7.44 mm — higher than 64% of catalog designs and 71% of its family
Minimum site depth
7.04 mm
0.067 mm44.74 mm

Top 27% of catalog designs

Minimum site depth 7.04 mm — higher than 73% of catalog designs and 75% of its family
Span, x
2.31 mm
0.01 mm6.03 mm

Top 2% of catalog designs

Span, x 2.31 mm — higher than 98% of catalog designs and 99% of its family
Span, y
0.402 mm
0.01 mm10.55 mm

Top 74% of catalog designs

Span, y 0.402 mm — higher than 26% of catalog designs and 40% of its family
Site pitch, x
0.022 µm
0.012 µm0.57 µm

Top 35% of catalog designs

Site pitch, x 0.022 µm — higher than 65% of catalog designs and 62% of its family
Site pitch, y
0.013 µm
0.01 µm1.5 µm

Top 94% of catalog designs

Site pitch, y 0.013 µm — higher than 6% of catalog designs and 19% of its family
Site outline area
0.93 mm²
0.002 mm²28.74 mm²

Top 19% of catalog designs

Site outline area 0.93 mm² — higher than 81% of catalog designs and 88% of its family
Neural interface volume
1.27 mm³
0.149 mm³17.19 mm³

Top 21% of catalog designs

Neural interface volume 1.27 mm³ — higher than 79% of catalog designs and 88% of its family
Site coverage density
275.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 46% of catalog designs

Site coverage density 275.2 sites/mm² — higher than 54% of catalog designs and 49% of its family
Brain coverage density
201.8 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 3% of catalog designs

Brain coverage density 201.8 sites/mm³ — higher than 97% of catalog designs and 93% of its family
8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

8-Shank 256-Channel Probe, 7.5 mmSKU prb_ahc--a8x32_poly2_7p5mm_25s_325_177

Cited in 2,342 publications (product line)
