Neural Probes · A-Series (Polytrode & Tetrode)

Tetrode 8-Shank 256-Channel Probe, 8 mm

256Sites
8Shanks
8mmShank Length
17.68µmSite Pitch
Part no.A8x8-tet-8mm-150-200-121
Contents

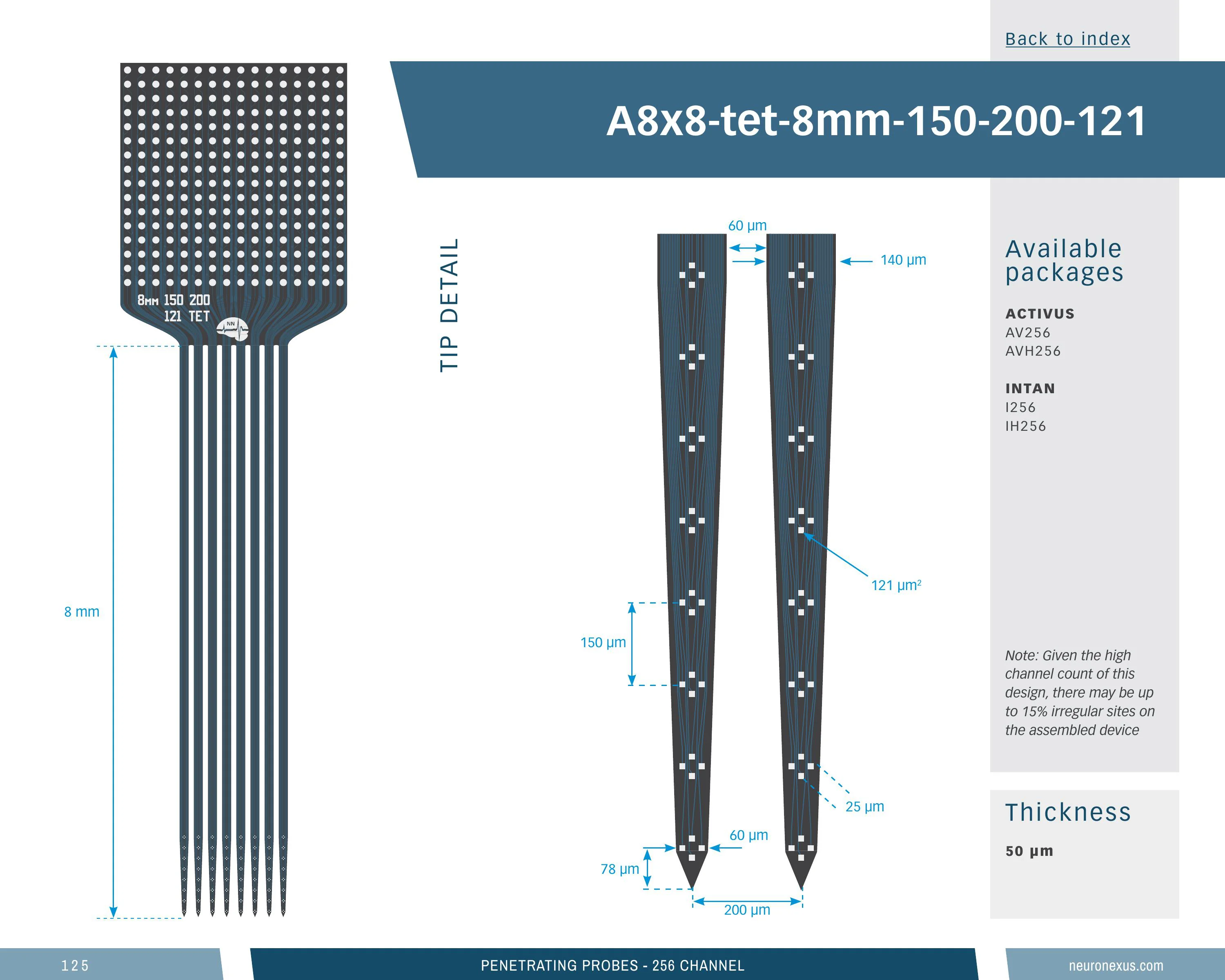

256-site A-Series polytrode/tetrode probe, 8 shanks, 8 mm

Eight long shanks side by side, closely spaced for coverage within one structure, with sites grouped in tetrodes at intervals, for unit isolation at set depths. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 8 mm shanks (68th percentile of the 366 measured), a 1.1 mm-deep site array (57th percentile), 161 sites/mm² (44th percentile) and a 1.55 mm³ neural interface (84th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

a8x8_tet_8mm_150_200_121

Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

14 specs

Channels256
Shanks8
Shank length8 mm
Shank separation200 µm
Site layoutTetrode
Site area121 µm²
Site pitch17.68 µm
Vertical span1096 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.554 mm³ (higher than 84% of 369 designs)
Site coverage density161.4 sites/mm² (higher than 44% of 369 designs)
Brain coverage density164.8 sites/mm³ (higher than 95% of 369 designs)
Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 8 mm — 50 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_ahc--a8x8_tet_8mm_150_200_121.50um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

Loading the compatible products…

Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

14 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 75 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 99% of its family
Shank length
8 mm
1 mm60 mm

Top 32% of catalog designs

Shank length 8 mm — higher than 68% of catalog designs and 79% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 51% of its family
Maximum site depth
7.95 mm
0.972 mm51.29 mm

Top 34% of catalog designs

Maximum site depth 7.95 mm — higher than 66% of catalog designs and 79% of its family
Minimum site depth
6.85 mm
0.067 mm44.74 mm

Top 29% of catalog designs

Minimum site depth 6.85 mm — higher than 71% of catalog designs and 73% of its family
Span, x
1.45 mm
0.01 mm6.03 mm

Top 11% of catalog designs

Span, x 1.45 mm — higher than 89% of catalog designs and 93% of its family
Span, y
1.1 mm
0.01 mm10.55 mm

Top 43% of catalog designs

Span, y 1.1 mm — higher than 57% of catalog designs and 77% of its family
Site pitch, x
0.018 µm
0.012 µm0.57 µm

Top 48% of catalog designs

Site pitch, x 0.018 µm — higher than 52% of catalog designs and 49% of its family
Site pitch, y
0.018 µm
0.01 µm1.5 µm

Top 85% of catalog designs

Site pitch, y 0.018 µm — higher than 15% of catalog designs and 53% of its family
Site outline area
1.59 mm²
0.002 mm²28.74 mm²

Top 13% of catalog designs

Site outline area 1.59 mm² — higher than 87% of catalog designs and 93% of its family
Neural interface volume
1.55 mm³
0.149 mm³17.19 mm³

Top 16% of catalog designs

Neural interface volume 1.55 mm³ — higher than 84% of catalog designs and 93% of its family
Site coverage density
161.4 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 56% of catalog designs

Site coverage density 161.4 sites/mm² — higher than 44% of catalog designs and 25% of its family
Brain coverage density
164.8 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 5% of catalog designs

Brain coverage density 164.8 sites/mm³ — higher than 95% of catalog designs and 84% of its family
Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

5 notes · Polytrode and tetrode are two ways to cluster · Site area is the isolation variable · Geometry …

Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

17 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Tetrode 8-Shank 256-Channel Probe, 8 mmSKU prb_ahc--a8x8_tet_8mm_150_200_121

Cited in 2,342 publications (product line)
